Lenze 9400 Series

3 Product description
3.4 Terminals and interfaces
14
Lenze · E94AYCET communication module (EtherCAT®) · Communication Manual · DMS 10.2 EN · 11/2018 · TD06
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
3.4 Terminals and interfaces

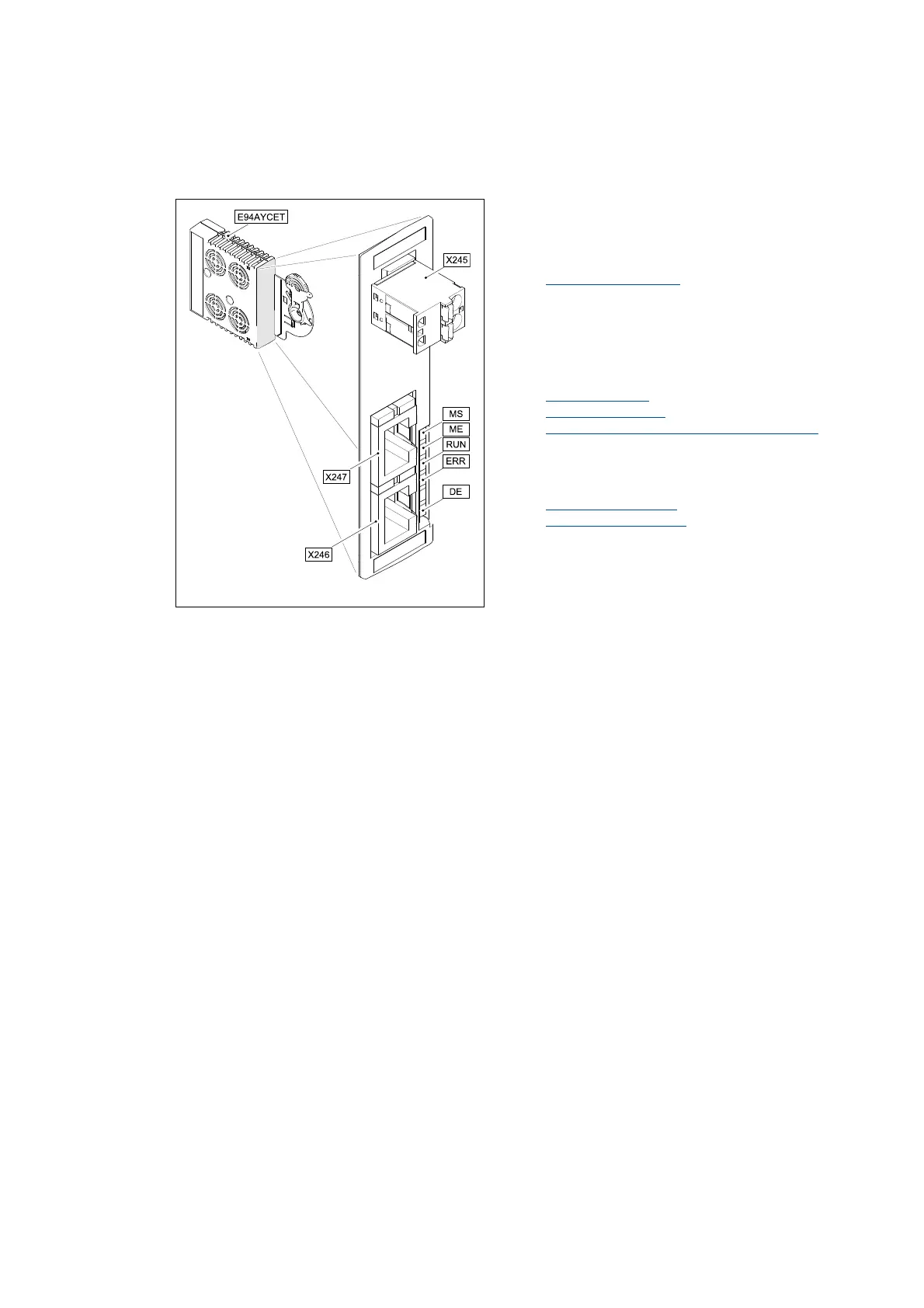

[3-2] E94AYCET communication module (EtherCAT)
E94YCET001B
X245 External voltage supply of the communication
module
2-pin plug connector with spring connection
External voltage supply
( 29)
X246 EtherCAT input (IN)
X247 EtherCAT output (OUT)
• RJ45 sockets
• each with 2 LED status displays for diagnostics
Network topology
( 25)
EtherCAT connection
( 26)
Status display at the RJ45 sockets (X246 / X247)
( 89)
MS
ME
RUN
ERR
EN
5 LED status displays for diagnostics
Module status displays
( 86)
EtherCAT status displays
( 87)
