2 Technical Data
2.4 Connections
2.4.1 Memory Module Connectors
The Memory Module Copier (MMC) accomodates 2 different memory module connectors as
listed in the table herein.
Memory Module Connectors
Product Module Connector Connector P/N Maximum
Copy Time
8400 Series
(except Baseline,
motec)
E84AYM10S 30s
Lenze AC Tech
Products;
8400 Baseline, motec
EPM 3-30s
2.4.2 USB Connector
The USB port is used for charging the rechargeable lithium ion battery only. The USB
connector is a Mini-B USB 5-pin connector. The USB port can be connected to the power
supply or to a PC-USB port in order to charge the battery. Data communication is not
supported between the USB port and a PC-USB port.

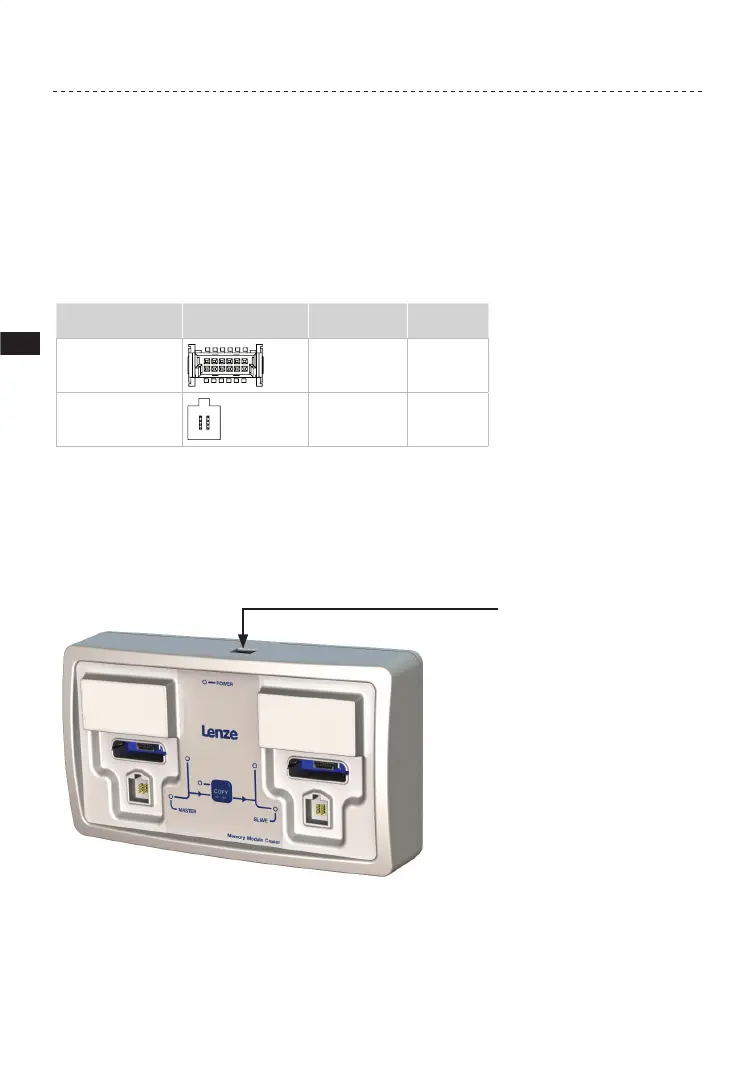

Figure 4: Location of USB connector
USB Port
