8 Process data transfer
8.3 Free configuration of the port interconnection of process data objects (PDO)
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

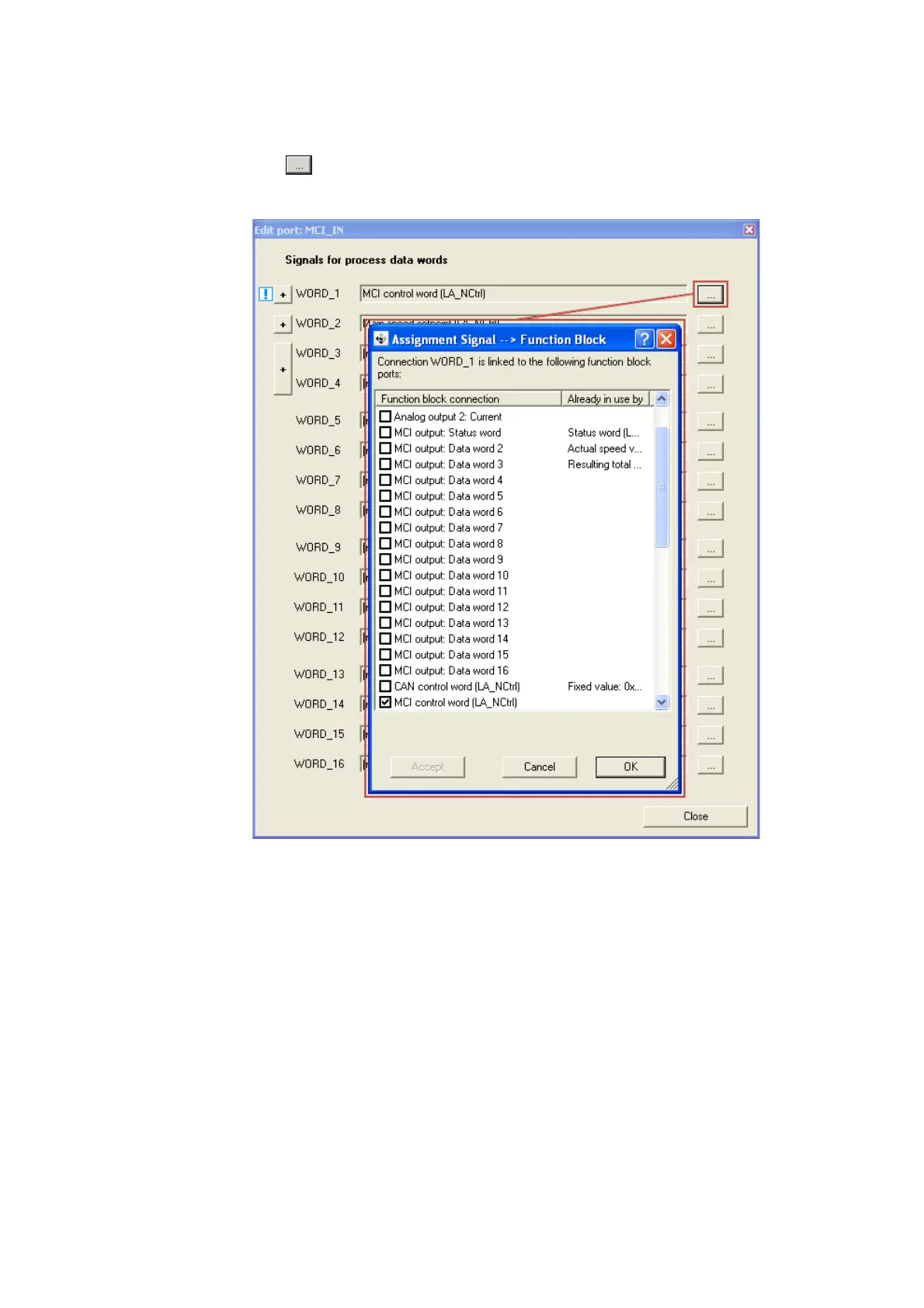

4. Via the button, you can assign signals to the process data words in the Assignment
Signal --> Function Block dialog box.
 Select the signals and then confirm the selection with OK.
