Lenze Tmd - Installation; Mechanical Installation; Dimensions and Mounting Details

7
ENGLISH
Installation
Tmd002
Type
a
[mm]
a1
[mm]
b
[mm]
b1
[mm]
b2
[mm]
c
[mm]
s1
[mm]
s2
[mm]
m
[kg]
ETMD371L2YXA 93 84 146 128 17 100 15 50 0.6
ETMD551L2YXA, ETMD751L2_XA
(1)
93 84 146 128 17 120 15 50 0.9
ETMD112L2TXA 93 84 146 128 17 146 15 50 1.1
ETMD112L2YXA
ETMD371L4TXA...ETMD112L4TXA
114 105 146 128 17 133 15 50 1.4
ETMD152L2_XA
(1)
ETMD152L4TXA
114 105 146 128 17 171 15 50 1.9
ETMD222L2_XA
(1)
, ETMD402L2TXA
ETMD222L4TXA...ETMD402L4TXA
114 105 146 100 17 171 15 50 2.0
ETMD552L2TXA, ETMD752L2TXA
ETMD552L4TXA, ETMD752L4TXA
146 137 197 140 17 182 30 100 3.4
WARNING!
Drives must not be installed where subjected to adverse environmental conditions
such as: combustible, oily, or hazardous vapors or dust; excessive moisture; excessive
vibration or excessive temperatures. Contact Lenze for more information.
(1) “_” = Y or T; the dimensions are the same for either model.
3 Installation
3.1 Mechanical installation

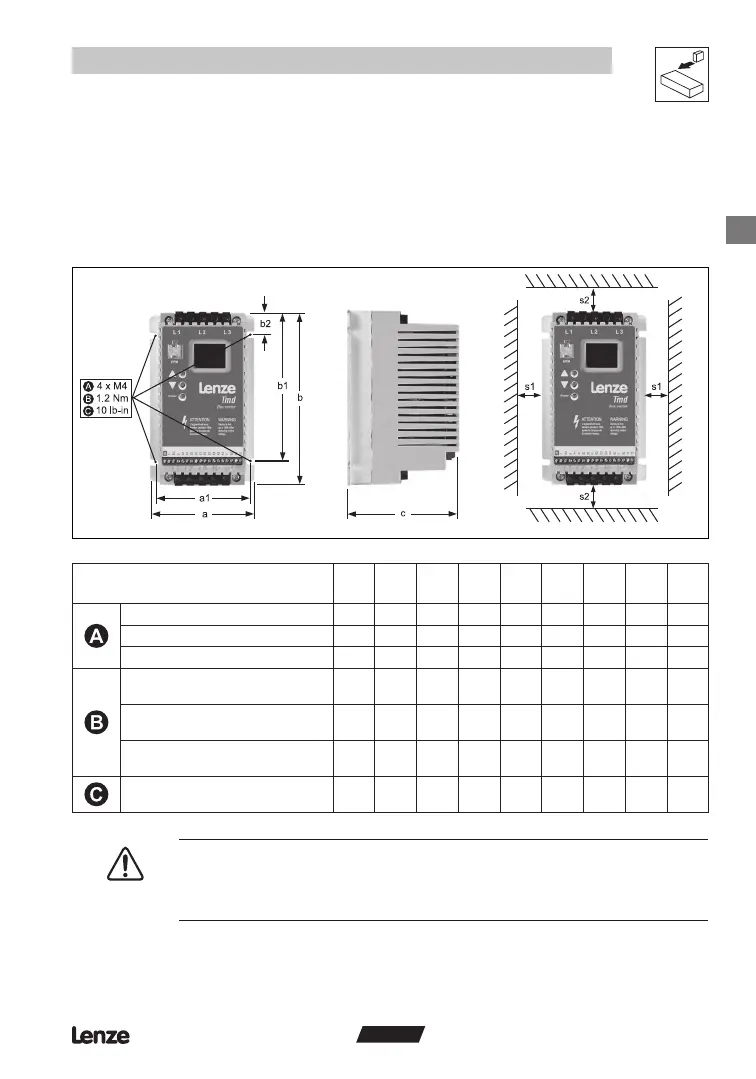

3.1.1 Dimensions and mounting
