Lenze Tmd - Electrical Installation; Installation according to EMC Requirements; Fuses and Cable Cross-Sections

8
ENGLISH
Installation
Type
Installation to EN 60204-1 Installation to UL
E.l.c.b.
(2)
Fuse
Miniature
circuit
breaker
L1, L2, L3, PE
[mm²]
Fuse
(3)
L1, L2, L3, PE
[AWG]
1/N/PE
ETMD371L2YXA, ETMD551L2YXA M10 A C10 A 1.5 10 A 14
> 30 mA
ETMD751L2YXA M16 A C16 A 2.5 15 A 14
ETMD112L2YXA M20 A C20 A 2.5 15 A 12
ETMD152L2YXA M25 A C25 A 2.5 20 A 12
ETMD222L2YXA M30 A C30 A 4.0 30 A 10
3/PE
ETMD371L2YXA...ETMD112L2_XA
(4)
M10 A C10 A 1.5 10 A 14
ETMD152L2_XA
(4)
M16 A C16 A 1.5 12 A 14
ETMD222L2_XA
(4)
M16 A C16 A 2.5 15 A 12
ETMD402L2TXA M25 A C25 A 4.0 25 A 10
ETMD552L2TXA M40 A C40 A 6.0 35 A 8
ETMD752L2TXA M50 A C50 A 10 45 A 8
ETMD371L4TXA...ETMD222L4TXA M10 A C10 A 1.5 10 A 14
ETMD302L4TXA M16 A C16 A 1.5 12 A 14
ETMD402L4TXA M16 A C16 A 2.5 15 A 14
ETMD552L4TXA M20 A C20 A 2.5 20 A 12
ETMD752L4TXA M25 A C25 A 4.0 25 A 10
(1) Observe the applicable local regulations
(2) Pulse-current or universal-current sensitive earth leakage circuit breaker
(3) UL Class CC or T fast-acting current-limiting type fuses, 200,000 AIC, required. Bussman KTK-R, JJN, JJS, or equivalent
(4) “_” = Y or T; the ratings are the same for either model with 3/PE input

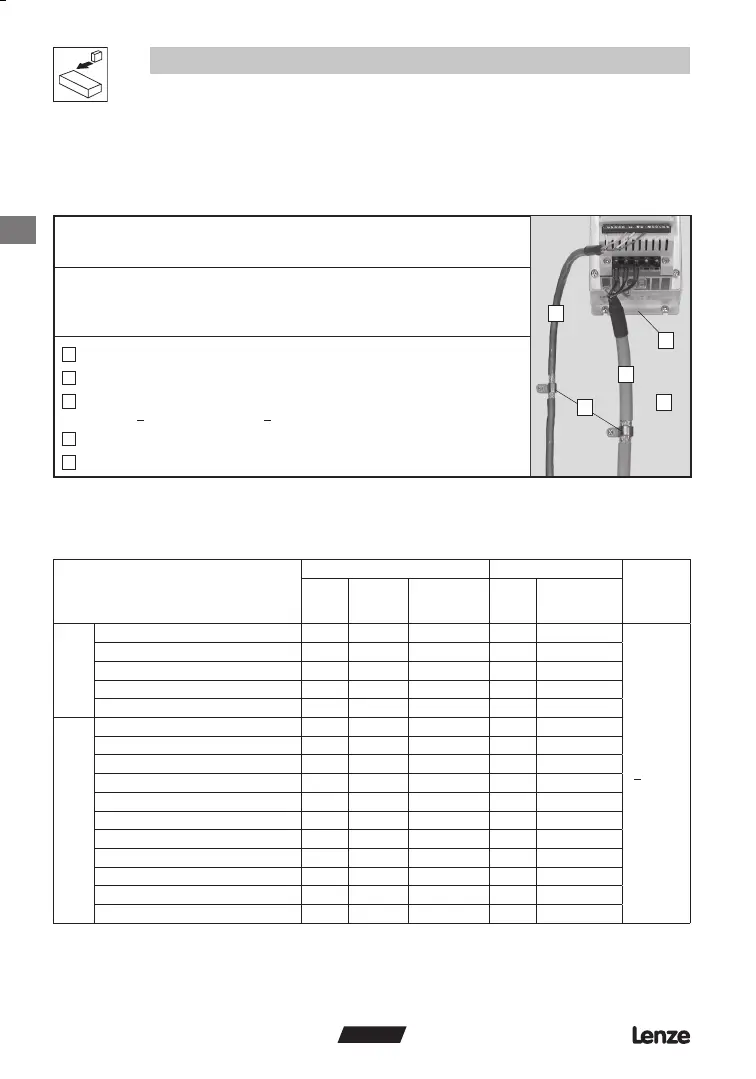

EMC
Compliance with EN 61800-3/A11
Noise emission
Compliance with limit value class A according to EN 55011 if installed in a control
cabinet with the appropriate footprint filter and the motor cable length does not exceed
10m
A
Screen clamps
B
Control cable
C
Low-capacitance motor cable
(core/core < 75 pF/m, core/screen < 150 pF/m)
D
Electrically conductive mounting plate
E
Filter
Tmd005
B
C
D
A
E
3.2.2 Fuses/cable cross-sections
3.2 Electrical installation
3.2.1 Installation according to EMC requirements
(1)
