Levitronix BPS-300 User Manual

User Manual for BPS-300
www.levitronix.com
PL-4006-00, Rev07, DCO# 20-144
8
Cable
Jacket
Cable OD
Motor Sensor
Cable OD
Motor Power
Minimum Bending Radius
Permanent Installation
Minimum Bending Radius
Sometimes Moved
FEP
6.60 mm
8.40 mm
7x Cable OD
15 x Cable OD
PVC
7.20 mm
11.1 mm
5x Cable OD
11 x Cable OD
Table 5: Specifications for min. bending radius of motor and adaptor cables
Note: If not mentioned explicitly all the cables are not suited for constant dynamic bending and movement!

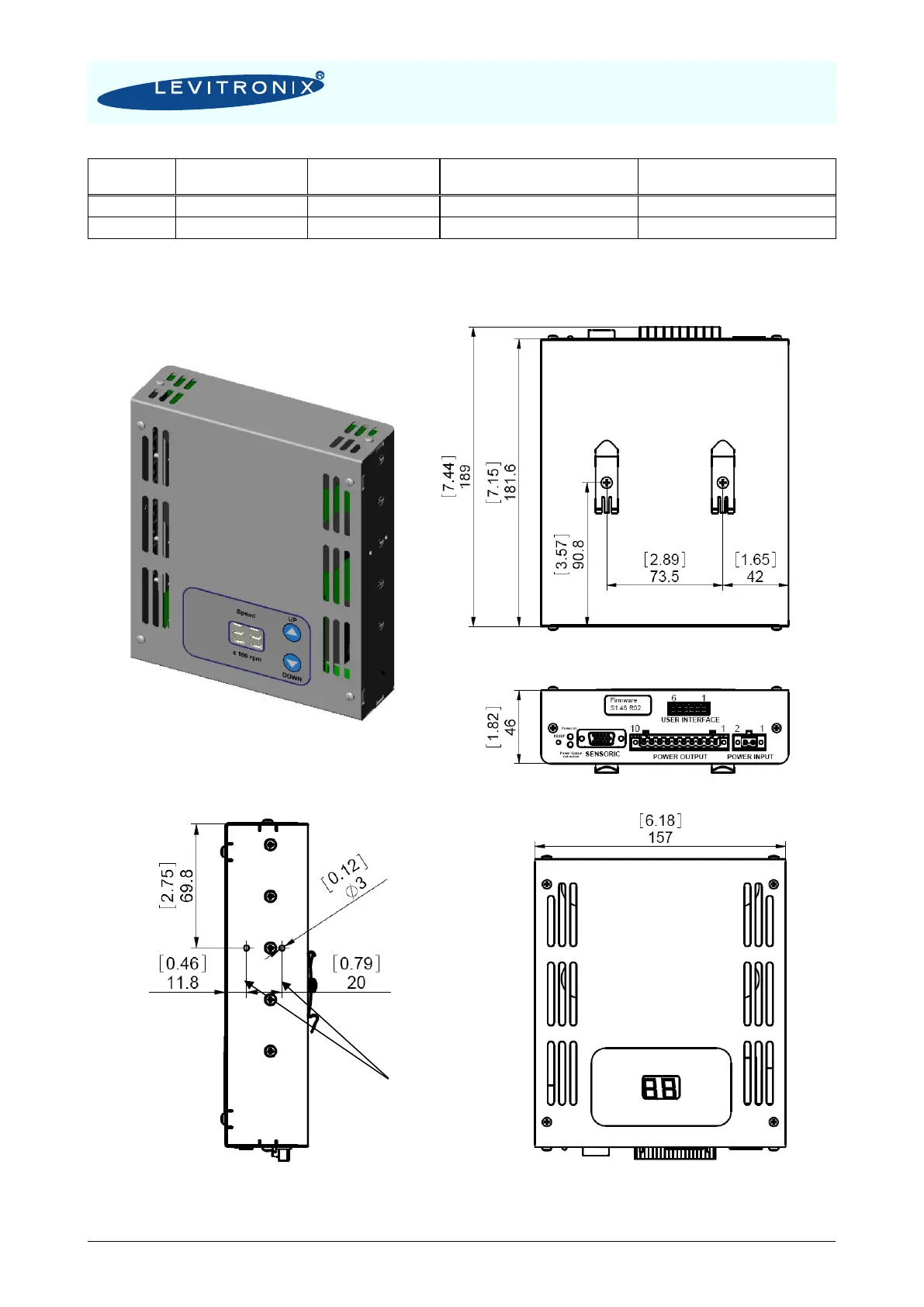

Figure 5: Basic dimensions (in mm and [inch]) of controller LPC-300.1
Alternative for
mounting DIN
rail clips
Clips for DIN 35 bus

Levitronix BPS-300 Specifications

General

Brand	Levitronix
Model	BPS-300
Category	Water Pump
Language	English
