2 Specifications
2.1 System Overview and General Specification

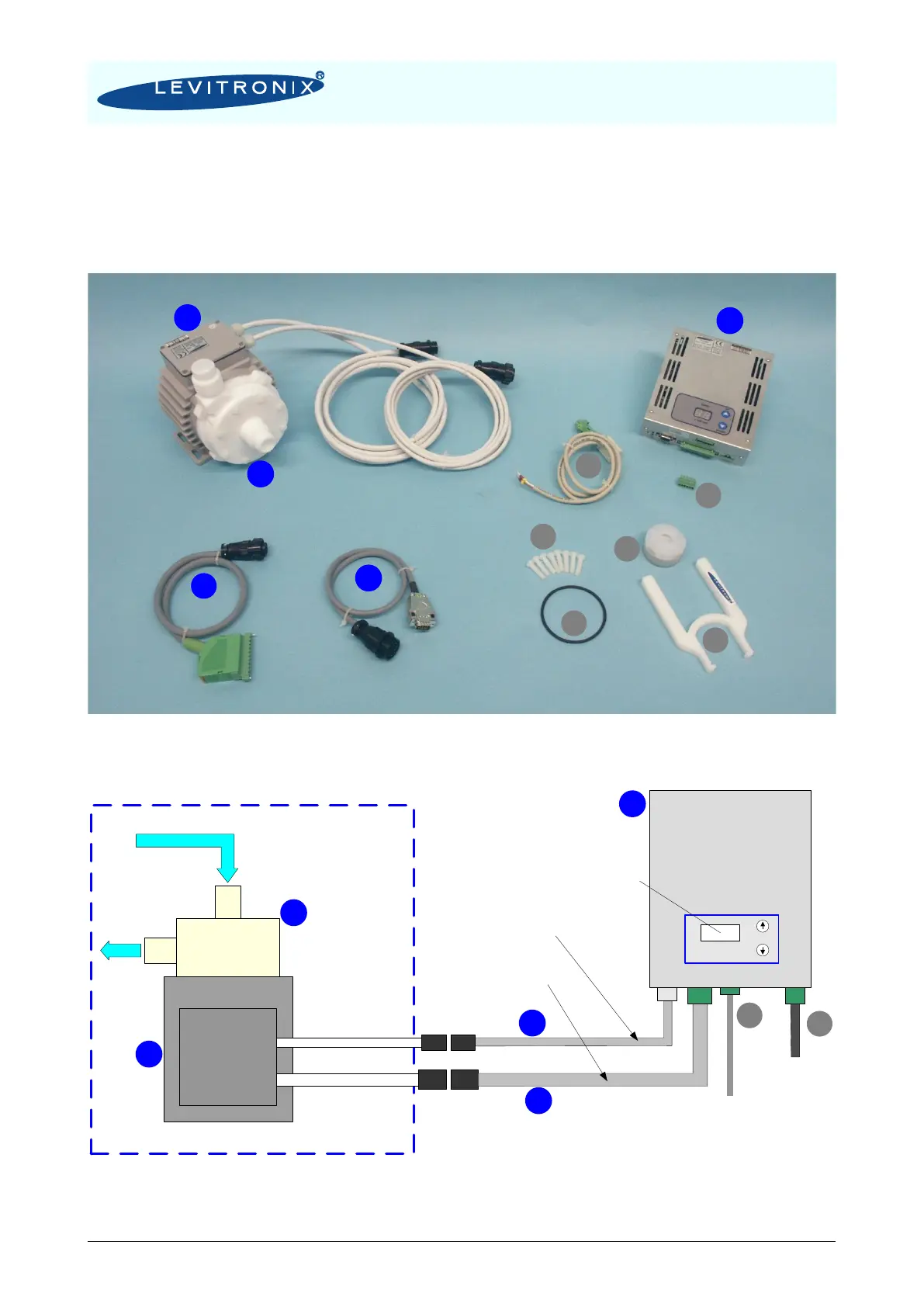

Figure 1 and Figure 2 shows the mayor components of the BPS-300 pump system. The standard
configuration consists of a controller with an integrated user panel to set the speed manually.
Figure 1: Pump system BPS-300 with components
Figure 2: System configuration
(Speed setting with integrated user panel)
Chemical Resistance and IP67 Space
Pump Head
Motor
Fluid In
Fluid Out
Controller
for
Standalone
Operation
Motor Sensor Cable
Motor Power Cable
Power Supply:
48V DC / 300 W
Stand Alone
Operation
Speed Control
Adaptor/Extension
Cable for Sensors
Adaptor/Extension
Cable for Power
PLC Interface
Speed Setting
- 1x Digital Input (Enable)
- 1x Digital Output (Status)
- 1x Analog Input (Speed)
To Next Page
