Levitronix BPS-300 - Pressure-Flow Characteristics; Environmental Conditions

User Manual for BPS-300
www.levitronix.com
PL-4006-00, Rev07, DCO# 20-144
6

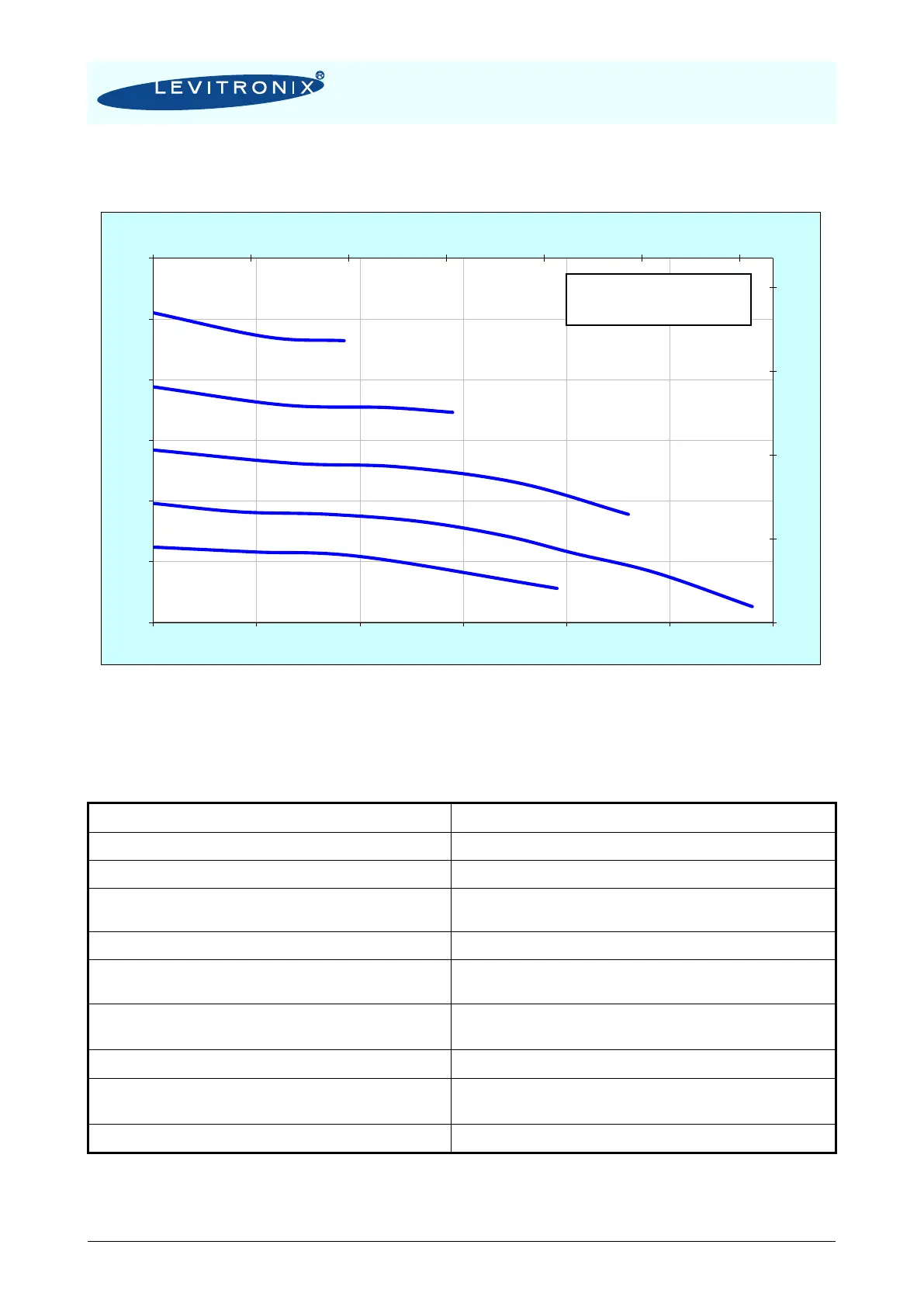

2.2 Pressure-Flow Curves
Figure 3: Pressure/flow rate charts
2.3 General Environmental Conditions
Usage
Indoor
1
Altitude
Up to 2000 m
Operating ambient temperature
0 to 40 °C
Storage ambient temperature
(Extremes for Transportation)
-20 to 80 °C
Operating humidity range (relative humidity)
15 – 95% (non-condensing)
Storage humidity range (relative humidity)
(Extremes for Transportation)
15 – 95% (non-condensing)
Normal storage conditions
Ambient temp.: 20 to 30 °C
Relative humidity: 50% (non-condensing)
DC supply fluctuations
 5% of nominal voltage
Transient over-voltages typically present on
the mains supply
Surge immunity according to EN 61000-4-5
(tested together with certified AC/DC power supply)
Pollution degree
2
Table 4: Environmental conditions for pump system
Note 1: Contact Levitronix
®
technical department (see Section 8) for outdoor usage.
0
10
20
30
40
0.0 2.5 5.0 7.5 10.0 12.5 15.0
0.0
0.5
1.0
1.5
2.0
2.5
3.0
0 10 20 30 40 50 60
[psi]
[gallons/min]
[bar]
[liters/min]
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
8000 rpm
7000 rpm
6000 rpm
5000 rpm
4000 rpm
