2.5.2 Dimensions of Converters

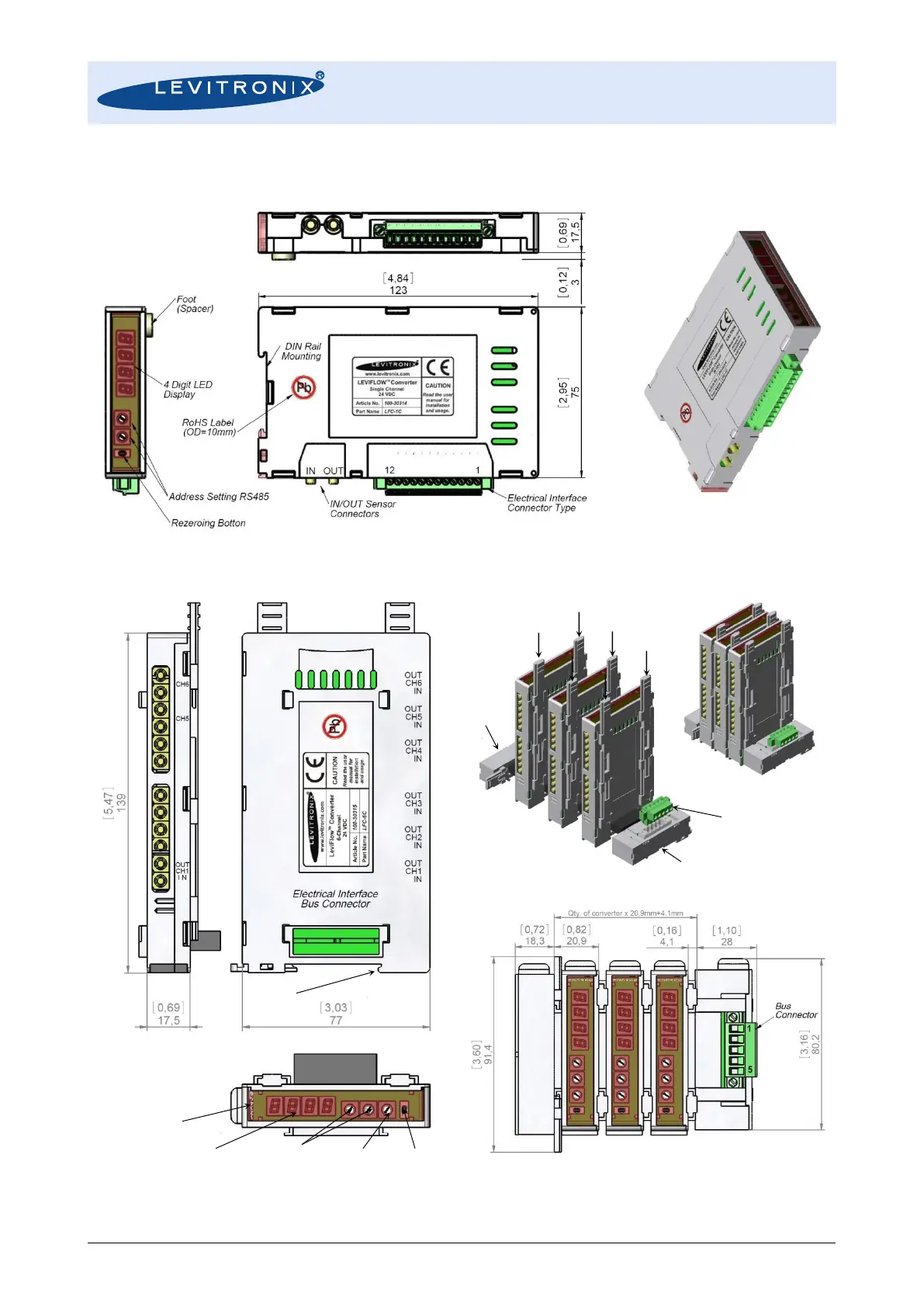

Figure 10: Dimensions and layout of interfaces of single channel converter LFC-1C / LFC-1C-F4
Figure 11: Dimensions, mounting and stacking concept for LFC-6C
Connector Box
(RS485 and Supply Bus)
Termination Box
(for RS485)
Bus Connector
Re-Zeroing
Botton
Display
Select
Address Setting
for RS485
4 Digit LED
Display
DIN Rail
Interface
Status LED
Channel #1-6
