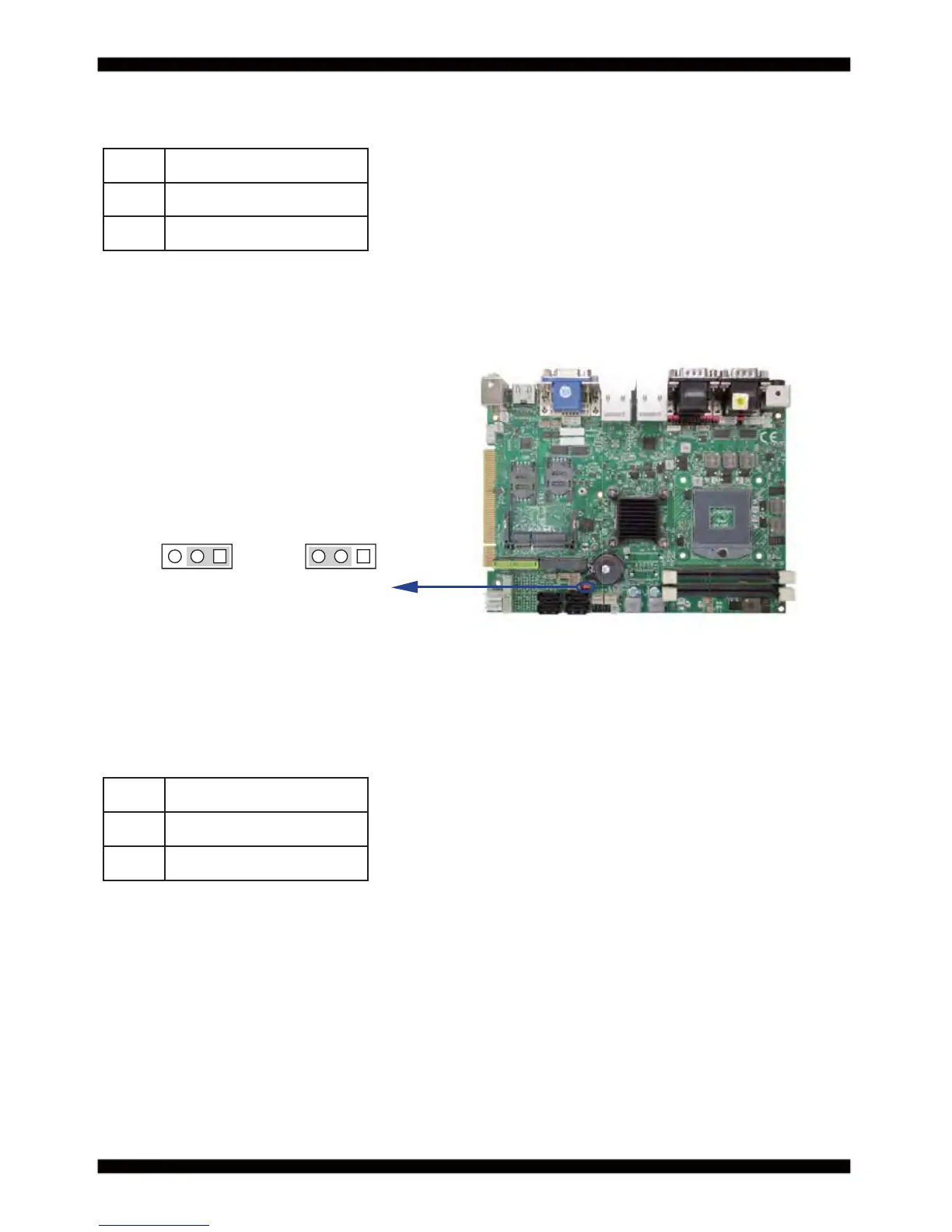

2-15 JVU14: USB Port 14 Voltage select
Note : Attention ! Check Device Power in spec.
JVU14
113322
+3.3V
JDS1: DPC Duty set
JVU14 Description
1-2
+5V
2-3
+3.3V
*
+5V
*
2-16 JSD1: DPC Duty set
Note : for Panel backlight dimming default active set
JSD1 DESCRIPION
1-2
Low 0% (Low level)
2-3
Hi 100% (3.3V level)
*
