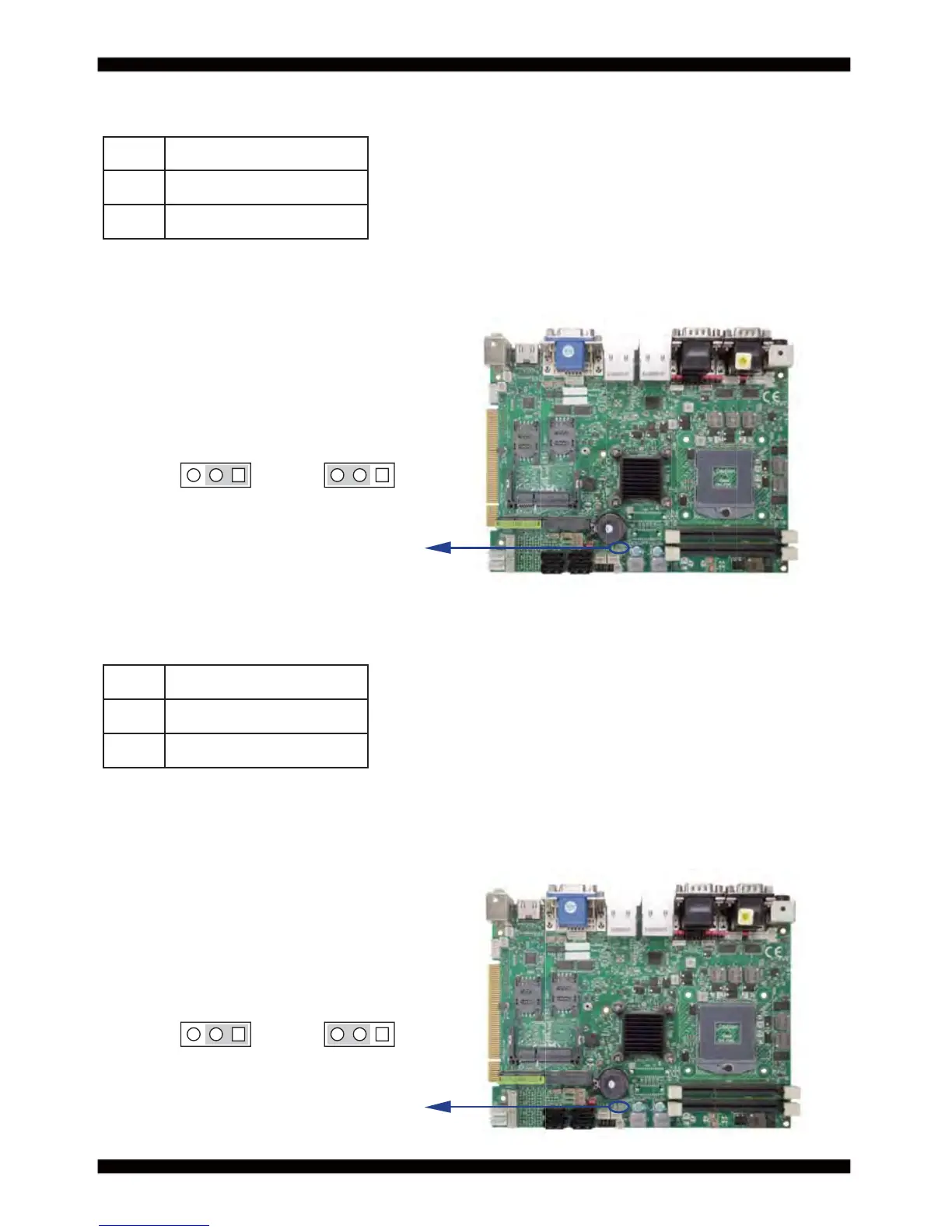

2-13 JVL1: LVDS panel power select
2-14 JVP1: LVDS panel Inverter power select
Note : Attention ! Check Device Power in spec.
JVL1 For eDP and LVDS panel power setting
Note : Attention ! Check Device Power in spec.
JVL1 Description
1-2
+5V
*2-3
+3.3V
JVP1 Description
1-2
+12V
*2-3
+5V
JVL1
JVP1
1
1
1
1
3
3
3
3
2
2
2
2
+5V
+5V
*+3.3V
*+3.3V
