40

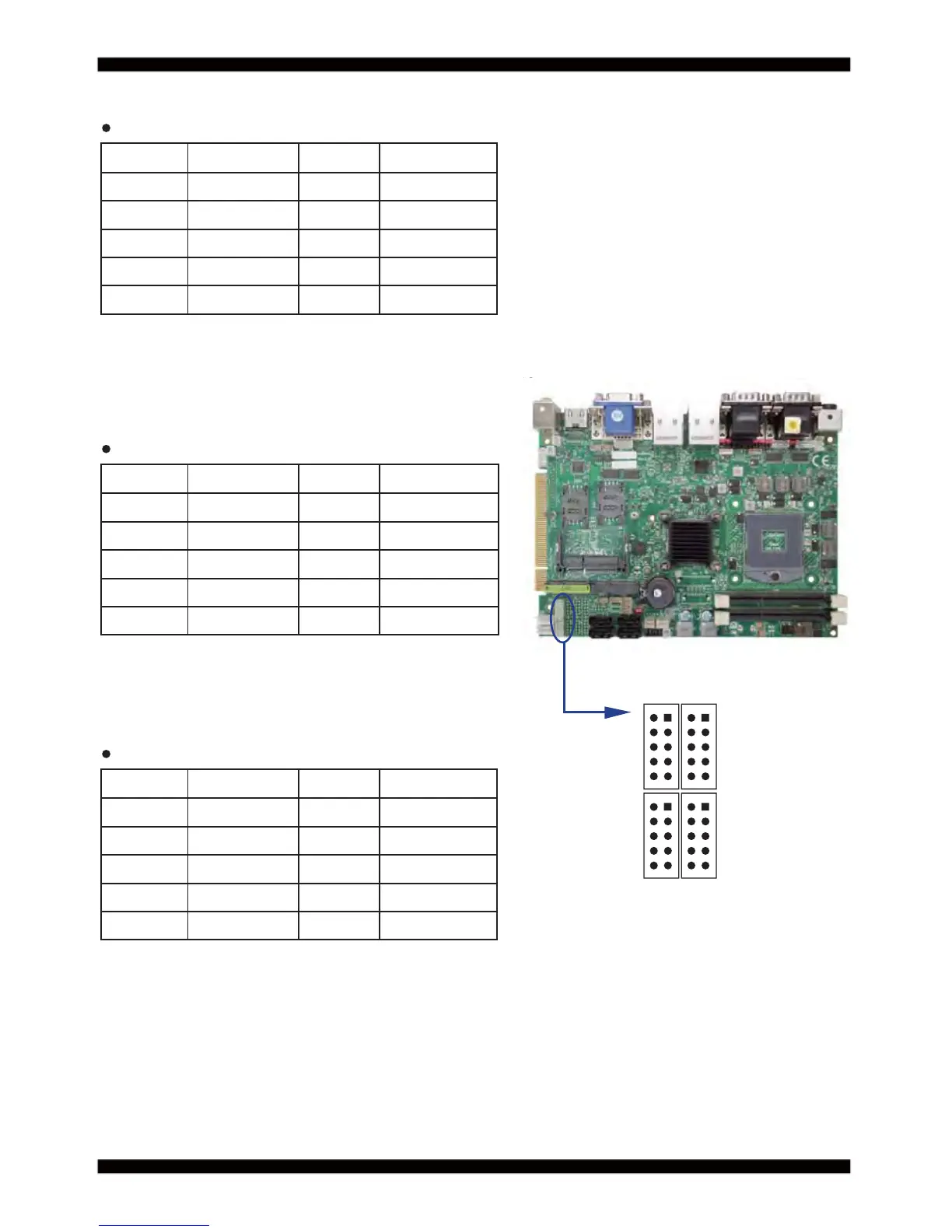

CIO1 DIO 0 ~ 3 (2x5pin 2.0mm wafer)
PIN NO. Description PIN NO. Description
1 DI-0 2 DO-3
3 DI-1 4 DO-2
5 DI-2 6 DO-1
7 DI-3 8 DO-0
9 GND 10 +5V
3-12 Digital Input / Output
Note: 1. The system default 8DI and 8DO
2. DI pin default pull up 10KΩ to +5V
3. If use need isolate circuit to control external device
4. F75111N-1 I C bus address 0x9c
2
CIO2 DIO 4 ~ 7 (2x5pin 2.0mm wafer)
CIO3 DIO 8 ~ 11 (2x5pin 2.0mm wafer) (option)
PIN NO. Description PIN NO. Description
1 DI-4 2 DO-7
3 DI-5 4 DO-6
5 DI-6 6 DO-5
7 DI-7 8 DO-4
9 GND 10 +5V
PIN NO. Description PIN NO. Description
1 DI-8 2 DO-11
3 DI-9 4 DO-10
5 DI-10 6 DO-9
7 DI-11 8 DO-8
9 GND 10 +5V
Note: 1. The system default 8DI and 8DO
2. DI pin default pull up 10KΩ to +5V
3. If use need isolate circuit to control external device
4. F75111N-1 I C bus address 0x9c
2
Note: 1. CIO3 is option function
2. DI pin default pull up 10KΩ to +5V
3. If use need isolate circuit to control external device
4. F75111N-2 I C bus address 0x6e
2
