CO1: I C (SM) bus connector (4 pin 1.25mm wafer)
CKM1: KB/MS port (1 X 6 pin 1.25mm wafer)
3-13 I C Bus Interface
2
3-14 PS2 KB/MS
PIN NO. 1 2 3 4
Description +3.3V GND SMB_CLK SMB_DATA
PIN NO. 1 2 3 4 5 6
Description +5V KB/DAT KB/CLK GND MS/DAT MS/CLK
2

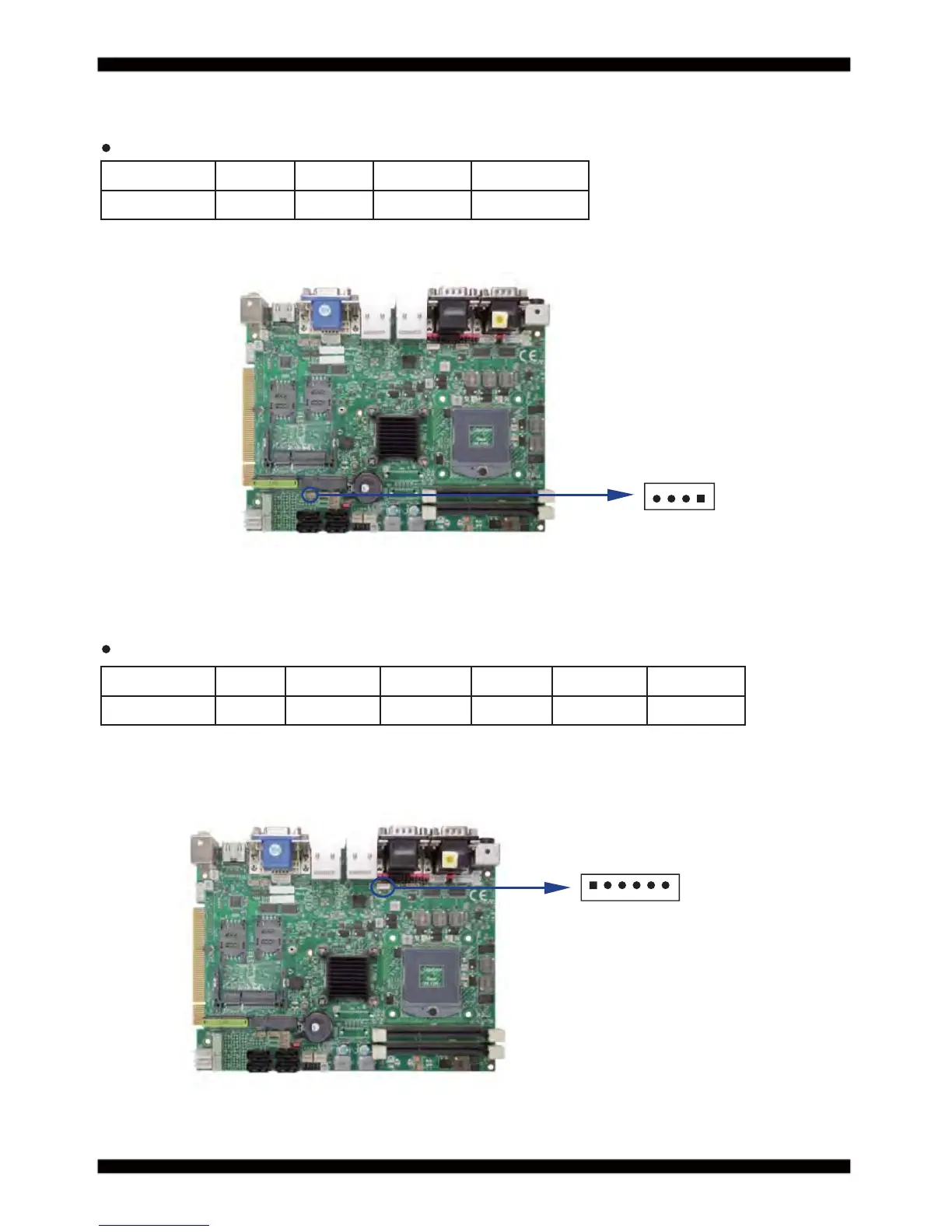

CO1
CKM1
pin1
pin1
