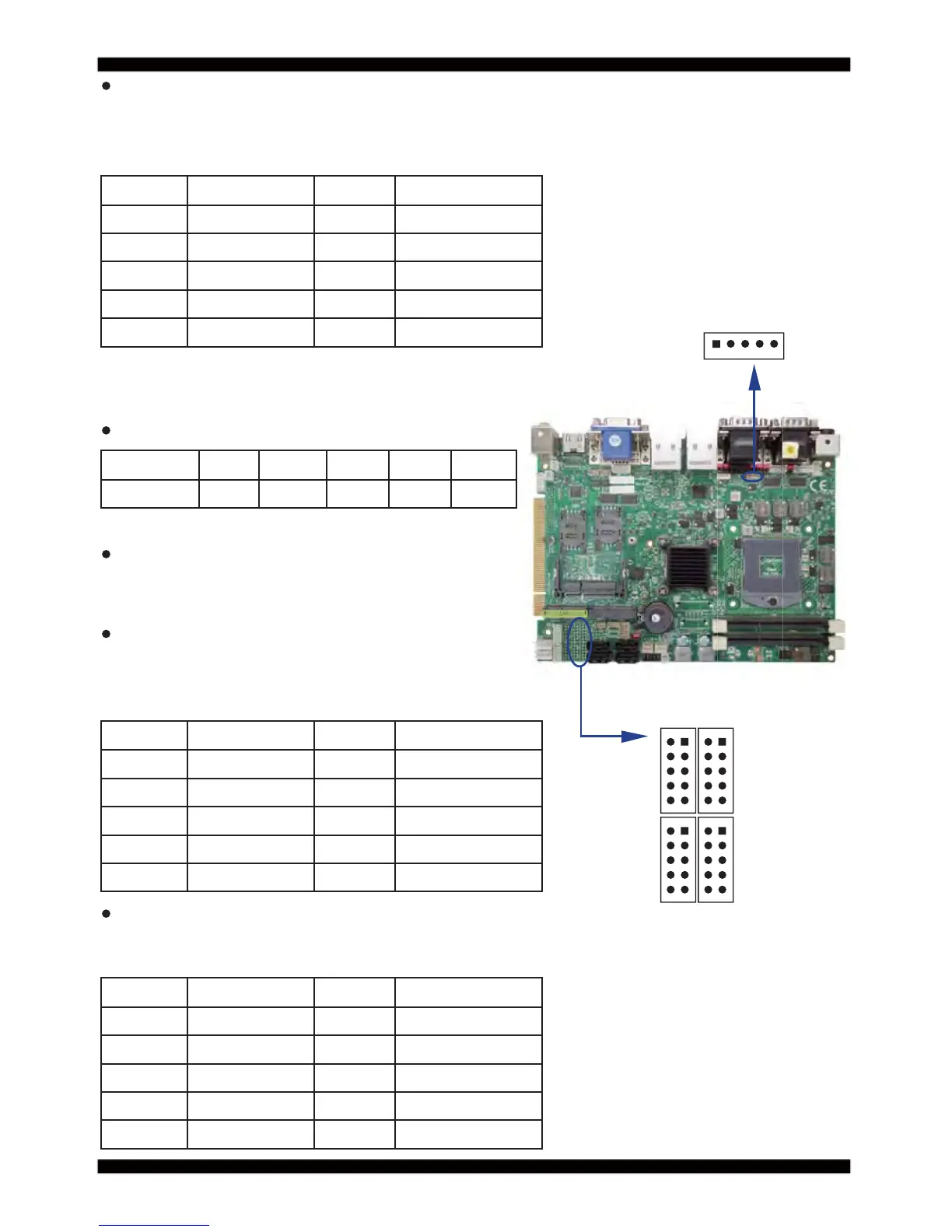

RS422 mode ports (2 X 5 pin 2.0mm wafer)
COM ports from (PLX OXPCIe954)
RS232 ports (2x5pin 2.0mm Wafer)
COM ports from (PLX OXPCIe954)
RS485 ports (2x5pin 2.0mm Wafer)
CC13: COM1 RS232 port (5pin 1.25mm Wafer)
PIN NO. Description PIN NO. Description
1 RS422 TX- 2 RS422 TX+
3 RS422 RX+ 4 RS422 RX-
5 GND 6 NC
7NC 8NC
9 RI / Voltage 10 NC
PIN NO. Description PIN NO. Description
1 DCD 2 RXD
3 TXD 4 DTR
5 GND 6 DSR
7 RTS 8 CTS
9 RI / Voltage 10 +5V
PIN NO. Description PIN NO. Description
1 RS485 TX- 2 RS485 TX+
3NC 4NC
5 GND 6 NC
7NC 8NC
9 RI / Voltage 10 +5V
PIN NO. 1 2 3 4 5
Description +5V GND RTS TXD RXD
Note: 1. CC11, CC21 share with CC12 connector for OEM
2. CC31, CC41 share with CC34 connector for OEM
3. The Pin 9 Voltage set by JVC1/2/3/4/5/6
Note: All signals are RS232 level.
CC9
CC10
CC7
CC8
pin1
pin1
10
10
CC11: COM1 CC21 : COM2
CC31: COM3 CC41 : COM4
CC5: COM5 CC6 : COM6
COM7/8/9/10 default support RS232 mode
COM7/8/9/10 is option for OEM.
CC7: COM7 CC8 : COM8
CC9: COM9 CC10 : COM10
CC7: COM7 CC8 : COM8
CC9: COM9 CC10 : COM10
CC13
pin1
