35
For 5- wire type pin defi ne
PIN NO. Description PIN NO. Description
1 UR(H) 2 N/A
3 Sense 4 UL(Y)
5 LR(X) 6 N/A
7 LL(L) 8 N/A
9 GND 10 KEY
Note:1. Touch controller use USB port 9

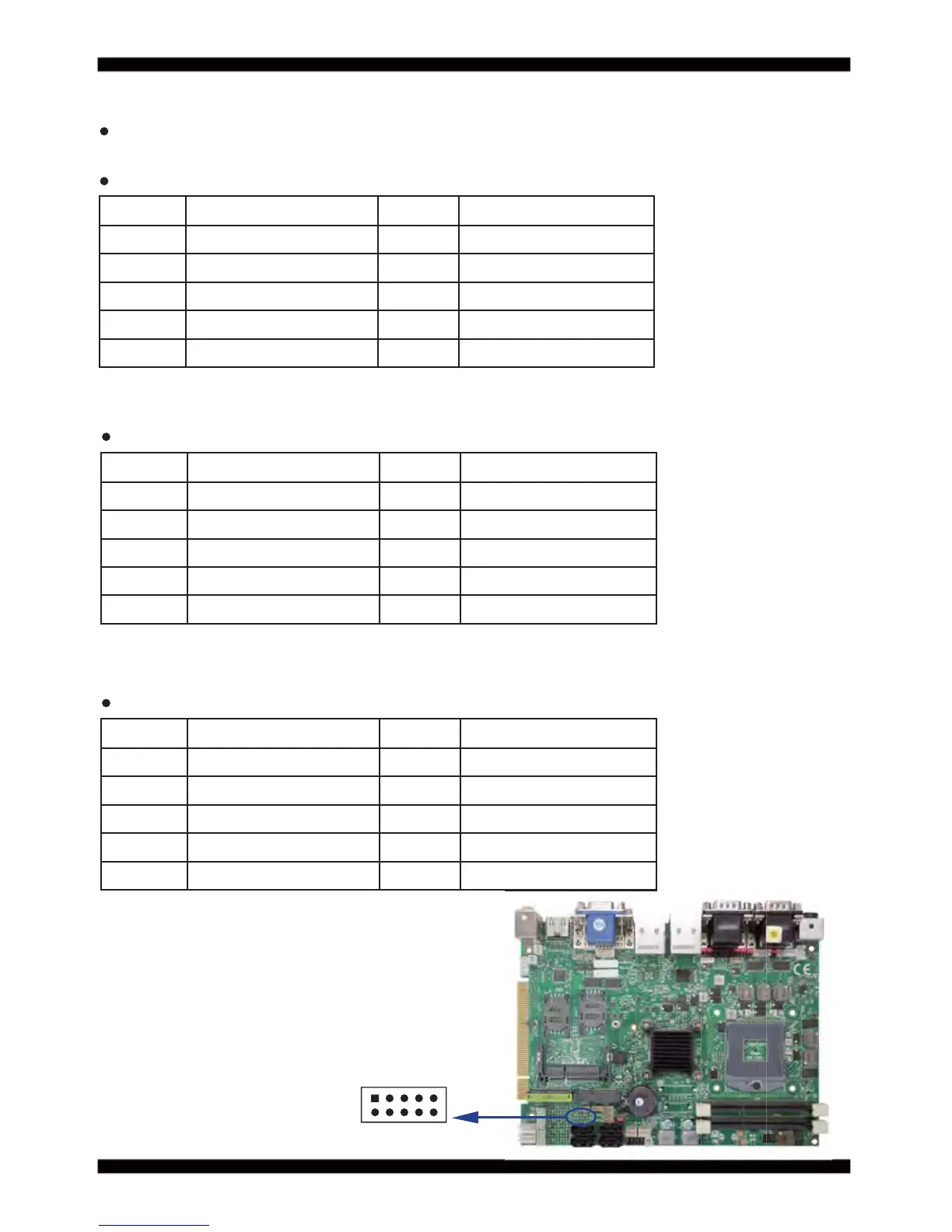

3-9 Touch screen device
CT1: Touch screen (2x5 pin 2.0mm wafer)
Default use USB interface, can change COM interface By OEM BOM.
For 8- wire type pin defi ne
PIN NO. Description PIN NO. Description
1 Bottom 2 Bottom Sense
3 Top Sense 4 Top
5 Right 6 Right Sense
7 Left 8 Left Sense
9 GND 10 KEY
Note: 1. For eight wire type cable Pin 3 and Pin4 need short.
2. Touch controller use USB port 9
For 4- wire type pin defi ne
PIN NO. Description PIN NO. Description
1 Bottom 2 N/A
3 N/A 4 Top
5 Right 6 N/A
7 Left 8 N/A
9 GND 10 KEY
Note: 1. For four wire type cable Pin 3 and Pin4 need short.
2. Touch controller use USB port 9
CT1
pin1
10
