Lex Computech CI770C - Page 55

49

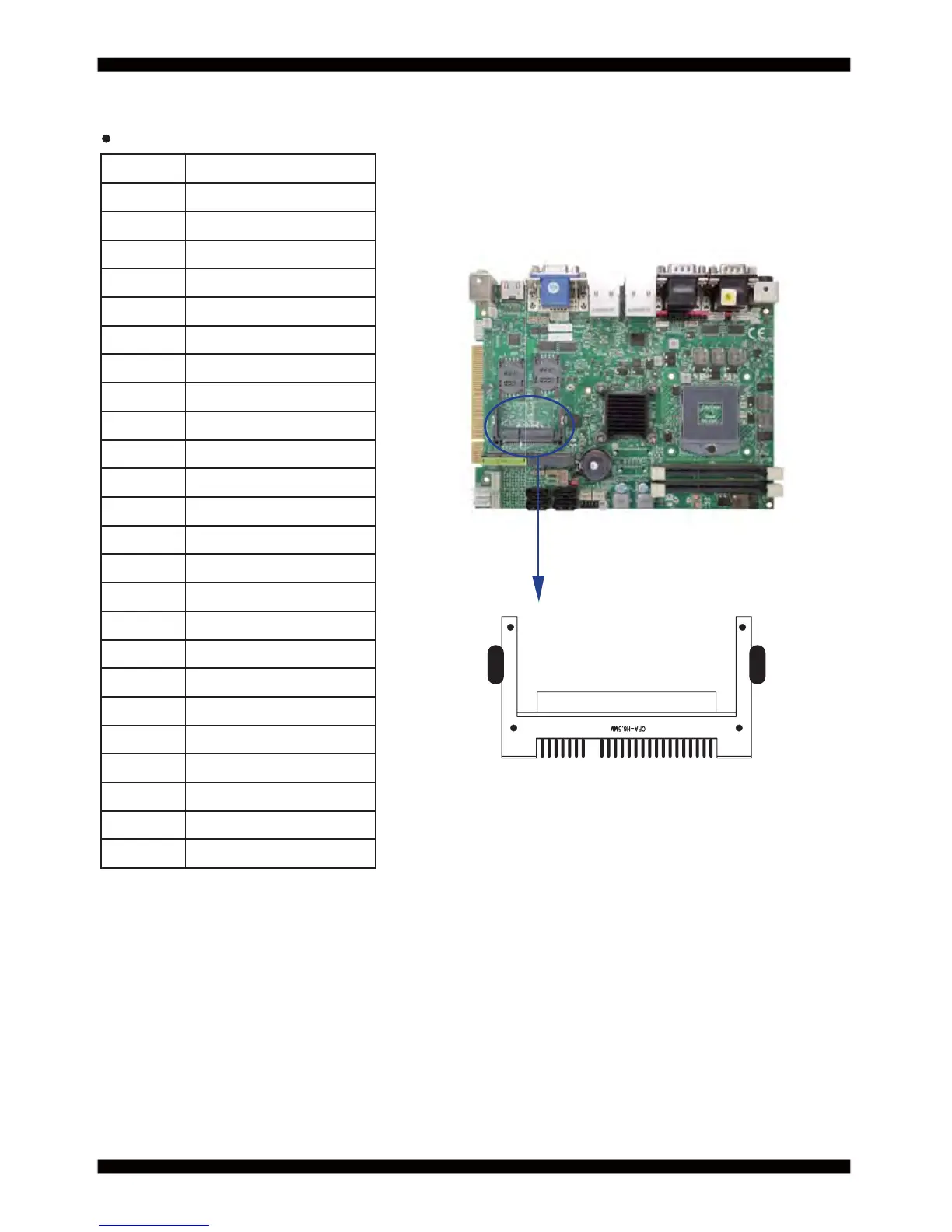

CFA1: CFA Socket For SATA Interface (24pin CFA Socket)
PIN NO. Description
S1 GND
S2 SATA TX+
S3 SATA TX-
S4 GND
S5 SATA RX-
S6 SATA RX+
S7 GND
PC1 GND(Card Detect In)
PC2 GND
PC3 NC
PC4 NC
PC5 NC
PC6 NC
PC7 GND
PC8 NC(LED Out)
PC9 NC(LED Out)
PC10 NC
PC11 NC
PC12 NC
PC13 +3.3V
PC14 +3.3V
PC15 GND
PC16 GND
PC17 GND(Card Detect In)
Note: CFA1 use SATA port 5
3-22 CFast card Reader and SATA
CFA1
