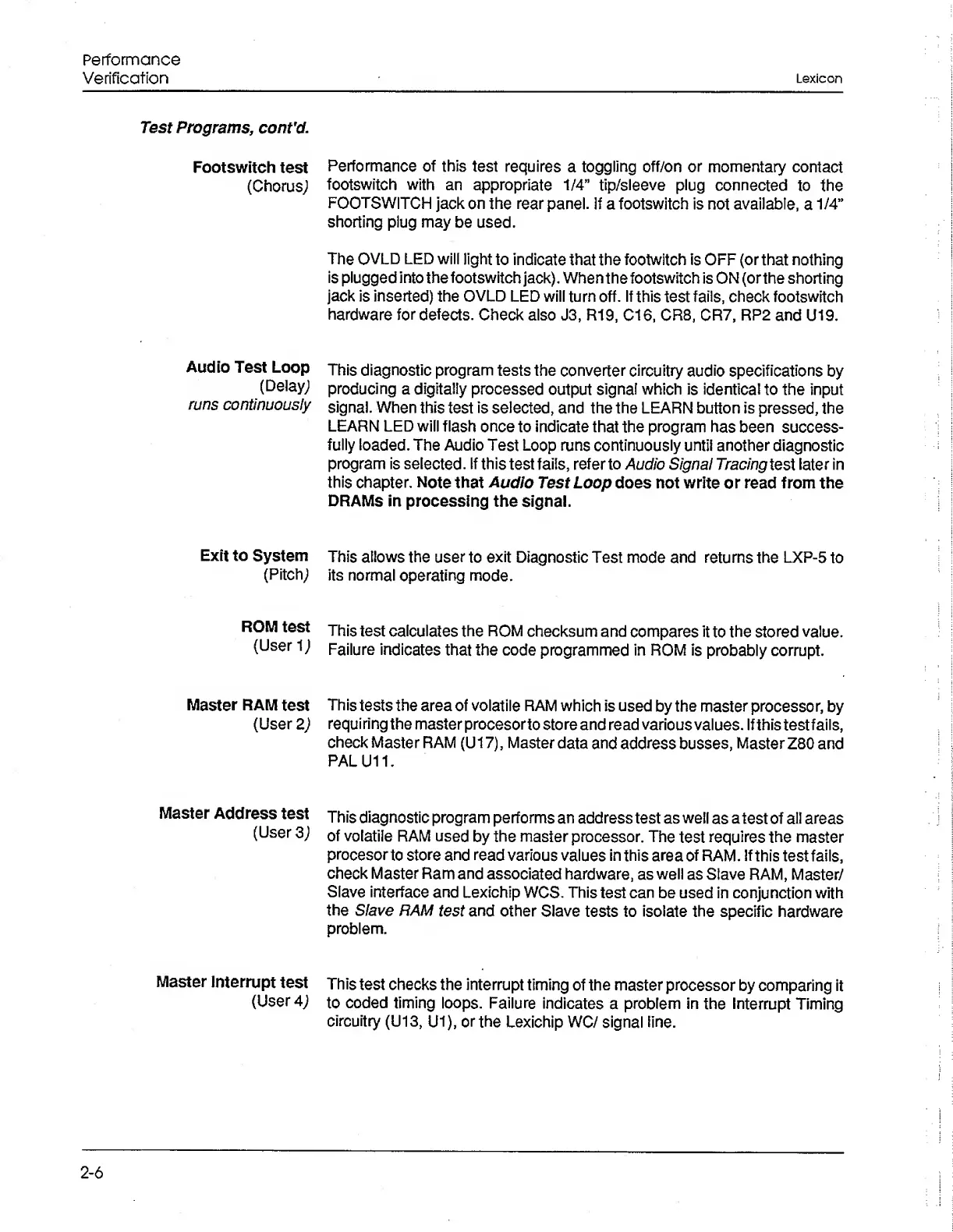

Performance
Verification
Lexicon
Test
Programs,
cont'd.
Footswitch
test
(Chorus;
Audio
Test
Loop
(Delay;
runs
continuously
Exit
to
System
(Pitch;
ROM
test
(Useri;
Master
RAM
test
(User
2
;
Master
Address
test
(User
3
;
Master
Interrupt
test
(User
4
;
Performance
of
this
test
requires
a
toggling
off/on
or
momentary
contact
footswitch
with
an
appropriate
1/4”
tip/sleeve
plug
connected
to
the
FOOTSWITCH
jack
on
the
rear
panel.
If
a
footswitch
is
not
available,
a
1/4”
shorting
plug
may
be
used.
The
OVLD
LED
will
light
to
indicate
that
the
footwitch
is
OFF
(or
that
nothing
is
plugged
into
the
footswitch
jack).
When
the
footswitch
is
ON
(or
the
shorting
jack
is
inserted)
the
OVLD
LED
will
turn
off.
If
this
test
fails,
check
footswitch
hardware
for
defects.
Check
also
J3,
R19,
Cl
6,
CR8,
CR7,
RP2
and
U19.
This
diagnostic
program
tests
the
converter
circuitry
audio
specifications
by
producing
a
digitally
processed
output
signal
which
is
identical
to
the
input
signal.
When
this
test
is
selected,
and
the
the
LEARN
button
is
pressed,
the
LEARN
LED
will
flash
once
to
indicate
that
the
program
has
been
success¬
fully
loaded.
The
Audio
Test
Loop
runs
continuously
until
another
diagnostic
program
is
selected.
If
this
test
fails,
refer
to
Audio
Signal
Tracing
test
later
in
this
chapter.
Note
that
Audio
Test
Loop
does
not
write
or
read
from
the
DRAMs
in
processing
the
signal.
This
allows
the
user
to
exit
Diagnostic
Test
mode
and
returns
the
LXP-5
to
its
normal
operating
mode.
This
test
calculates
the
ROM
checksum
and
compares
it
to
the
stored
value.
Failure
indicates
that
the
code
programmed
in
ROM
is
probably
corrupt.
This
tests
the
area
of
volatile
RAM
which
is
used
by
the
master
processor,
by
requiring
the
master
procesor
to
store
and
read
various
values.
If
this
test
fails,
check
Master
RAM
(U17),
Master
data
and
address
busses,
Master
Z80
and
PALU11.
This
diagnostic
program
performs
an
address
test
as
well
as
a
test
of
all
areas
of
volatile
RAM
used
by
the
master
processor.
The
test
requires
the
master
procesor
to
store
and
read
various
values
in
this
area
of
RAM.
If
this
test
fails,
check
Master
Ram
and
associated
hardware,
as
well
as
Slave
RAM,
Master/
Slave
interface
and
Lexichip
WCS.
This
test
can
be
used
in
conjunction
with
the
Slave
RAM
test
and
other
Slave
tests
to
isolate
the
specific
hardware
problem.
This
test
checks
the
interrupt
timing
of
the
master
processor
by
comparing
it
to
coded
timing
loops.
Failure
indicates
a
problem
in
the
Interrupt
Timing
circuitry
(U13,
U1),
or
the
Lexichip
WC/
signal
line.
2-6
