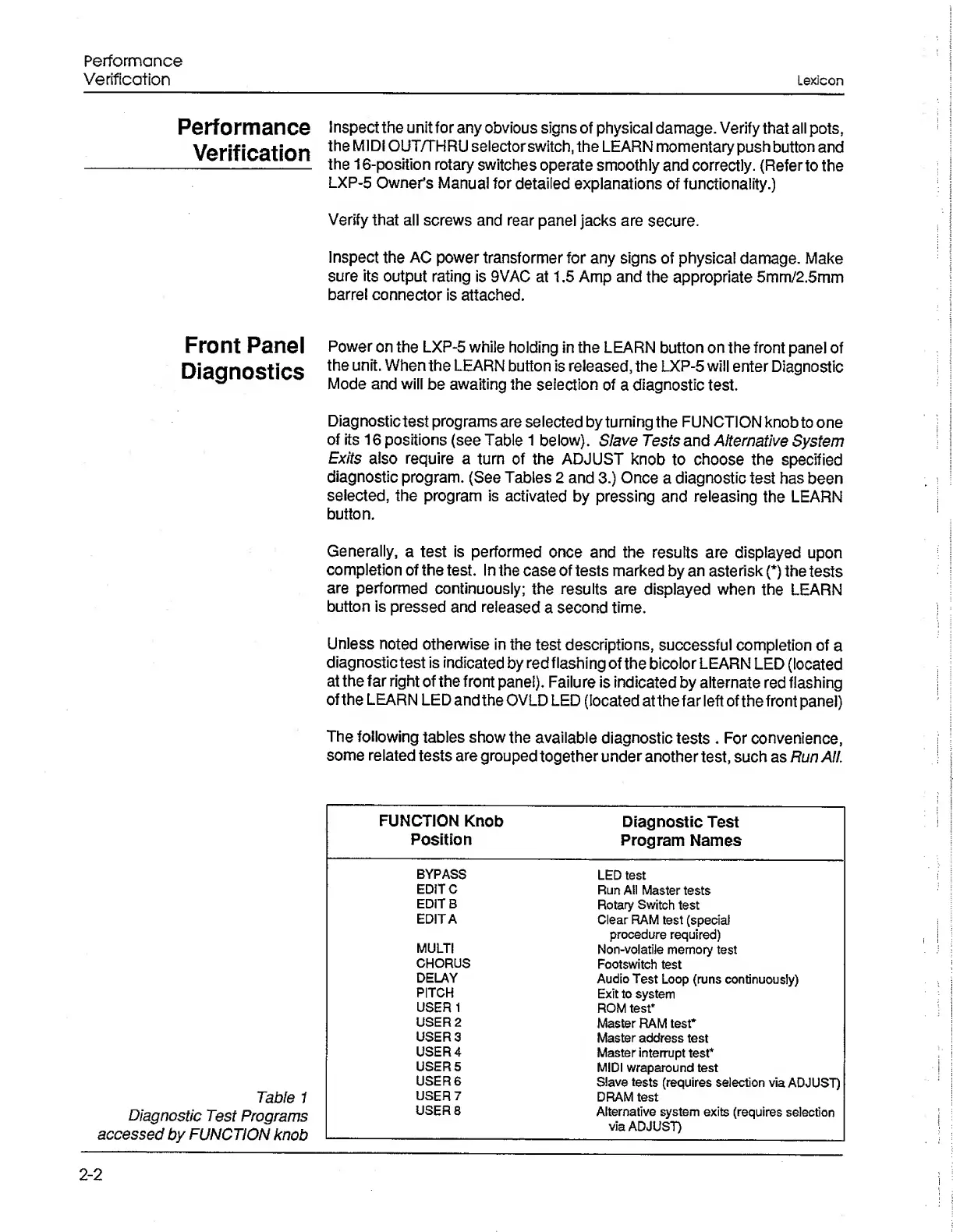

Performance
Verification
Lexicon
Performance
Verification
Front
Panel
Diagnostics
Table
1
Diagnostic
Test
Programs
accessed
by
FUNCTION
knob
Inspect
the
unit
for
any
obvious
signs
of
physical
damage.
Verify
that
all
pots,
the
MIDI
OUT/THRU
selector
switch,
the
LEARN
momentary
push
button
and
the
16-position
rotary
switches
operate
smoothly
and
correctly.
(Refer
to
the
LXP-5
Owner's
Manual
for
detailed
explanations
of
functionality.)
Verify
that
all
screws
and
rear
panel
jacks
are
secure.
Inspect
the
AC
power
transformer
for
any
signs
of
physical
damage.
Make
sure
its
output
rating
is
9VAC
at
1.5
Amp
and
the
appropriate
5mm/2.5mm
barrel
connector
is
attached.
Power
on
the
LXP-5
while
holding
in
the
LEARN
button
on
the
front
panel
of
the
unit.
When
the
LEARN
button
is
released,
the
LXP-5
will
enter
Diagnostic
Mode
and
will
be
awaiting
the
selection
of
a
diagnostic
test.
Diagnostic
test
programs
are
selected
by
turning
the
FUNCTION
knob
to
one
of
its
16
positions
(see
Table
1
below).
Slave
Tests
and
Alternative
System
Exits
also
require
a
turn
of
the
ADJUST
knob
to
choose
the
specified
diagnostic
program.
(See
Tables
2
and
3.)
Once
a
diagnostic
test
has
been
selected,
the
program
is
activated
by
pressing
and
releasing
the
LEARN
button.
Generally,
a
test
is
performed
once
and
the
results
are
displayed
upon
completion
of
the
test.
In
the
case
of
tests
marked
by
an
asterisk
(*)
the
tests
are
performed
continuously;
the
results
are
displayed
when
the
LEARN
button
is
pressed
and
released
a
second
time.
Unless
noted
otherwise
in
the
test
descriptions,
successful
completion
of
a
diagnostic
test
is
indicated
by
red
flashing
of
the
bicolor
LEARN
LED
(located
at
the
far
right
of
the
front
panel).
Failure
is
indicated
by
alternate
red
flashing
of
the
LEARN
LED
and
the
OVLD
LED
(located
at
the
far
left
of
the
front
panel)
The
following
tables
show
the
available
diagnostic
tests
.
For
convenience,
some
related
tests
are
grouped
together
under
another
test,
such
as
Run
All.
FUNCTION
Knob
Position
Diagnostic
Test
Program
Names
BYPASS
LED
test
EDIT
C
Run
All
Master
tests
EDIT
B
Rotary
Switch
test
EDITA
Clear
RAM
test
(special
procedure
required)
MULTI
Non-volatile
memory
test
CHORUS
Footswitch
test
DELAY
Audio
Test
Loop
(runs
continuously)
PITCH
Exit
to
system
USER
1
ROM
test*
USER
2
Master
RAM
test*
USER
3
Master
address
test
USER
4
Master
interrupt
test*
USER
5
MIDI
wraparound
test
USER
6
Slave
tests
(requires
selection
via
ADJUST)
USER
7
DRAM
test
USERS
Alternative
system
exits
(requires
selection
via
ADJUST)
2-2
