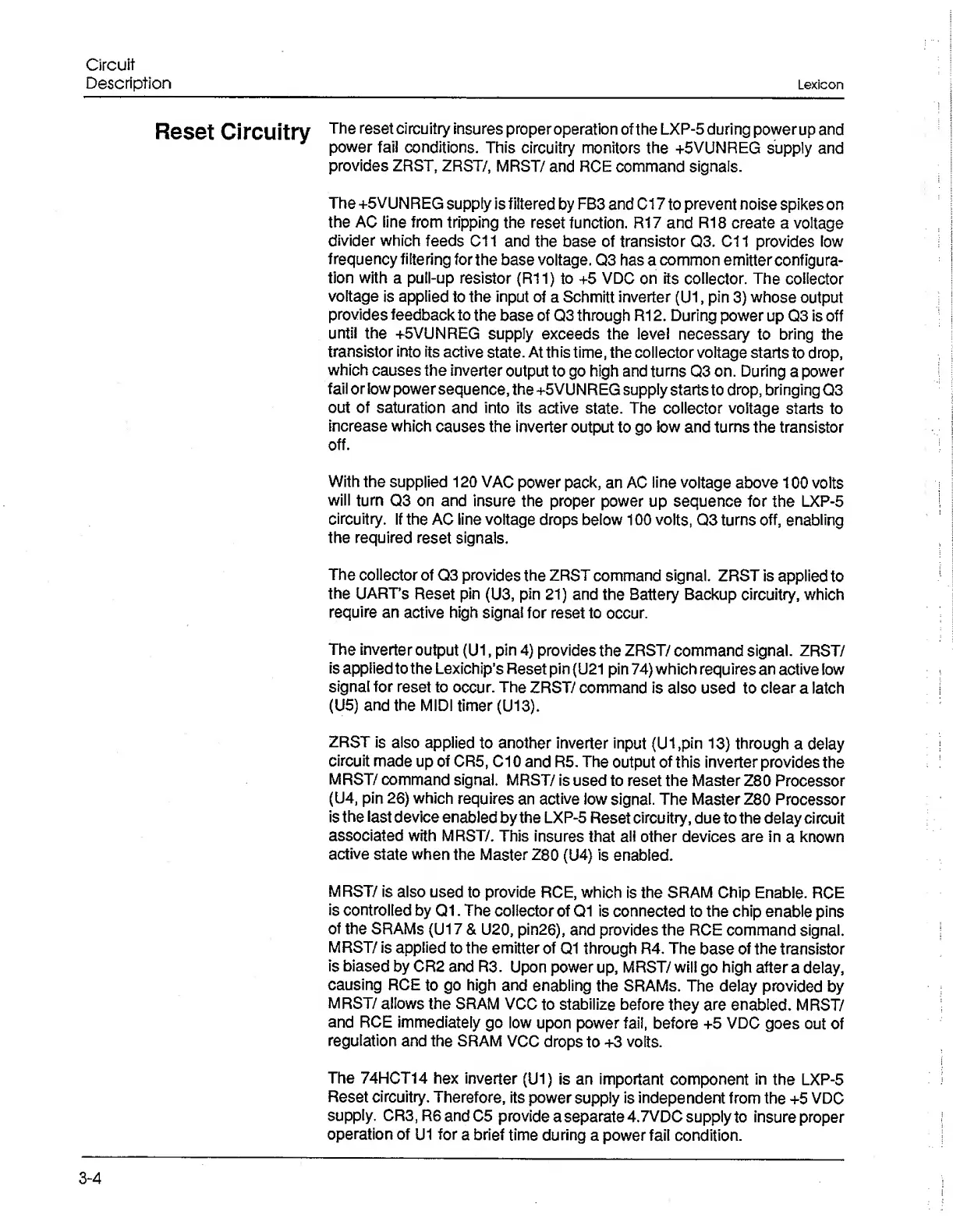

Circuit
Description
Lexicon
Reset
Circuitry
The
reset
circuitry
insures
proper
operation
of
the
LXP-5
during
powerup
and
power
fail
conditions.
This
circuitry
monitors
the
+5VUNREG
supply
and
provides
ZRST,
ZRST/,
MRST/
and
RCE
command
signals.
The
+5VUNREG
supply
is
filtered
by
FB3
and
Cl
7
to
prevent
noise
spikes
on
the
AC
line
from
tripping
the
reset
function.
R17
and
R18
create
a
voltage
divider
which
feeds
C11
and
the
base
of
transistor
Q3.
C11
provides
low
frequency
filtering
for
the
base
voltage.
Q3
has
a
common
emitter
configura¬
tion
with
a
pull-up
resistor
(R11)
to
+5
VDC
on
its
collector.
The
collector
voltage
is
applied
to
the
input
of
a
Schmitt
inverter
(U1,
pin
3)
whose
output
provides
feedback
to
the
base
of
Q3
through
R12.
During
power
up
Q3
is
off
until
the
+5VUNREG
supply
exceeds
the
level
necessary
to
bring
the
transistor
into
its
active
state.
At
this
time,
the
collector
voltage
starts
to
drop,
which
causes
the
inverter
output
to
go
high
and
turns
Q3
on.
During
a
power
fail
or
low
power
sequence,
the
+5VUNREG
supply
starts
to
drop,
bringing
Q3
out
of
saturation
and
into
its
active
state.
The
collector
voltage
starts
to
increase
which
causes
the
inverter
output
to
go
low
and
turns
the
transistor
off.
With
the
supplied
120
VAC
power
pack,
an
AC
line
voltage
above
100
volts
will
turn
Q3
on
and
insure
the
proper
power
up
sequence
for
the
LXP-5
circuitry.
If
the
AC
line
voltage
drops
below
100
volts,
Q3
turns
off,
enabling
the
required
reset
signals.
The
collector
of
Q3
provides
the
ZRST
command
signal.
ZRST
is
applied
to
the
UART’s
Reset
pin
(U3,
pin
21)
and
the
Battery
Backup
circuitry,
which
require
an
active
high
signal
for
reset
to
occur.
The
inverter
output
(U1,
pin
4)
provides
the
ZRST/
command
signal.
ZRST/
is
applied
to
the
Lexichip’s
Reset
pin
(U21
pin
74)
which
requires
an
active
low
signal
for
reset
to
occur.
The
ZRST/
command
is
also
used
to
clear
a
latch
(U5)
and
the
MIDI
timer
(U13).
ZRST
is
also
applied
to
another
inverter
input
(U1,pin
13)
through
a
delay
circuit
made
up
of
CR5,
CIO
and
R5.
The
output
of
this
inverter
provides
the
MRST/
command
signal.
MRST/
is
used
to
reset
the
Master
Z80
Processor
(U4,
pin
26)
which
requires
an
active
low
signal.
The
Master
Z80
Processor
is
the
last
device
enabled
bythe
LXP-5
Reset
circuitry,
due
to
the
delay
circuit
associated
with
MRST/.
This
insures
that
all
other
devices
are
in
a
known
active
state
when
the
Master
Z80
(U4)
is
enabled.
MRST/
is
also
used
to
provide
RCE,
which
is
the
SRAM
Chip
Enable.
RCE
is
controlled
by
Q1.
The
collector
of
Q1
is
connected
to
the
chip
enable
pins
of
the
SRAMs
(U17
&
U20,
pin26),
and
provides
the
RCE
command
signal.
MRST/
is
applied
to
the
emitter
of
Q1
through
R4.
The
base
of
the
transistor
is
biased
by
CR2
and
R3.
Upon
power
up,
MRST/
will
go
high
after
a
delay,
causing
RCE
to
go
high
and
enabling
the
SRAMs.
The
delay
provided
by
MRST/
allows
the
SRAM
VCC
to
stabilize
before
they
are
enabled.
MRST/
and
RCE
immediately
go
low
upon
power
fail,
before
+5
VDC
goes
out
of
regulation
and
the
SRAM
VCC
drops
to
+3
volts.
The
74HCT14
hex
inverter
(U1)
is
an
important
component
in
the
LXP-5
Reset
circuitry.
Therefore,
its
power
supply
is
independent
from
the
+5
VDC
supply.
CR3,R6andC5
provide
a
separate
4.7VDC
supply
to
insure
proper
operation
of
U1
for
a
brief
time
during
a
power
fail
condition.
3-4
