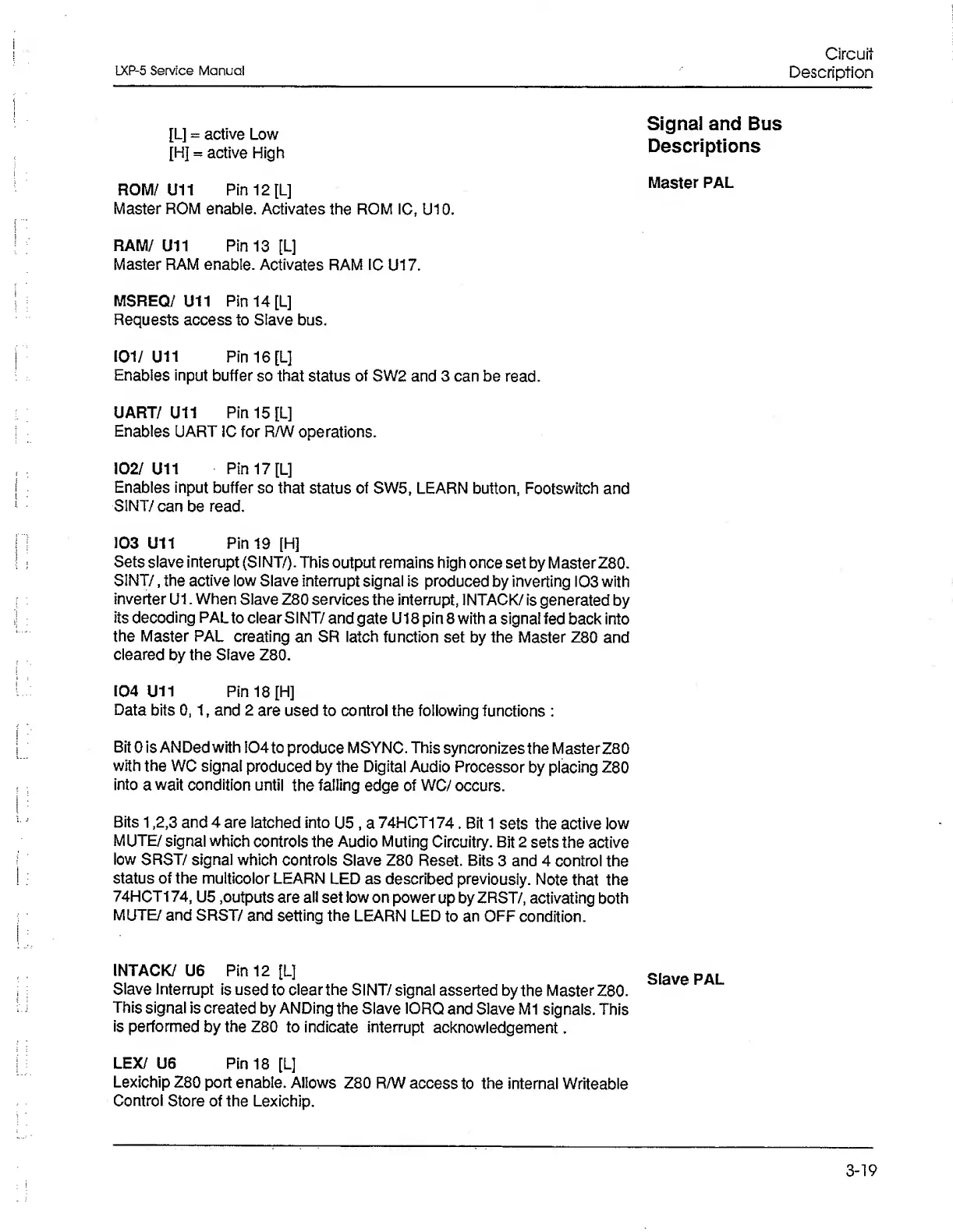

LXP-5
Service
Manual
Circuit
Description
[L]
=
active
Low
[H]
=
active
High
ROM/
U11
Pin
12
[L]
Master
ROM
enable.
Activates
the
ROM
!C,
U10.
RAM/
U11
Pin
13
[L]
Master
RAM
enable.
Activates
RAM
1C
U17.
MSREQ/
U11
Pin
14
[L]
Requests
access
to
Slave
bus.
101/
U11
Pin
16
[L]
Enables
input
buffer
so
that
status
of
SW2
and
3
can
be
read.
UART/
U11
Pin
15
[L]
Enables
UART
1C
for
R/W
operations.
102/
U11
Pin
17
[L]
Enables
input
buffer
so
that
status
of
SW5,
LEARN
button,
Footswitch
and
SINT/
can
be
read.
103
U11
Pin
19
[Hj
Sets
slave
interupt
(SINT/).
This
output
remains
high
once
set
by
MasterZ80.
SINT/,
the
active
low
Slave
interrupt
signal
is
produced
by
inverting
103
with
inverter
U1.
When
Slave
Z80
services
the
interrupt,
INTACK/
is
generated
by
its
decoding
PAL
to
clear
SI
NT/
and
gate
U18
pin
8
with
a
signal
fed
back
into
the
Master
PAL
creating
an
SR
latch
function
set
by
the
Master
Z80
and
cleared
by
the
Slave
Z80.
104
U11
Pin
18
[H]
Data
bits
0,1,
and
2
are
used
to
control
the
following
functions
:
Bit
Ois
ANDedwith
104
to
produce
MSYNC.
This
syncronizesthe
MasterZ80
with
the
WC
signal
produced
by
the
Digital
Audio
Processor
by
placing
Z80
into
a
wait
condition
until
the
falling
edge
of
WC/
occurs.
Bits
1,2,3
and
4
are
latched
into
U5
,
a
74HCT174.
Bit
1
sets
the
active
low
MUTE/
signal
which
controls
the
Audio
Muting
Circuitry.
Bit
2
sets
the
active
low
SRST/
signal
which
controls
Slave
Z80
Reset.
Bits
3
and
4
control
the
status
of
the
multicolor
LEARN
LED
as
described
previously.
Note
that
the
74HCT174,
U5
.outputs
are
all
set
low
on
power
up
by
ZRST/,
activating
both
MUTE/
and
SRST/
and
setting
the
LEARN
LED
to
an
OFF
condition.
INTACK/
U6
Pin
12
[L]
Slave
Interrupt
is
used
to
clear
the
SINT/
signal
asserted
by
the
Master
Z80.
This
signal
is
created
by
ANDing
the
Slave
10RQ
and
Slave
Ml
signals.
This
is
performed
by
the
Z80
to
indicate
interrupt
acknowledgement.
LEX/
U6
Pin
18
[L]
Lexichip
Z80
port
enable.
Allows
Z80
R/W
access
to
the
internal
Writeable
Control
Store
of
the
Lexichip.
Signal
and
Bus
Descriptions
Master
PAL
Slave
PAL
3-19
