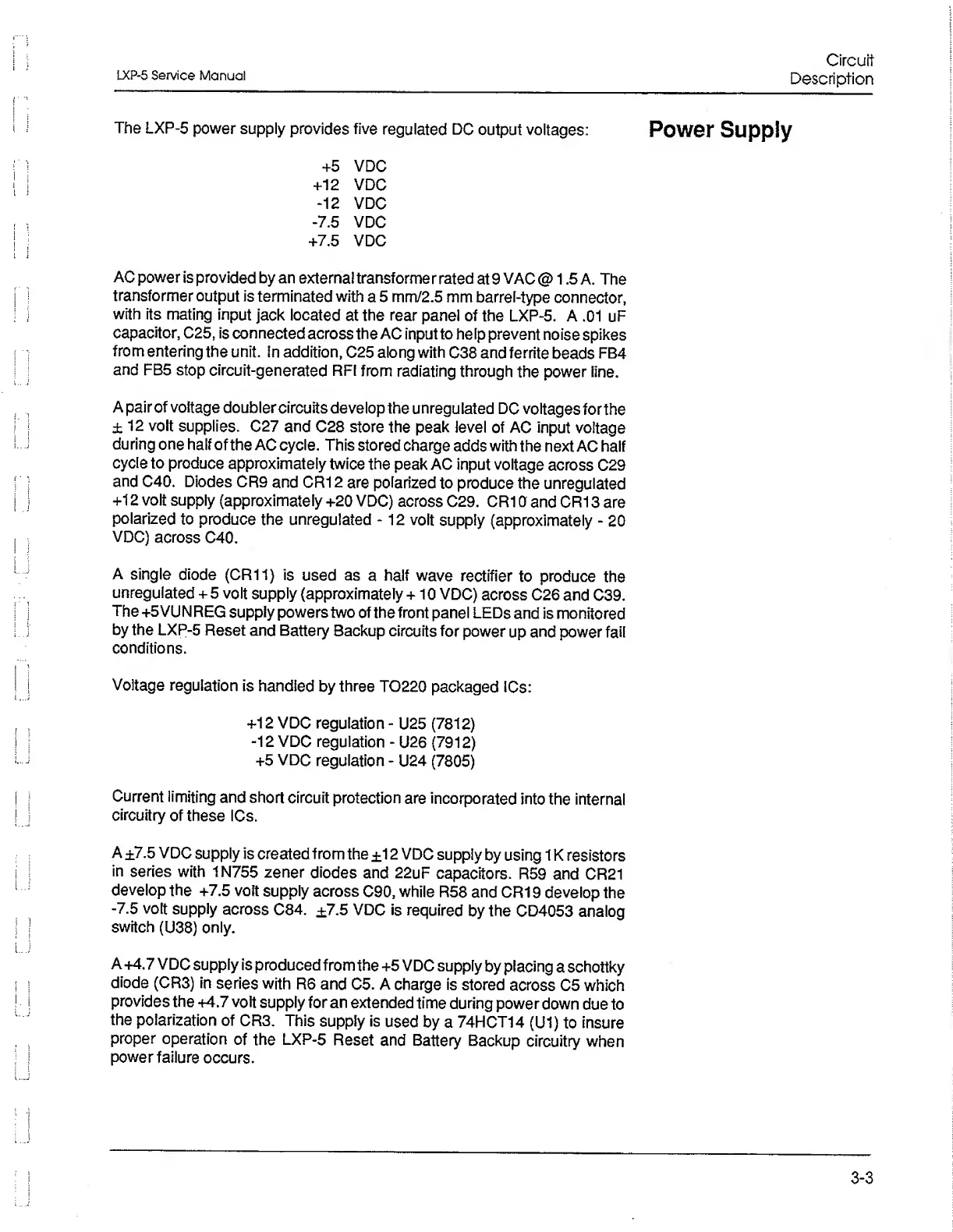

LXP-5
Service
Manual
Circuit
Description
The
LXP-5
power
supply
provides
five
regulated
DC
output
voltages:
+5
VDC
+12
VDC
-12
VDC
-7.5
VDC
+7.5
VDC
AC
power
is
provided
by
an
externa!
transformer
rated
at
9
VAC
@
1.5
A.
The
transformer
output
is
terminated
with
a
5
mm/2.5
mm
barrel-type
connector,
with
its
mating
input
jack
located
at
the
rear
panel
of
the
LXP-5.
A
.01
uF
capacitor,
C25,
is
connected
across
the
AC
input
to
help
prevent
noise
spikes
from
entering
the
unit.
In
addition,
C25
along
with
C38
and
ferrite
beads
FB4
and
FB5
stop
circuit-generated
RFI
from
radiating
through
the
power
line.
A
pair
of
voltage
doubler
circuits
develop
the
unregulated
DC
voltages
for
the
±
12
volt
supplies.
C27
and
C28
store
the
peak
level
of
AC
input
voltage
during
one
half
of
the
AC
cycle.
This
stored
charge
adds
with
the
next
AC
half
cycle
to
produce
approximately
twice
the
peak
AC
input
voltage
across
C29
and
C40.
Diodes
CR9
and
CR12
are
polarized
to
produce
the
unregulated
+12
volt
supply
(approximately
+20
VDC)
across
C29.
CR10
and
CR13
are
polarized
to
produce
the
unregulated
-12
volt
supply
(approximately
-
20
VDC)
across
C40.
A
single
diode
(CR11)
is
used
as
a
half
wave
rectifier
to
produce
the
unregulated
+
5
volt
supply
(approximately
+10
VDC)
across
C26
and
C39.
The
+5VUNREG
supply
powers
two
of
the
front
panel
LEDs
and
is
monitored
by
the
LXP-5
Reset
and
Battery
Backup
circuits
for
power
up
and
power
fail
conditions.
Voltage
regulation
is
handled
by
three
TO220
packaged
ICs:
+12
VDC
regulation
-
U25
(7812)
-12
VDC
regulation
-
U26
(7912)
+5
VDC
regulation
-
U24
(7805)
Current
limiting
and
short
circuit
protection
are
incorporated
into
the
internal
circuitry
of
these
ICs.
A
±7.5
VDC
supply
is
created
from
the
±12
VDC
supply
by
using
1K
resistors
in
series
with
1N755
zener
diodes
and
22uF
capacitors.
R59
and
CR21
develop
the
+7.5
volt
supply
across
C90,
while
R58
and
CR19
develop
the
-7.5
volt
supply
across
C84.
±7.5
VDC
is
required
by
the
CD4053
analog
switch
(U38)
only.
A
+4.7
VDC
supply
is
produced
from
the
+5
VDC
supply
by
placing
a
schottky
diode
(CR3)
in
series
with
R6
and
C5.
A
charge
is
stored
across
C5
which
provides
the
+4.7
volt
supply
for
an
extended
time
during
powerdown
due
to
the
polarization
of
CR3.
This
supply
is
used
by
a
74HCT14
(U1)
to
insure
proper
operation
of
the
LXP-5
Reset
and
Battery
Backup
circuitry
when
power
failure
occurs.
Power
Supply
3-3
