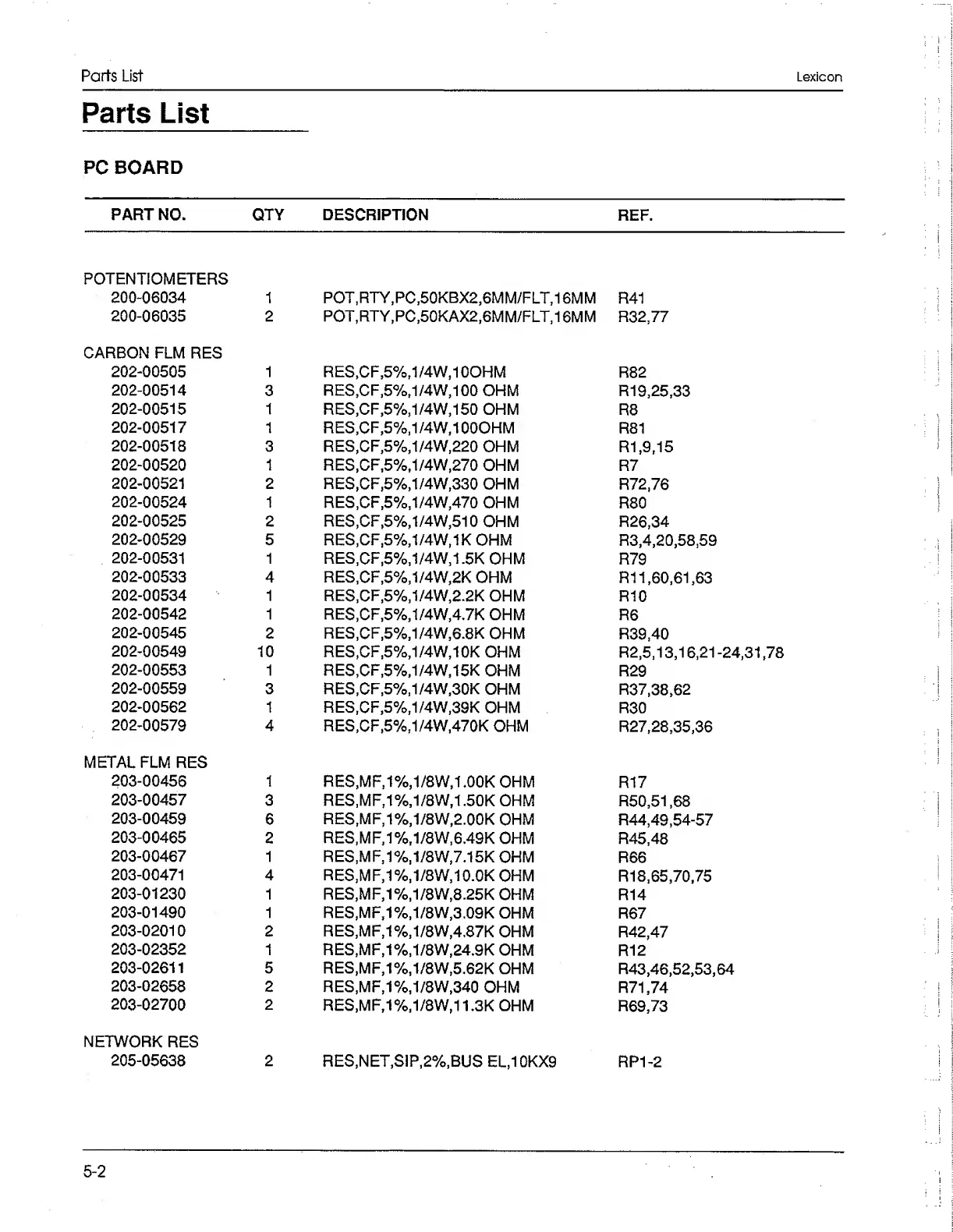

Lexicon LXP-5 Service Manual

Parts List
Lexicon
Parts List
PC BOARD
-
PART NO.
QTY
DESCRIPTION REF.
POTENTIOMETERS
200-06034 1
POT,RTY,PC,50KBX2,6MM/FLT,16MM R41
200-06035 2
POT,RTY,PC,50KAX2,6MM/FLT,16MM R32,77
CARBON FLM RES
202-00505
1
RES,CF,5%,1/4W,10OHM
R82
202-00514
3 RES,CF,5%,1 /4W,100 OHM
R19,25,33
202-00515 1 RES,CF,5%,1/4W,150 OHM
R 8
202-00517
1
RES,CF,5%,1/4W,1000HM
R81
202-00518 3
RES,CF,5%,1/4W,220 OHM
R1,9,15
202-00520
1
RES,CF,5%,1/4W,270 OHM R7
202-00521
2
RES,CF,5%,1/4W,330 OHM
R72.76
202-00524
1
RES,CF,5%,1/4W,470 OHM
R80
202-00525
2
RES,CF,5%,1/4W,510 OHM
R26.34
202-00529 5
RES,CF,5%,1/4W,1K OHM
R3,4,20,58,59
202-00531 1
RES,CF,5% 1 1 / 4W J 1 . 5K OHM
R79
202-00533 4
RES,CF,5%,1/4W,2K OHM
R11,60,61,63
202-00534 1
RES,CF ) 5%,1/4W,2.2K OHM
R10
202-00542 1
RES,CF,5%,1/4W,4.7K OHM
R 6
202-00545 2 RES,CF,5%,1/4W,6.8K OHM
R39,40
202-00549 10
RES,CF,5%,1/4W,10K OHM
R2,5,13,16,21-24,31,78
202-00553 1
RES,CF,5% I 1 / 4W,15K OHM
R29
202-00559 3
RES,CF,5%,1/4W,30K OHM
R37,38,62
202-00562
1
RES,CF,5%,1/4W,39K OHM
R30
202-00579 4
RES,CF,5%,1 /4W.470K OHM R27,28,35,36
METAL FLM RES
203-00456
1
RES,MF,1%,1/8W,1.00K OHM
R17
203-00457
3
RES,MF,1%,1/8W,1.50K OHM
R50,51,68
203-00459 6
RES,MF,1%,1/8W,2.00K OHM
R44 s 49, 5 4-57
203-00465 2
RES,MF,1% I 1 / 8W I 6 . 49K OHM
R45.48
203-00467 1
RES,MF,1%,1/8W,7.15K OHM
R 6 6
203-00471 4
RES,MF,1%,1/8W,10.0K OHM
R18,65,70,75
203-01230 1
RES,MF,1%,1/8W,8.25K OHM
R14
203-01490 1
RES,MF,1%,1/8W,3.09K OHM R67
203-02010 2
RES,MF,1%,1/8W,4.87K OHM
R42,47
203-02352
1
RES,MF,1%,1/8W,24.9K OHM R12
203-02611 5
RES,MF,1%,1/8W 1 5.62K OHM
R43,46,52,53,64
203-02658 2
RES,MF,1%,1/8W,340 OHM
R71.74
203-02700
2
RES,MF f 1 % ) 1 / 8W,11.3K OHM
R69,73
NETWORK RES
205-05638
2
RES,NET I SIP,2% J B US EL.10KX9
RP 1 - 2
5-2
