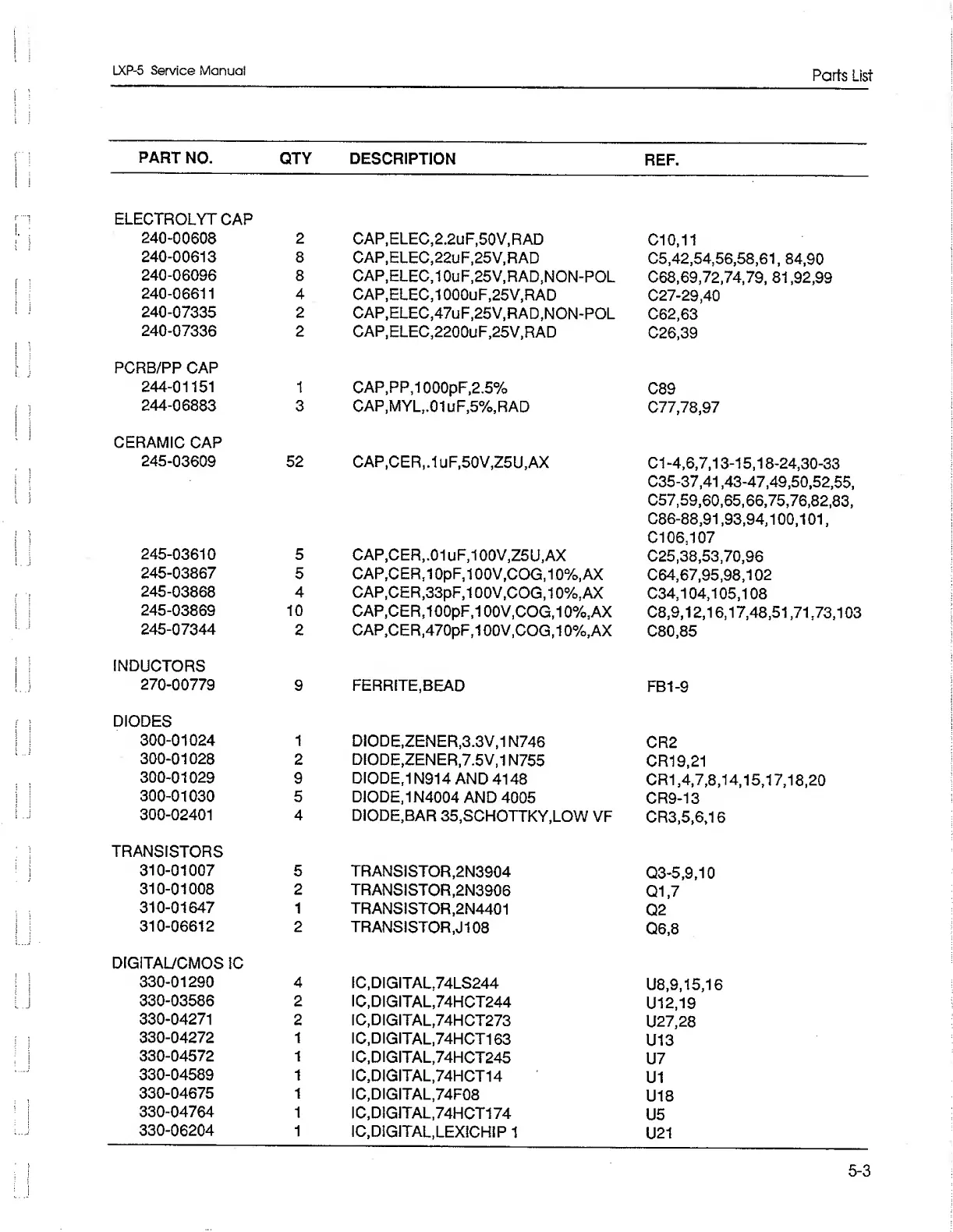

LXP-5
Service
Manual
Parts
List
PART
NO.
QTY
DESCRIPTION
REF.
ELECTROLYT
CAP
240-00608
2
CAP,ELEC,2,2uF,50V,RAD
CIO,11
240-00613
8
CAP,ELEC,22uF,25V,RAD
C5,42,54,56,58,61,84,90
240-06096
8
CAP,ELEC,10uF,25V,RAD,NON-POL
C68,69,72,74,79,
81,92,99
240-06611
4
CAP,ELEC,10OOuF,25V,RAD
C27-29.40
240-07335
2
CAP,ELEC,47uF,25V,RAD,NON-POL
C62,63
240-07336
2
CAP,
ELEC,2200uF,
25V,
RAD
C26,39
PCRB/PP
CAP
244-01151
1
CAP,PP,1000pF,2.5%
C89
244-06883
3
CAP,MYL,.01
uF,5%,RAD
C77,78,97
CERAMIC
CAP
245-03609
52
CAP,CER,.1uF,50V,Z5U,AX
Cl
-4,6,7,13-15,18-24,30-33
C35-37.41,43-47,49,50,52,55,
C57,59,60,65,66,75,76,82,83,
C86-88,91,93,94,100,101,
Cl
06,107
245-03610
5
CAP,CER,.01uF,100V,Z5U,AX
C25,38,53,70,96
245-03867
5
CAP,CER,10pF,100V,COG,10%,
AX
C64,67,95,98,102
245-03868
4
CAP,CER,33pF,100V,COG,10%,AX
C34,104,105,108
245-03869
10
CAP,CER,100pF,100V.COG,
10%,AX
C8,9,12,16,17,48,51,71,73,103
245-07344
2
CAP,CER,470pF,100V.COG,
10%,AX
C80,85
INDUCTORS
270-00779
9
FERRITE,BEAD
FBI-9
DIODES
300-01024
1
DIODE,ZENER,3.3V,1N746
CR2
300-01028
2
DIODE,ZENER,7.5V,1N755
CR19,21
300-01029
9
DIODE,1N914AND4148
CR1,4,7,8,14,15,17,18,20
300-01030
5
DIODE,1N4004
AND
4005
CR9-13
300-02401
4
DIODE,BAR
35,SCHOTTKY,LOW
VF
CR3,5,6,16
TRANSISTORS
310-01007
5
TRANSISTOR
,2N3904
Q3-5,9,10
310-01008
2
TRANSISTOR,2N3906
Q1,7
310-01647
1
TRANSISTOR,
2N4401
Q2
310-06612
2
TRANSISTOR
,J108
Q6,8
DIGITAL/CMOS
1C
330-01290
4
1C,DIGITAL,74LS244
U8,9,15,16
330-03586
2
1C,DIGITAL,74HCT244
U12.19
330-04271
2
1C,DIGITAL,74HCT273
U27,28
330-04272
1
1C,DIGITAL,74HCT163
U13
330-04572
1
1C,DIGITAL,74HCT245
U7
330-04589
1
1C,DIGITAL,74HCT14
U1
330-04675
1
1C,DIGITAL,74F08
U18
330-04764
1
1C,DIGITAL,74HCT174
U5
330-06204
1
1C,DIGITAL,LEXICHIP
1
U21
5-3
