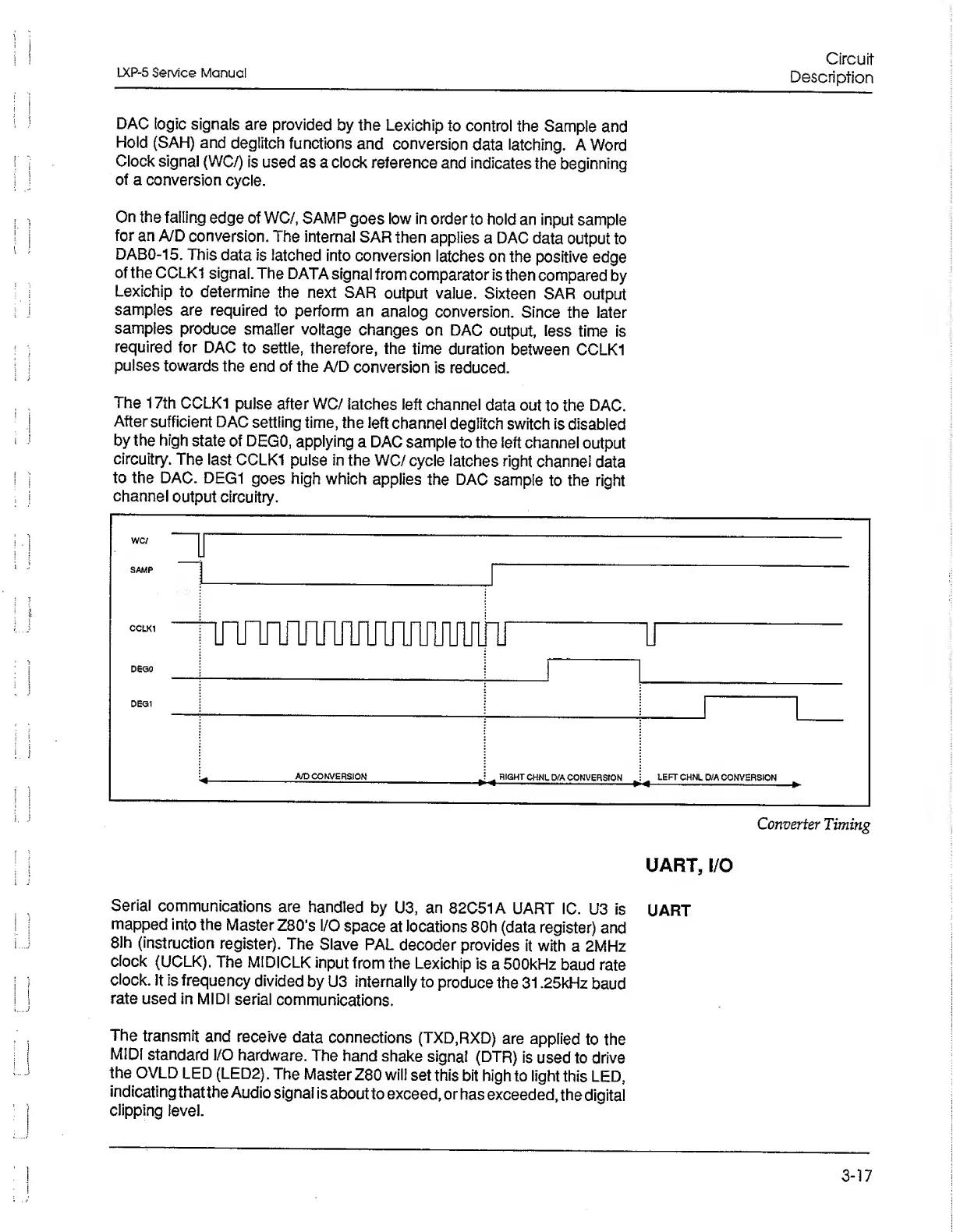

Circuit
Description
DAC
logic
signals
are
provided
by
the
Lexichip
to
control
the
Sample
and
Hold
(SAH)
and
deglitch
functions
and
conversion
data
latching.
A
Word
Clock
signal
(WC/)
is
used
as
a
clock
reference
and
indicates
the
beginning
of
a
conversion
cycle.
On
the
falling
edge
of
WC/,
SAMP
goes
low
in
order
to
hold
an
input
sample
for
an
A/D
conversion.
The
internal
SAR
then
applies
a
DAC
data
output
to
DABO-15.
This
data
is
latched
into
conversion
latches
on
the
positive
edge
of
the
CCLK1
signal.
The
DATA
signal
from
comparator
is
then
compared
by
Lexichip
to
determine
the
next
SAR
output
value.
Sixteen
SAR
output
samples
are
required
to
perform
an
analog
conversion.
Since
the
later
samples
produce
smaller
voltage
changes
on
DAC
output,
less
time
is
required
for
DAC
to
settle,
therefore,
the
time
duration
between
CCLK1
pulses
towards
the
end
of
the
A/D
conversion
is
reduced.
The
17th
CCLK1
pulse
after
WC/
latches
left
channel
data
out
to
the
DAC.
After
sufficient
DAC
settling
time,
the
left
channel
degiitch
switch
is
disabled
by
the
high
state
of
DEGO,
applying
a
DAC
sample
to
the
left
channel
output
circuitry.
The
last
CCLK1
pulse
in
the
WC/
cycle
latches
right
channel
data
to
the
DAC.
DEG1
goes
high
which
applies
the
DAC
sample
to
the
right
channel
output
circuitry.
WC/
SAMP
CCLK1
EGO
u
u
uu
uuuuuuuuuuup
If
DEG1
^
A/D
CONVERSION
r
:
^
RIGHT
CHNL
D/A
CONVERSION
LEFT
CHNL
D/A
CONVERSION
-
Converter
Timing
UART,
I/O
Serial
communications
are
handled
by
U3,
an
82C51A
UART
1C.
U3
is
UART
mapped
into
the
Master
Z80’s
I/O
space
at
locations
80h
(data
register)
and
8lh
(instruction
register).
The
Slave
PAL
decoder
provides
it
with
a
2MHz
clock
(UCLK).
The
MIDICLK
input
from
the
Lexichip
is
a
500kHz
baud
rate
clock.
It
is
frequency
divided
by
U3
internally
to
produce
the
31.25kHz
baud
rate
used
in
MIDI
serial
communications.
The
transmit
and
receive
data
connections
(TXD.RXD)
are
applied
to
the
MIDI
standard
I/O
hardware.
The
hand
shake
signal
(DTR)
is
used
to
drive
the
OVLD
LED
(LED2).
The
Master
Z80
will
set
this
bit
high
to
light
this
LED,
indicating
thatthe
Audio
signal
is
about
to
exceed,
or
has
exceeded,
the
digital
clipping
level.
3-17
