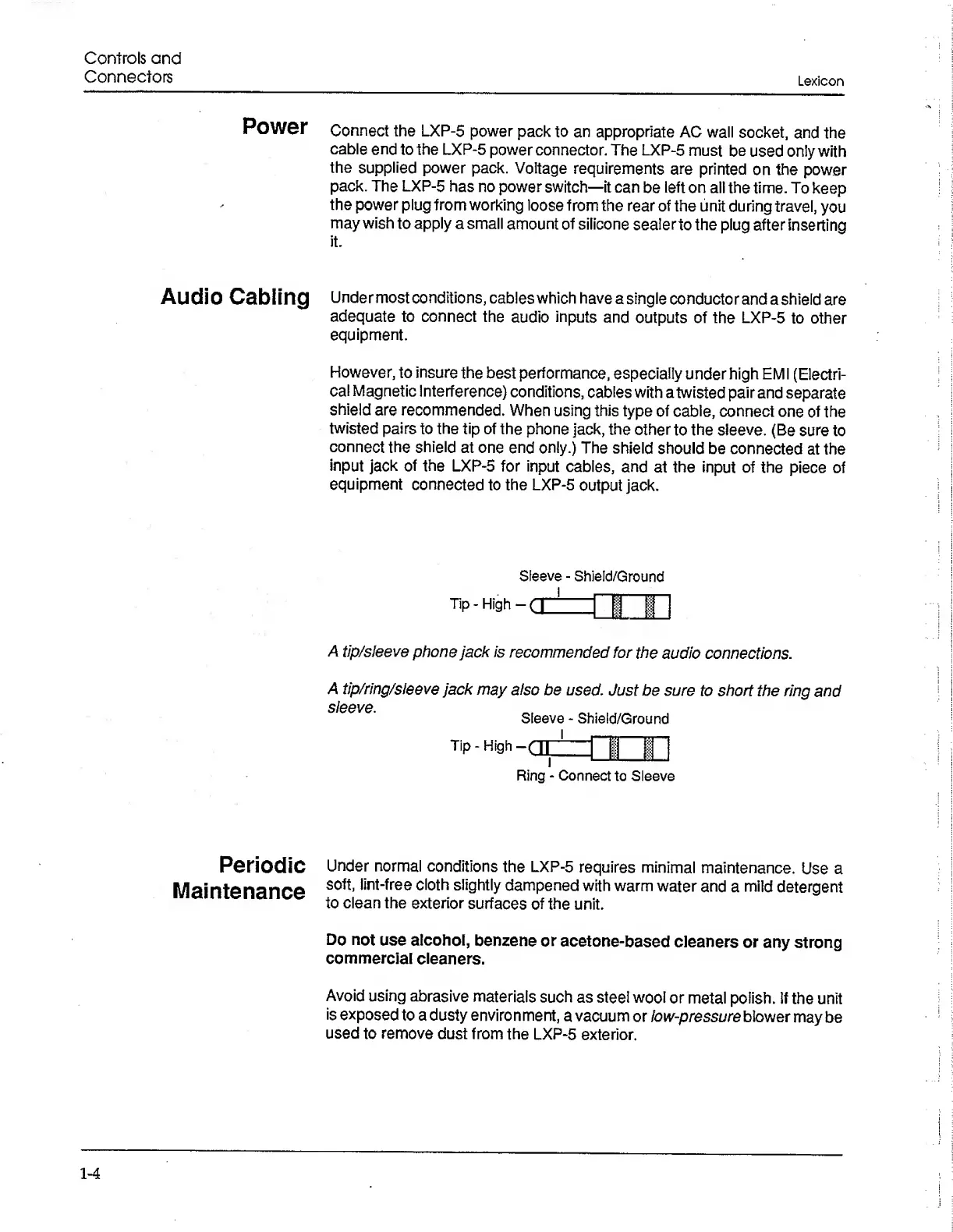

Controls
and
Connectors
Lexicon
Power
Connect
the
LXP-5
power
pack
to
an
appropriate
AC
wall
socket,
and
the
cable
end
to
the
LXP-5
power
connector.
The
LXP-5
must
be
used
only
with
the
supplied
power
pack.
Voltage
requirements
are
printed
on
the
power
pack.
The
LXP-5
has
no
power
switch—it
can
be
left
on
all
the
time.
To
keep
the
power
plug
from
working
loose
from
the
rear
of
the
unit
during
travel,
you
may
wish
to
apply
a
small
amount
of
silicone
sealerto
the
plug
after
inserting
it.
Audio
Cabling
Under
most
conditions,
cables
which
have
a
single
conductor
and
a
shield
are
adequate
to
connect
the
audio
inputs
and
outputs
of
the
LXP-5
to
other
equipment.
However,
to
insure
the
best
performance,
especially
under
high
EM
I
(Electri¬
cal
Magnetic
Interference)
conditions,
cables
with
atwisted
pair
and
separate
shield
are
recommended.
When
using
this
type
of
cable,
connect
one
of
the
twisted
pairs
to
the
tip
of
the
phone
jack,
the
other
to
the
sleeve.
(Be
sure
to
connect
the
shield
at
one
end
only.)
The
shield
should
be
connected
at
the
input
jack
of
the
LXP-5
for
input
cables,
and
at
the
input
of
the
piece
of
equipment
connected
to
the
LXP-5
output
jack.
Sleeve
-
Shield/Ground
Tip-High-rr
1
-i
A
tip/sleeve
phone
jack
is
recommended
for
the
audio
connections.
A
tip/ring/sleeve
jack
may
also
be
used.
Just
be
sure
to
short
the
ring
and
sleeve.
Sleeve
-
Shield/Ground
Tip
-
High
—
C
M
m
Ring
-
Connect
to
Sleeve
Periodic
Under
normal
conditions
the
LXP-5
requires
minimal
maintenance.
Use
a
Maintenance
so
^’
*‘
nt_
*
ree
Slightly
dampened
with
warm
water
and
a
mild
detergent
to
clean
the
exterior
surfaces
of
the
unit.
Do
not
use
alcohol,
benzene
or
acetone-based
cleaners
or
any
strong
commercial
cleaners.
Avoid
using
abrasive
materials
such
as
steel
wool
or
metal
polish,
if
the
unit
is
exposed
to
a
dusty
environment,
a
vacuum
or
low-pressure
blower
may
be
used
to
remove
dust
from
the
LXP-5
exterior.
1-4
