LXP-5 Service Manual
Controls and
Connectors

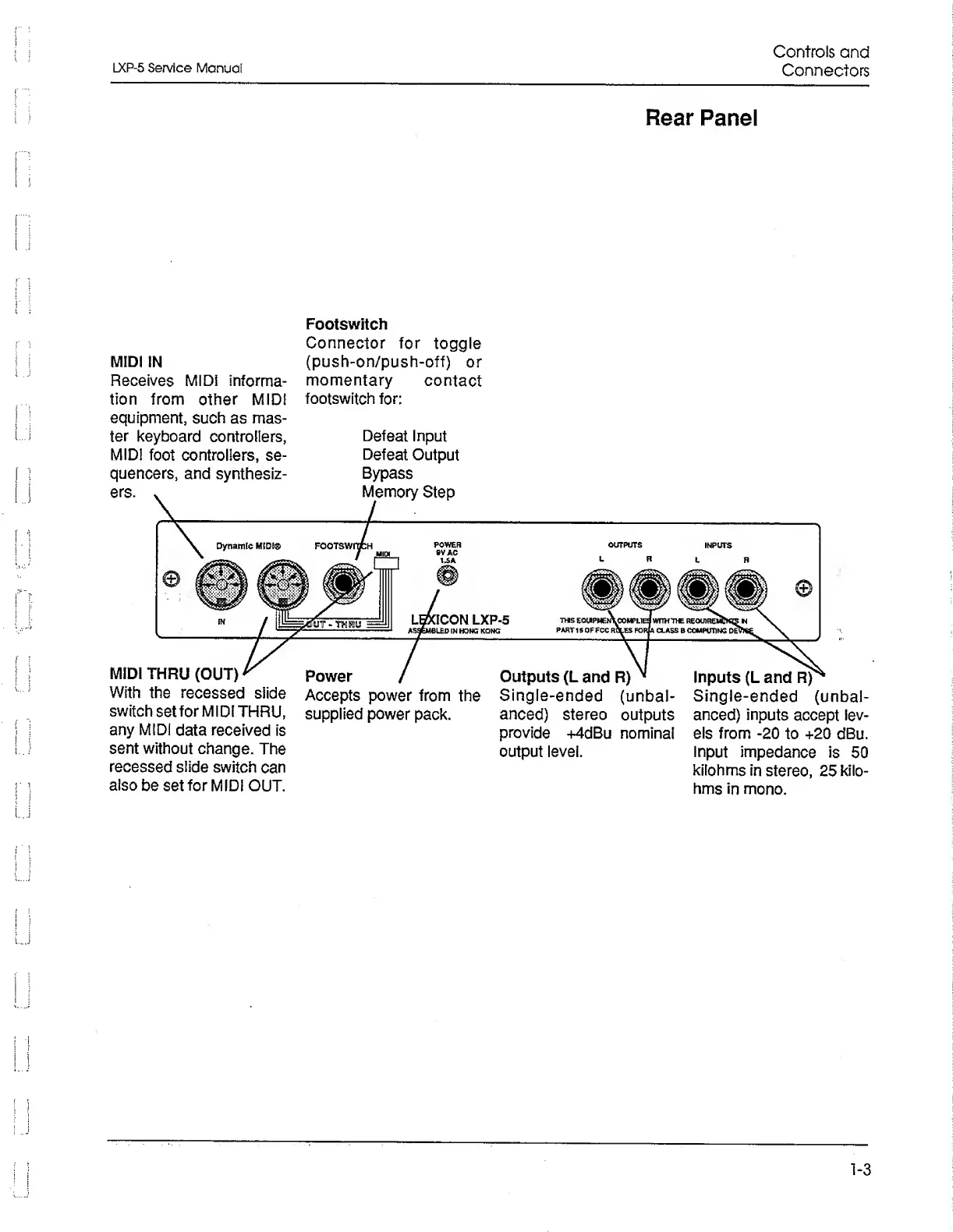

Rear Panel
MIDI IN
Receives MIDI informa¬
tion from other MIDI
equipment, such as mas¬
ter keyboard controllers,
MIDI foot controllers, se¬
quencers, and synthesiz¬
ers. v
Footswitch
Connector for toggle
(push-on/push-off) or
momentary contact
footswitch for:
Defeat Input
Defeat Output
Bypass
Memory Step
Dynamic MIDI® FOOTSWnfcH
m m
XICON LXP-5
UBLED IN BONG KONG
THS EOUiPMEN\COMPLlEa WITH Tht HEOOlRElCHffil
PARTI 5 OFFCC r\eS FORIA CLASS B COMPUTING DE&
MIDI THRU (OUT)
Power
Outputs (L and R)
Inputs (L and R)
With the recessed slide Accepts power from the Single-ended (unbal- Single-ended (unbal-
switch set for MI Dl THRU,
any MIDI data received is
sent without change. The
recessed slide switch can
also be set for MIDI OUT.
supplied power pack.
anced) stereo outputs
provide +4dBu nominal
output level.
anced) inputs accept lev¬
els from -20 to +20 dBu.
Input impedance is 50
kilohms in stereo, 25 kilo-
hms in mono.
1-3
