Lexicon LXP-5 Service Manual

Controls and
Connectors
Lexicon

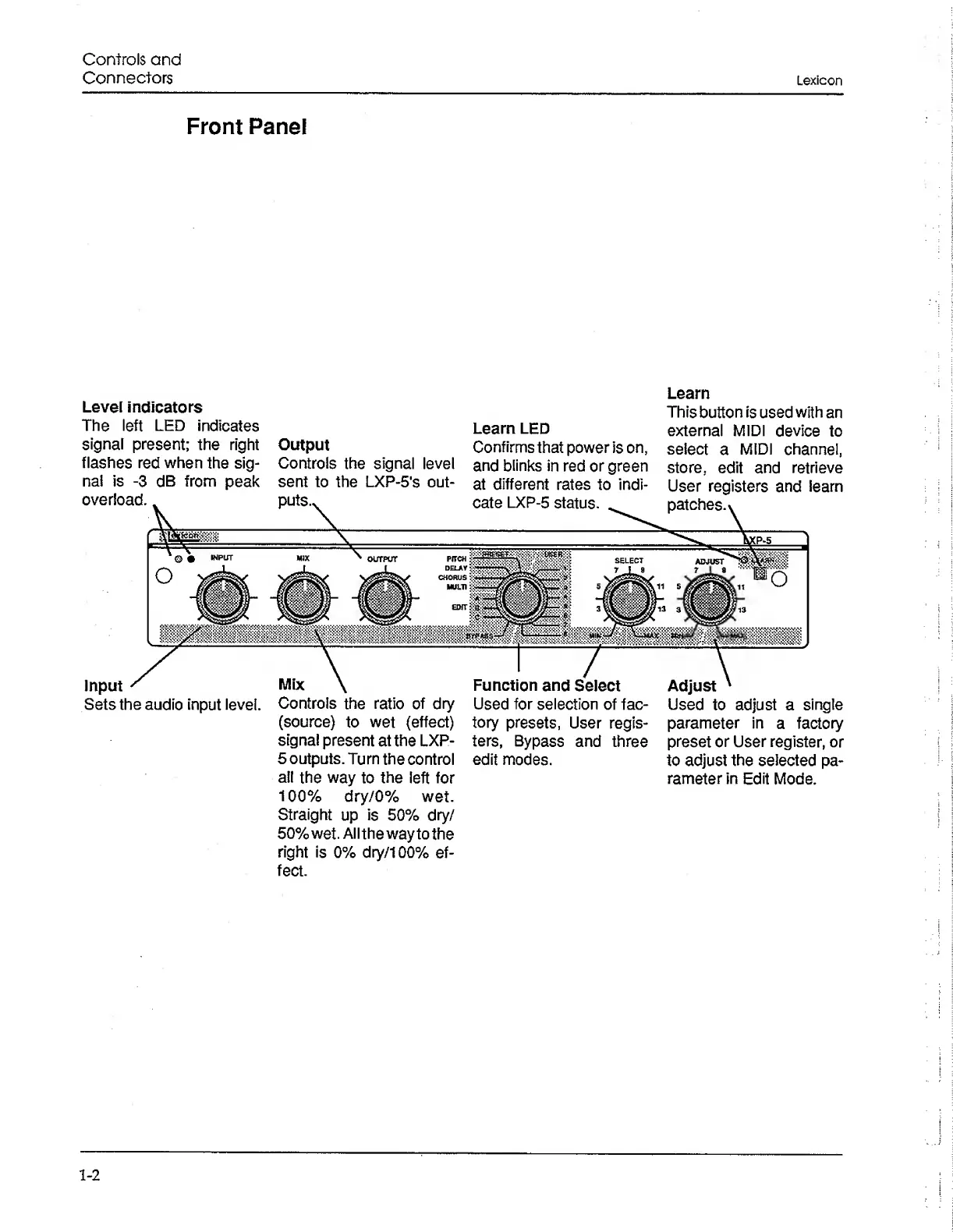

Front Panel
Level indicators
The left LED indicates
signal present; the right
flashes red when the sig¬
nal is -3 dB from peak
overload
Output
Controls the signal level
sent to the LXP-5's out¬
puts
Learn LED
Confirms that power is on,
and blinks in red or green
at different rates to indi¬
cate LXP-5 status.
Learn
This button is used with an
external MIDI device to
select a MIDI channel,
store, edit and retrieve
User registers and learn
patches.
Input
Sets the audio input level
Mix
Controls the ratio of dry
(source) to wet (effect)
signal present at the LXP-
5 outputs. Turn the control
ail the way to the left for
100% dry/0 % wet.
Straight up is 50% dry/
50% wet. Allthe way to the
right is 0% dry/100% ef¬
fect.
Function and Select
Used for selection of fac¬
tory presets, User regis¬
ters, Bypass and three
edit modes.
Adjust
Used to adjust a single
parameter in a factory
preset or User register, or
to adjust the selected pa¬
rameter in Edit Mode.
1-2
