Lexmark C510 - Paper Guide Assembly Removal

4-46 Service Manual
5021-0XX

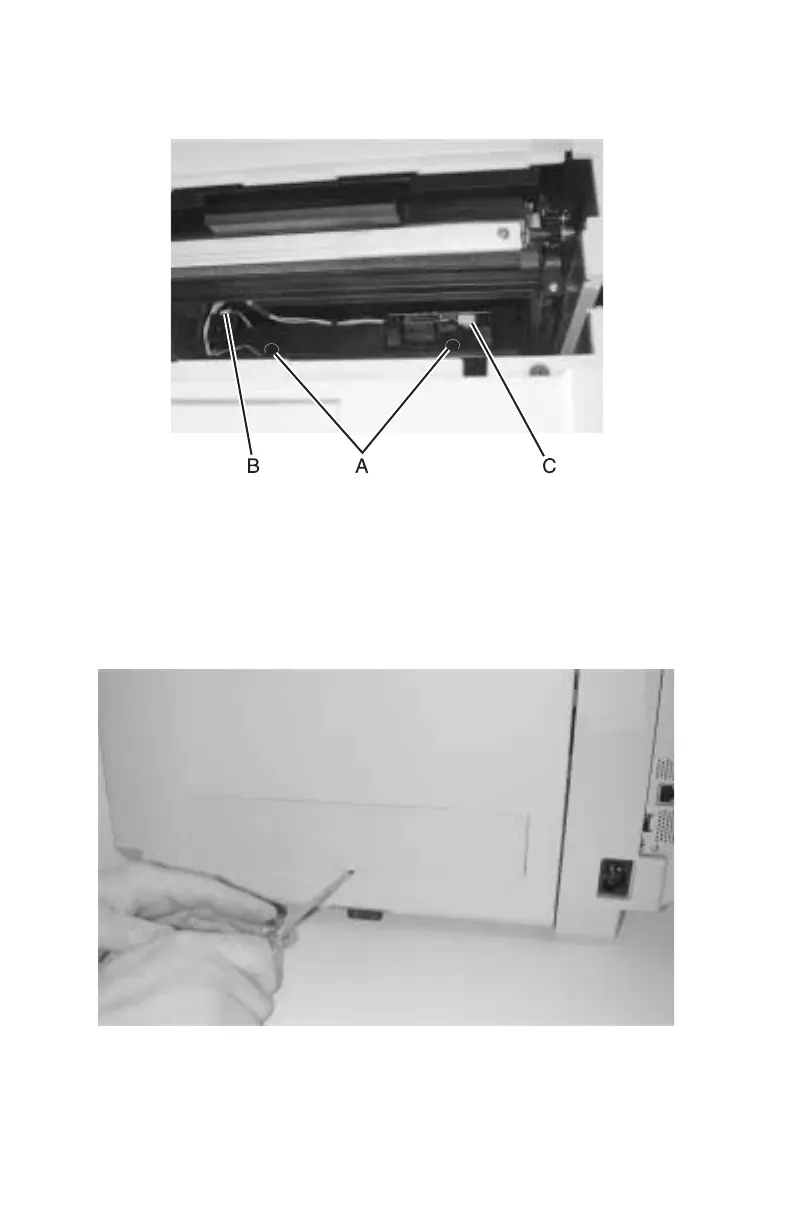

4. Disconnect connector (C) from toner density sensor.
5. Lift and remove bracket assembly.
Paper guide assembly removal
1. Remove duplex unit if attached. See “Duplex unit assembly
removal” on page 4-13.
2. Remove lower duplex cover from rear cover assembly.
