Cable 7 connector assignments
Cable 7 connector pin assignments

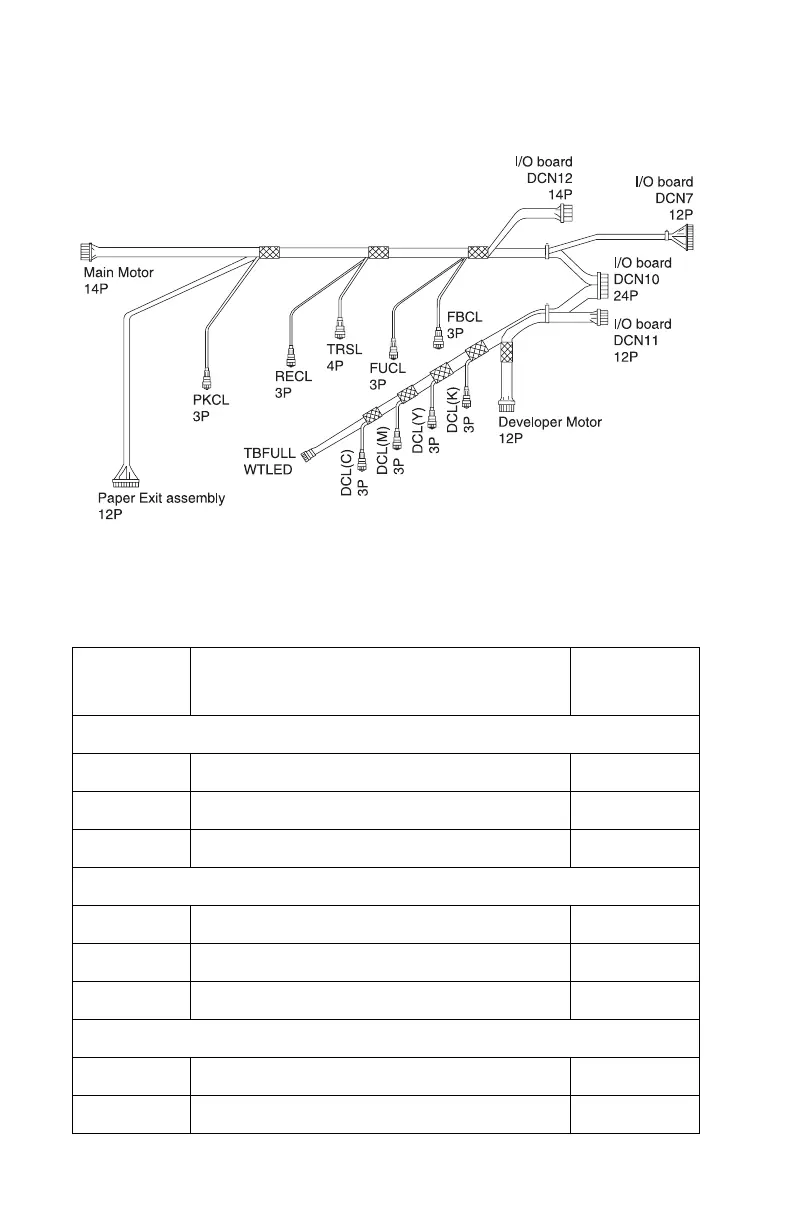

I/O board DCN7—Rear cover assembly
DCN7
Pin No.
Signal name Pin No.
Fuser exit sensor
1 +5V-S no number
2 PT2-N no number
3 SGND no number
4NC
5NC
6NC
Output tray full sensor
7 +5V-1 no number
8 PEFULL-N no number
