Warning—Potential Damage: System board electronic components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.

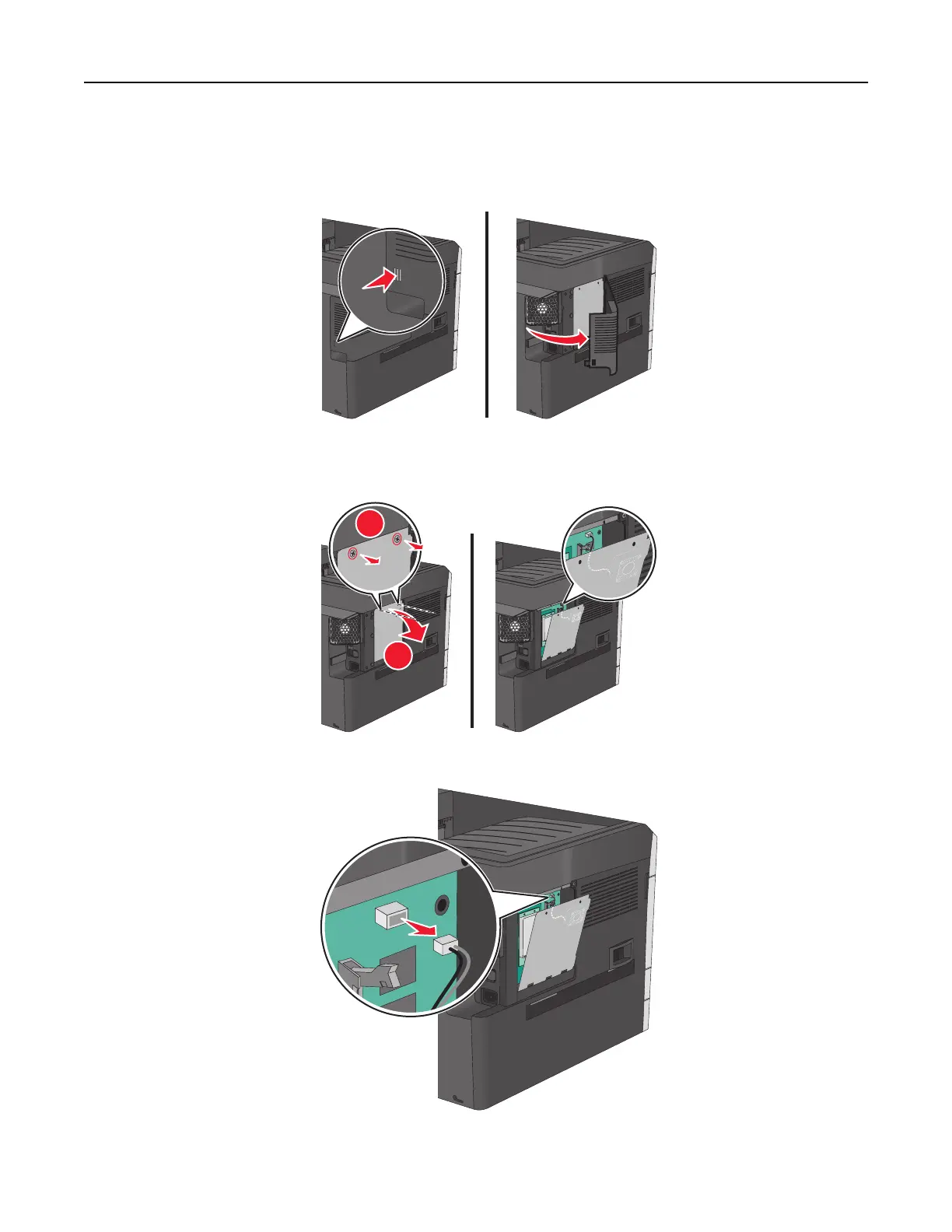

1 Remove the cover.
2 Turn the screws on the metal panel counterclockwise to remove them, and then pull the panel down.
Note: Remove the two screws emphasized in the illustration.
1
2
3 Unplug the fan cable from its connector on the system board.
Additional printer setup 27
