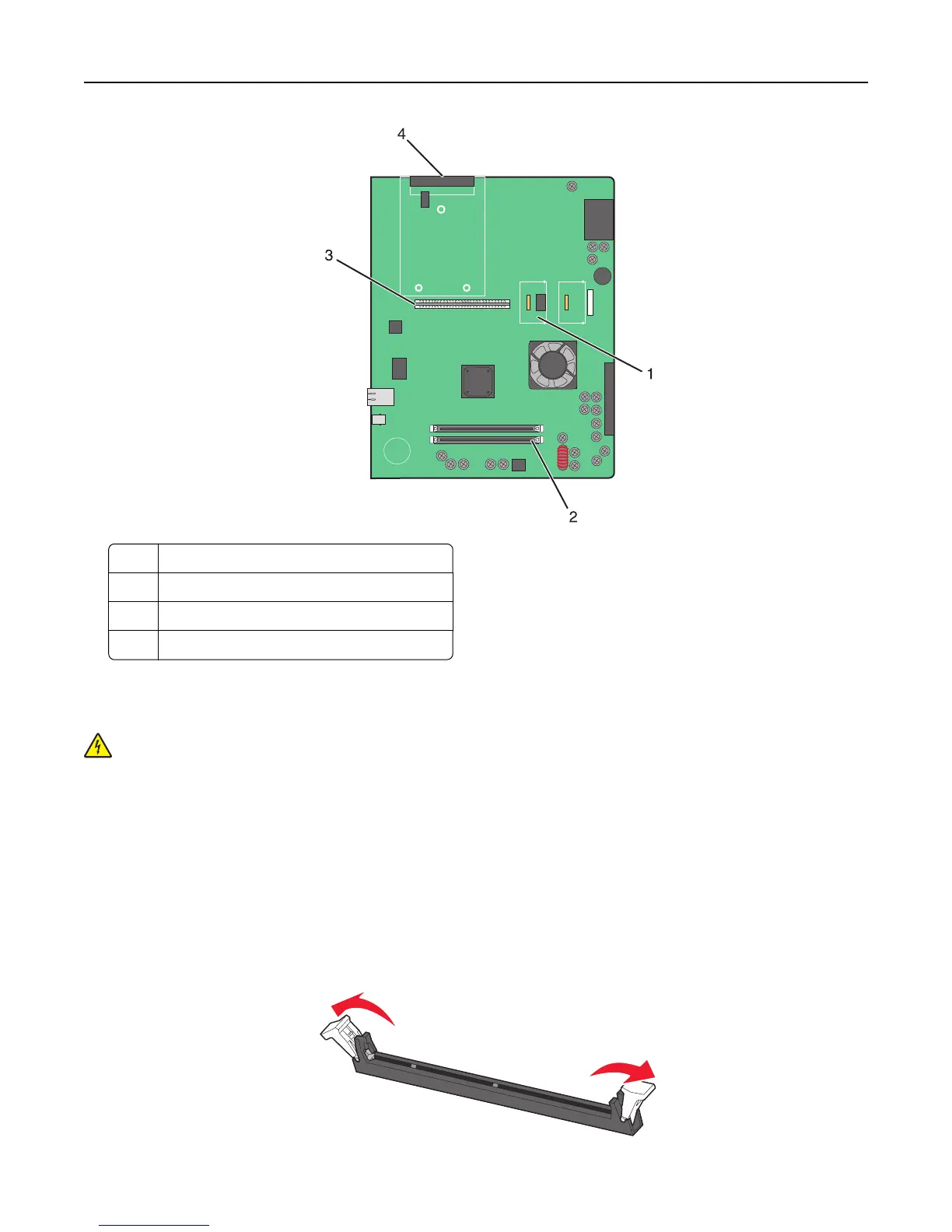

1 Firmware and flash memory card connectors
2 Memory card connector
3 Internal print server connector
4 Hard disk connector
Installing a memory card
CAUTION—SHOCK HAZARD: If you are installing a memory card after setting up the printer, turn the printer off,
and unplug the power cord from the wall outlet before continuing.
Warning—Potential Damage: System board electrical components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
An optional memory card can be purchased separately and attached to the system board. To install the memory card:
1 Access the system board.
2 Unpack the memory card.
Note: Avoid touching the connection points along the edge of the card.
3 Open the memory card connector latches.
Installing options 17
