Reinstalling the system board
Warning—Potential Damage: System board electrical components are easily damaged by static electricity. Touch
something metal on the printer before touching any system board electronic components or connectors.
Note: This operation requires a #2 Phillips screwdriver.

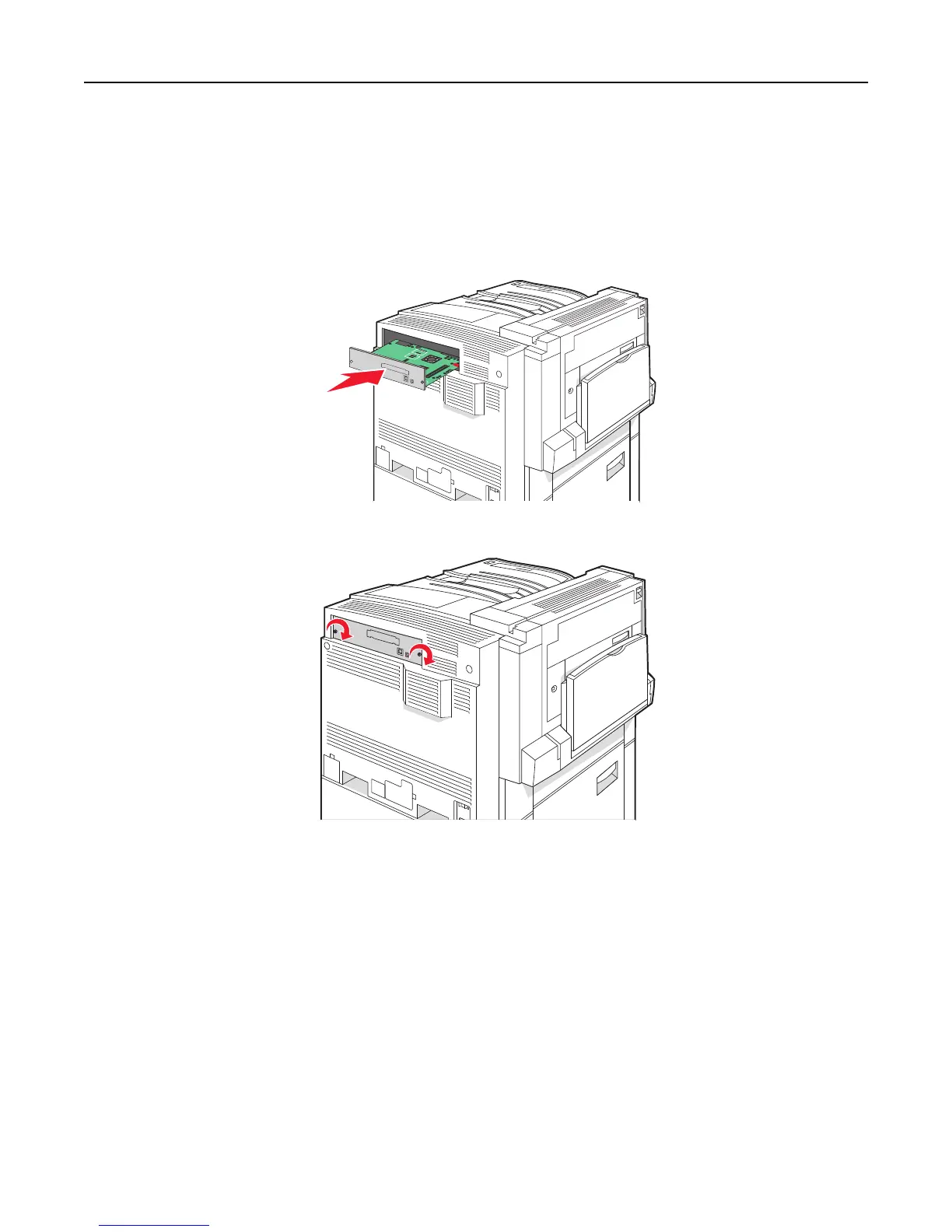

1 Gently insert the system board into the printer.
2 Replace the cover screws, and then turn them clockwise.
3 Tighten the screws firmly.
Attaching cables
Connect the printer to the computer using a USB cable or Ethernet cable. A USB port requires a USB cable. Be sure to
match the USB symbol on the cable with the USB symbol on the printer. Match the appropriate Ethernet cable to the
Ethernet port.
Installing options 23
