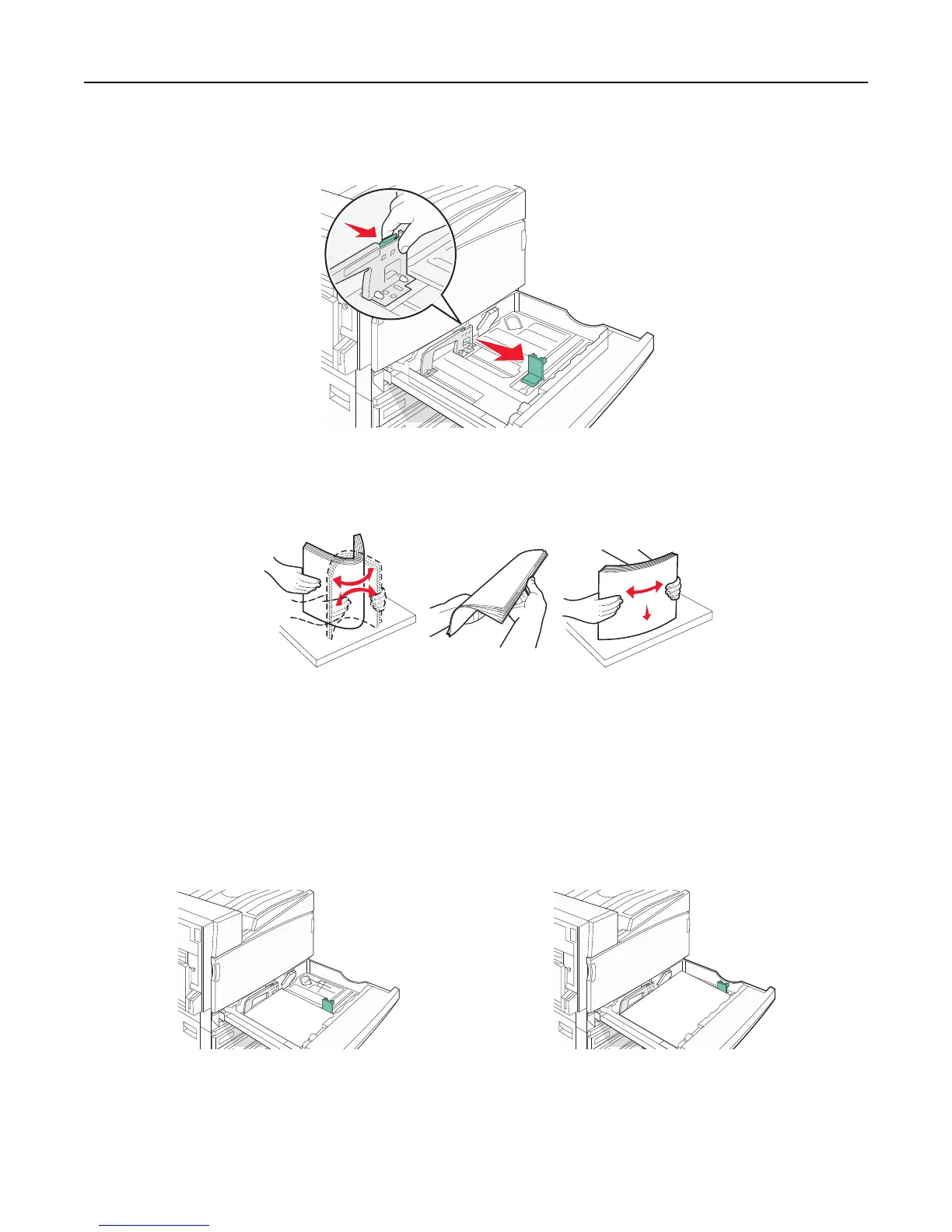

3 Squeeze the length guide tab inward as shown, and slide the guide to the correct position for the paper size being
loaded.
Note: Use the size indicators on the bottom of the tray to help position the guides.
4 Flex the sheets back and forth to loosen them, and then fan them. Do not fold or crease the paper. Straighten the
edges on a level surface.
5 Load the paper stack with the recommended print side faceup. Load the paper in either the long‑edge or short‑edge
orientation as shown below:
Notes:
• Load sizes larger than A4 in the short‑edge orientation.
• Paper must be loaded in the short‑edge orientation to create booklets if the optional booklet finisher is
installed.
Long‑edge orientation Short‑edge orientation
6 Make sure the paper guides are secure against the edges of the paper.
Loading paper and specialty media 28
