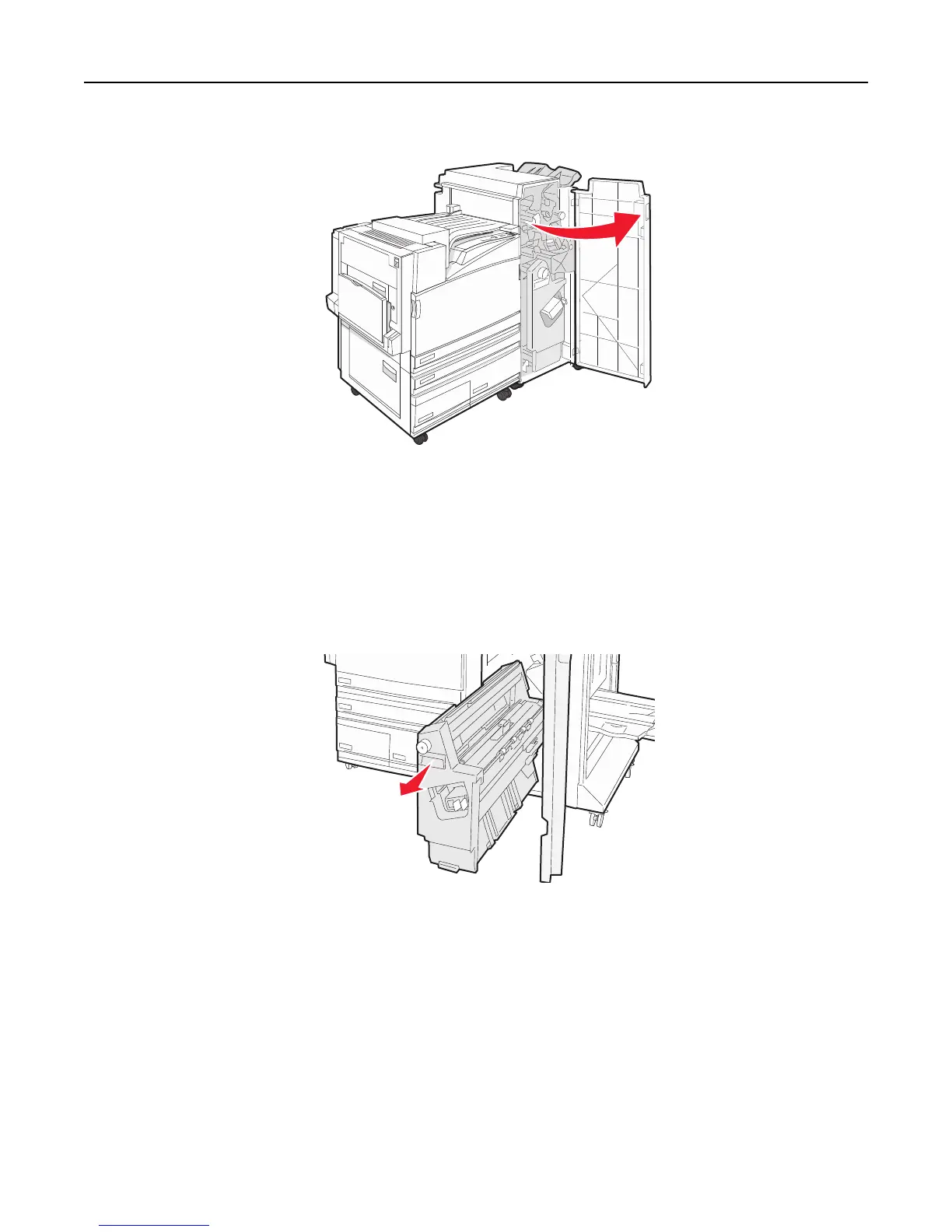

1 Open Door G.
2 Lift both Cover G1 levers, and then remove any jammed paper.
3 Move Cover G2 to the right, and then remove any jammed paper.
Note: If the paper is jammed in the rollers, rotate Knob G3 counterclockwise.
4 Move Cover G4 down, and then remove any jammed paper.
5 Move Cover G7 to the left, and then remove any jammed paper.
6 Pull Handle G9 until the tray is completely open.
Clearing jams 67
