1 Printer control panel
2 Standard bin
3 250-sheet tray (Tray 1)
4 Manual feeder
5 Optional 650-sheet duo tray with integrated multipurpose feeder (Tray 2)

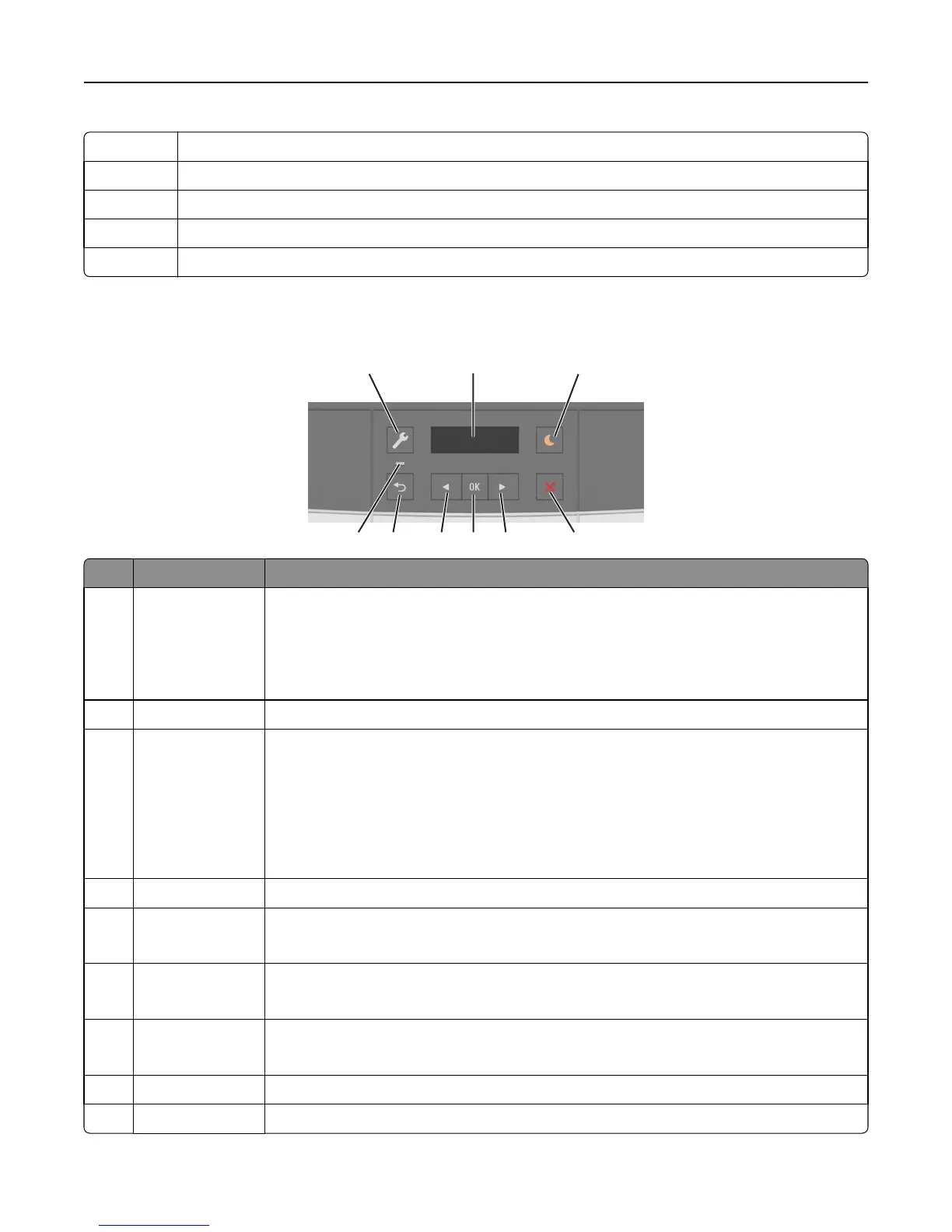

Using the printer control panel
21 3
8
7
49
6 5
Use the To
1 Menus button Open the menus.
Notes:
• The menus are available only when the printer is in Ready state.
• Pressing the button while in a menu item lets you return to the top level menu screen.
2 Display View printing options as well as status and error messages.
3 Sleep button Enable Sleep mode or Hibernate mode.
Notes:
• Pressing any hard button, sending a print job, or performing a power on reset with the
main power switch wakes the printer from Sleep mode.
• Pressing the Sleep button or performing a power on reset with the main power switch
wakes the printer from Hibernate mode.
4 Stop button Stop printer activity.
5 Right arrow button
• Scroll through menus or move between screens and menu options.
• Increase the numeric value of an option or setting being displayed.
6 Select button
• Select menu options.
• Save settings.
7 Left arrow button
• Scroll through menus or move between screens and menu options.
• Decrease the numeric value of an option or setting being displayed.
8 Back button Return to the previous screen.
9 Indicator light Determine the status of the printer.
Learning about the printer 10
