6

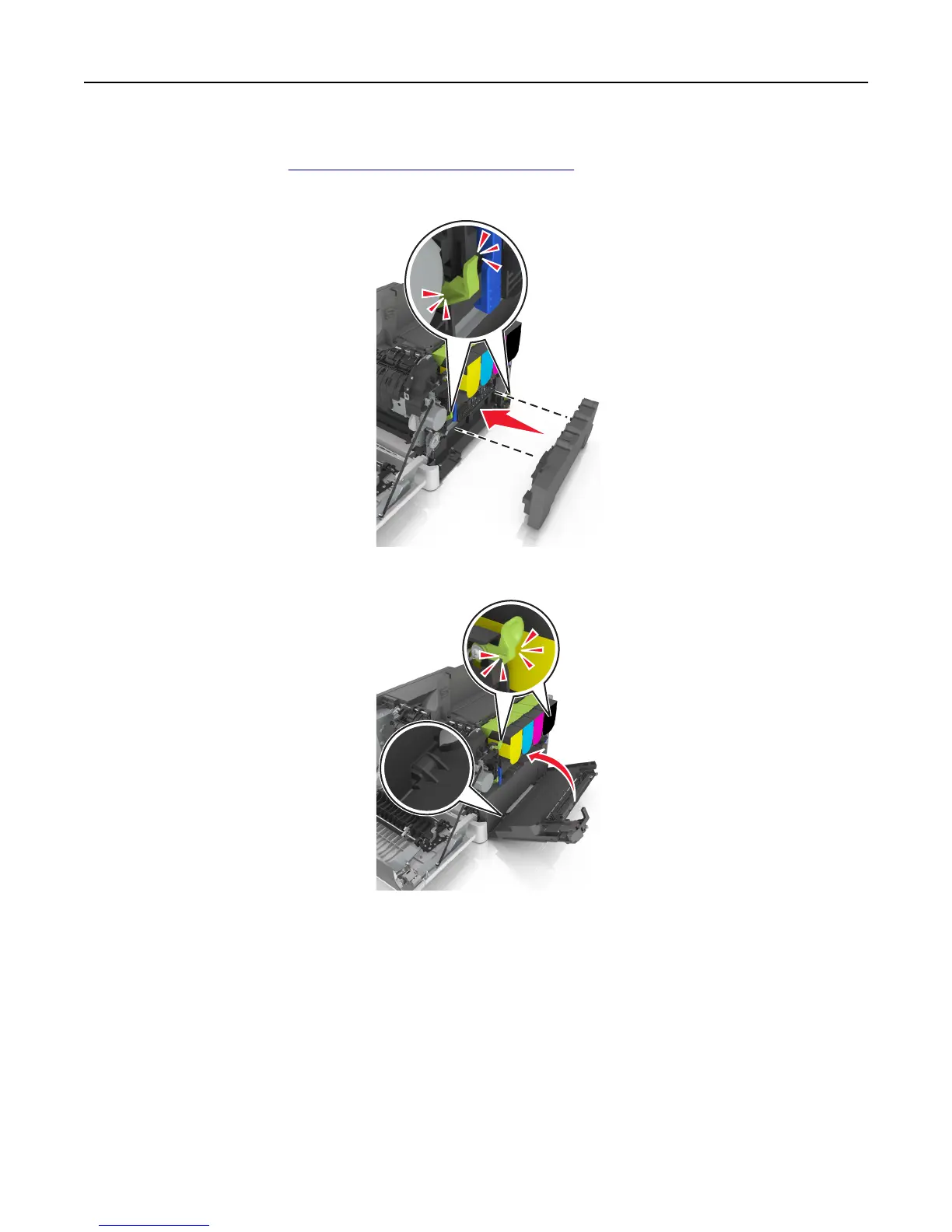

Seal the used waste tone
r bottle in the enclosed packaging.
For more i
nformatio
n, see
“Recycling Lexmark prod
ucts” on page
123
.
7
Insert the re
placement waste toner bottle.
8
Insert th
e right si
de cov
er.
Maintai
ning the pr
inter
135
