Drive
Main drive motor assembly
The main drive motor is a DC motor that drives the print cartridge, aligner, MFP and fuser.
Redrive motor assembly
The redrive motor assembly is a DC motor that drives the redrive assembly that transports the media into the
standard bin or output option.

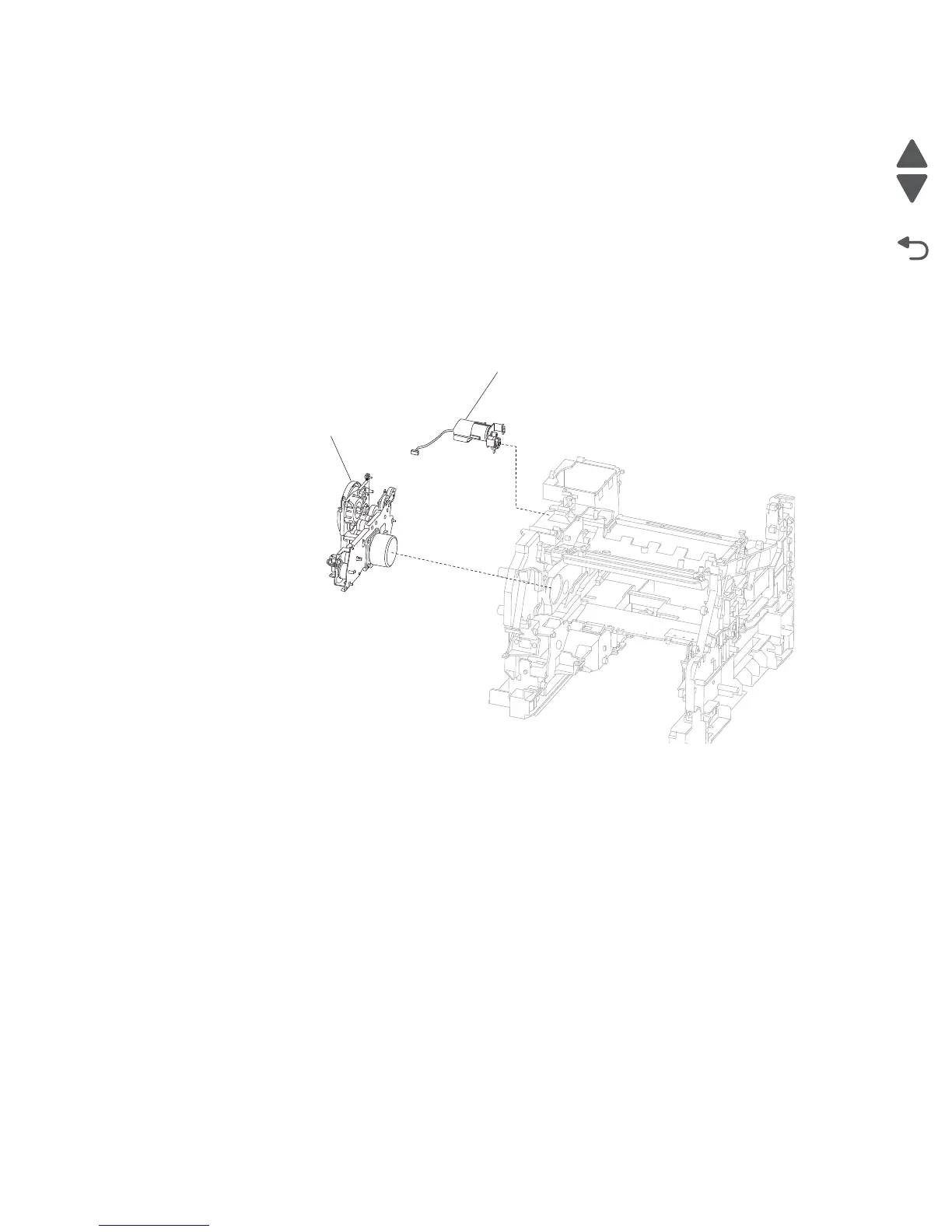

Redrive motor
assembly
Main drive
motor assembly
