Lexmark T656dne - Side Cover, Right Removal (T652, T654, T656)

Repair Information 4-67
4062-XXX
Go Back
Previous
Next
4. Remove the five screws (A) securing the side cover, right to the machine.
5. Remove the side cover, right.

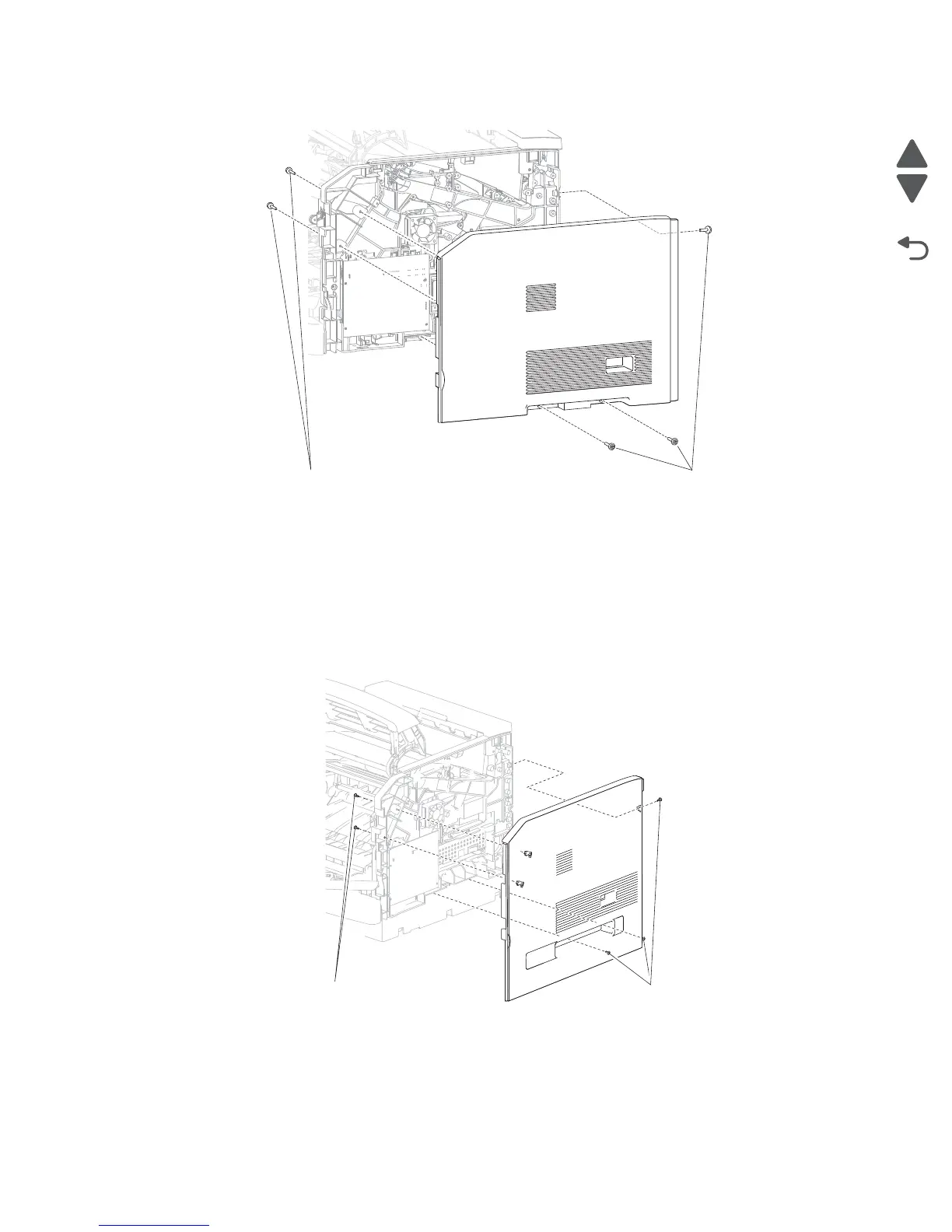

Side cover, right removal (T652, T654, T656)
1. Open the operator panel door assembly.
2. Open the MPF tray door assembly.
3. Remove the cover assembly, rear lower. Go to “Cover assembly, rear lower (T652, T654)” on page 4-12.
4. Remove the five screws (A) securing the side cover, right to the machine.
5. Remove the side cover, right.
A A
A A
