4-66 Service Manual
4062-XXX
Side cover, left removal (T652, T654, T656)
1. Open the MPF tray door assembly.
2. Open the operator panel door assembly.
3. Remove the cover assembly, rear lower. Go to “Cover assembly, rear lower removal (T650)” on
page 4-12 or “Cover assembly, rear lower (T652, T654)” on page 4-12.

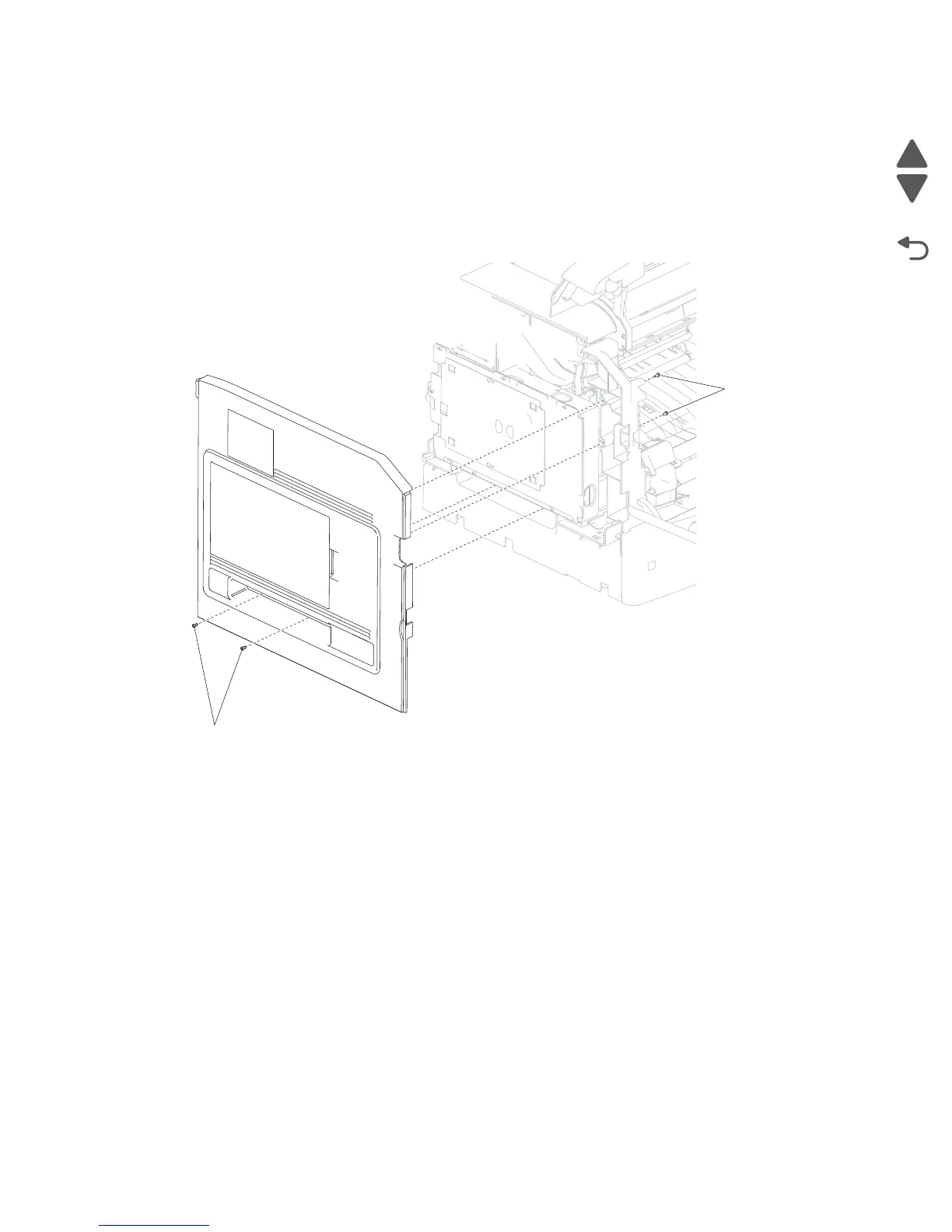

4. Remove the four screws (A) securing the side cover, left to the machine.
5. Swing the side cover, left away from the machine.
6. Remove the side cover, left.
Side cover, right removal (T650)
1. Open the operator panel door assembly.
2. Open the MPF tray door assembly.
3. Remove the cover assembly, rear lower. Go to “Cover assembly, rear lower removal (T650)” on
page 4-12.
