Printhead assembly removal (T650)
Note: When replacing the printhead assembly, ensure that the printhead is properly calibrated, or print quality
issues will occur. Go to “Alignment assembly adjustment” on page 4-4.
1. Remove the laser cover. Go to “Laser cover removal” on page 4-26.

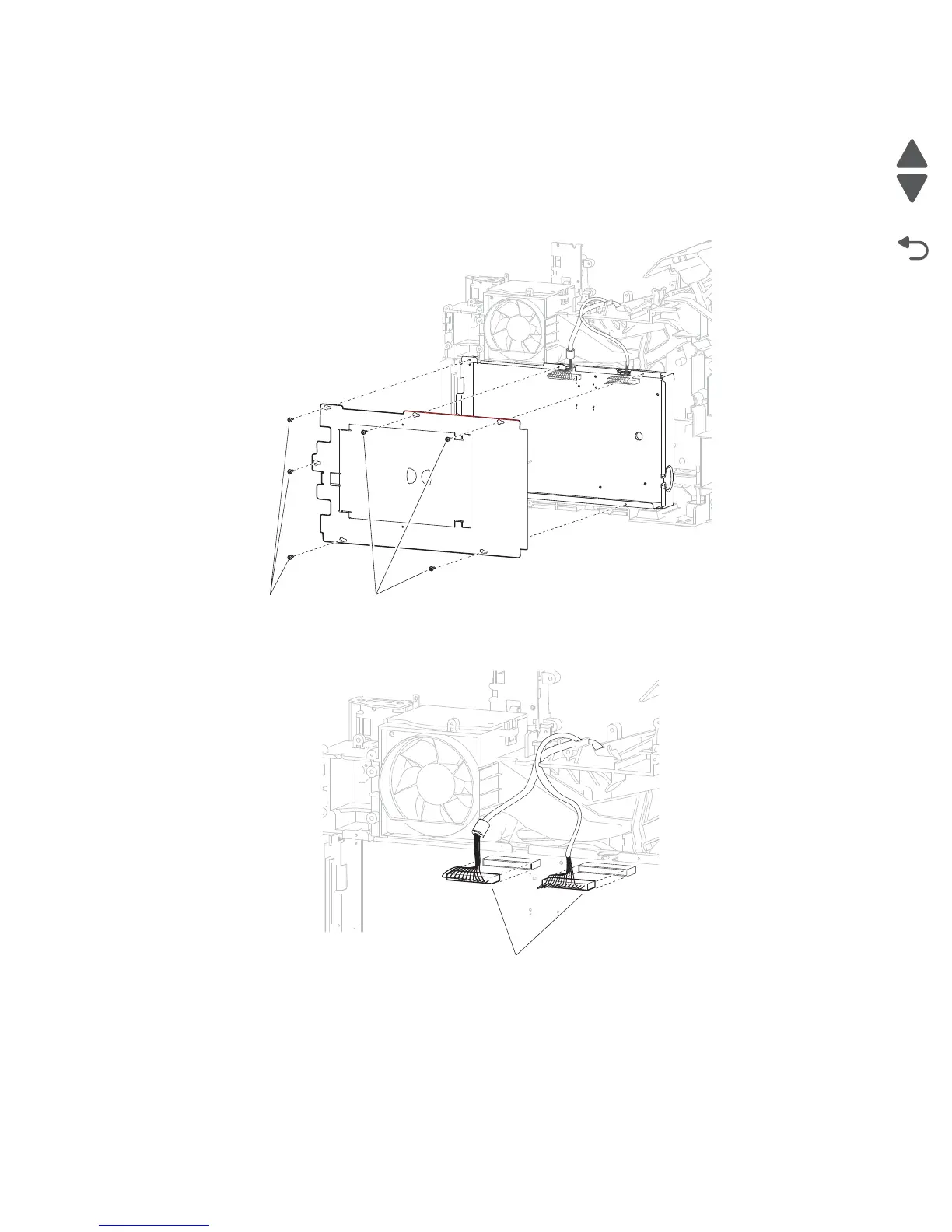

2. Remove the six screws (A) securing the metal cover to the machine.
3. Remove the metal cover.
4. Disconnect the connections (B) from the printhead assembly.
A
A
B
