Connection bezel assembly, rear removal (T652, T654)
1. Remove the side cover, left. Go to “Side cover, left removal (T652, T654, T656)” on page 4-66.
2. Remove the cover assembly, rear lower. Go to “Cover assembly, rear lower (T652, T654)” on page 4-12.

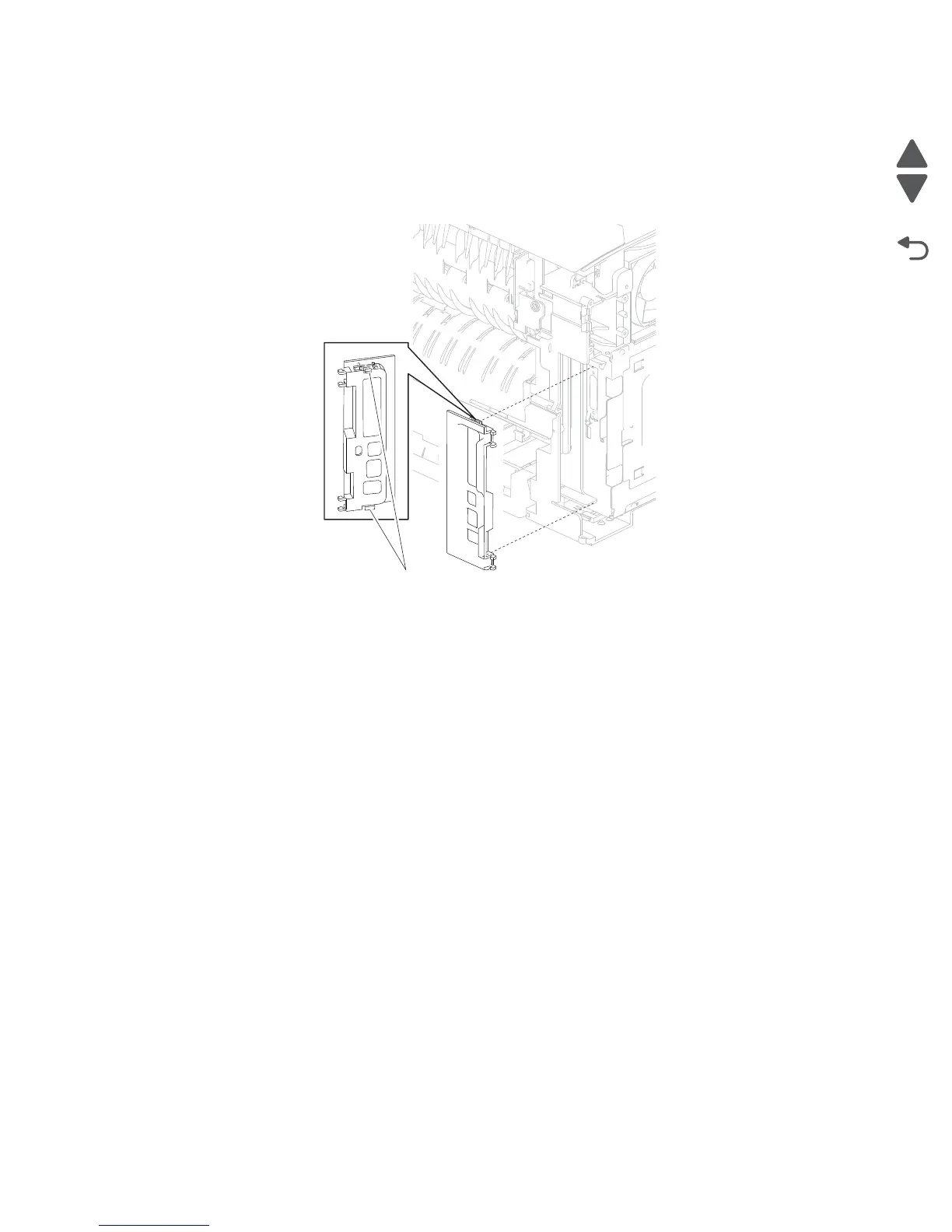

3. Release the two hooks (A) securing the connection bezel assembly, rear to the machine.
4. Remove the connection bezel assembly, rear.
A
