4-72 Service Manual
4062-XXX

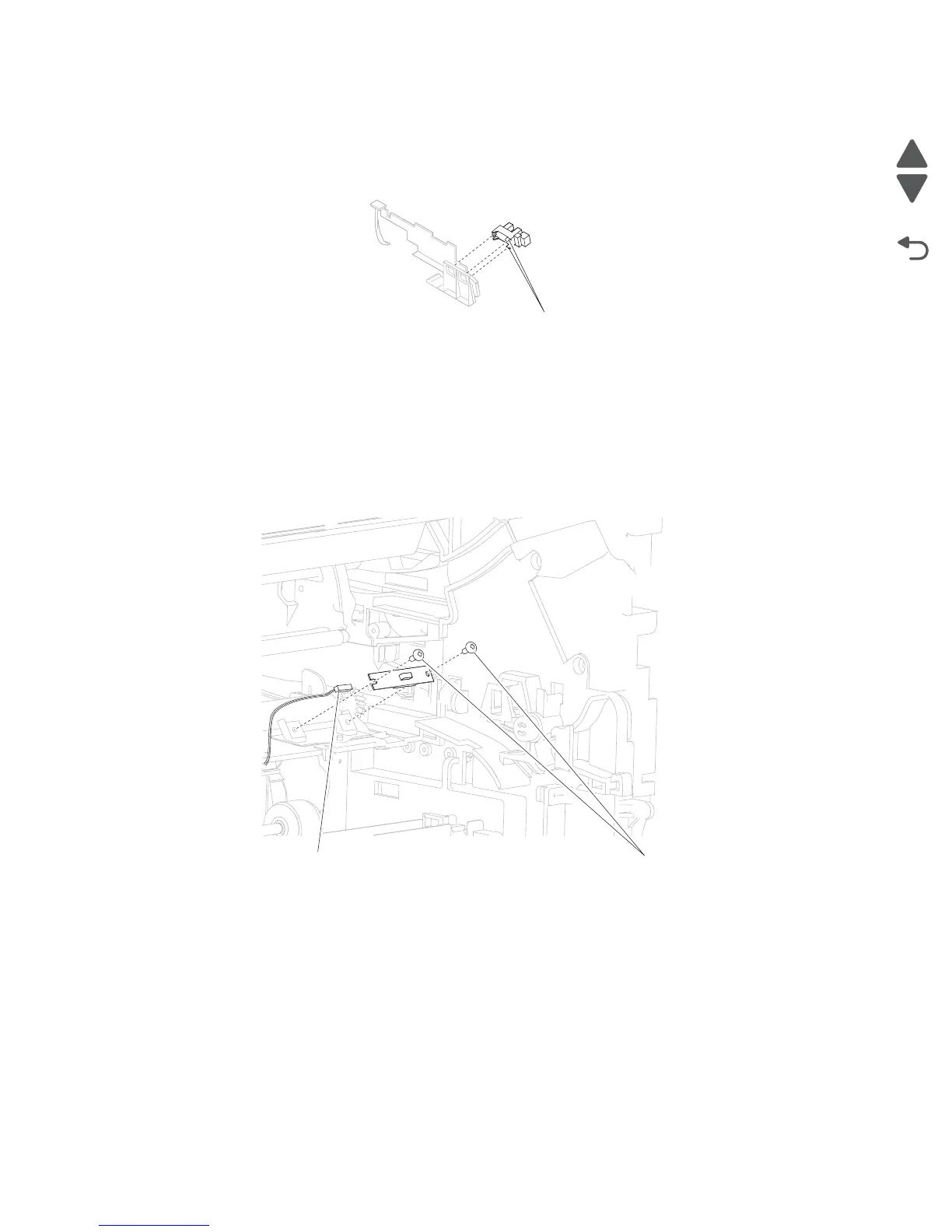

Sensor (standard bin exit) removal
1. Remove standard bin actuator assembly. Go to “Sensor (standard bin exit) removal” on page 4-72.
2. Release the hooks (A) securing the sensor (standard bin exit) to the assembly.
3. Remove the sensor (standard bin exit).
Sensor (toner density) removal
1. Remove the sensor shield assembly. Go to “Sensor shield assembly removal” on page 4-71.
2. Remove the two screws (A) securing the sensor (toner density) to the machine.
3. Remove the sensor (toner density).
4. Disconnect the connection (B) to the sensor (toner density).
Standard bin actuator assembly removal
1. Remove the laser cover. Go to “Laser cover removal” on page 4-26.
2. Disconnect the connection (A) from the standard bin actuator assembly.
To Next Page
