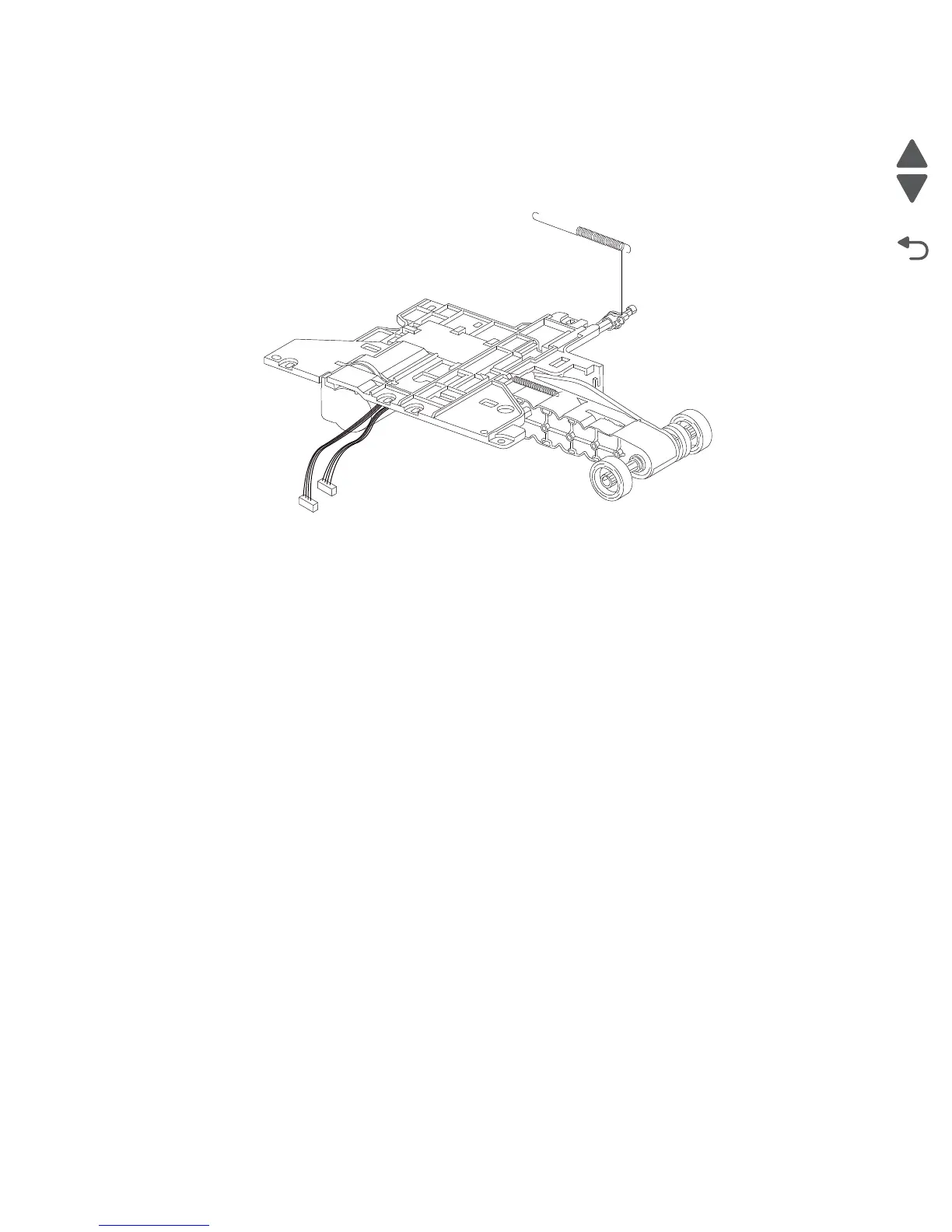

550-sheet bellcrank recoil spring removal
1. Remove the 550-sheet pick arm bracket assembly. Go to “550-sheet pick arm bracket assembly
removal” on page 4-108.
2. Remove the 550-sheet bellcrank recoil spring from the 550-sheet pick arm bracket assembly.
