High capacity input tray (HCIT) cover, rear removal
1. Remove the HCIT media tray assembly. Go to “High capacity input tray (HCIT) media tray assembly
removal” on page 4-115.

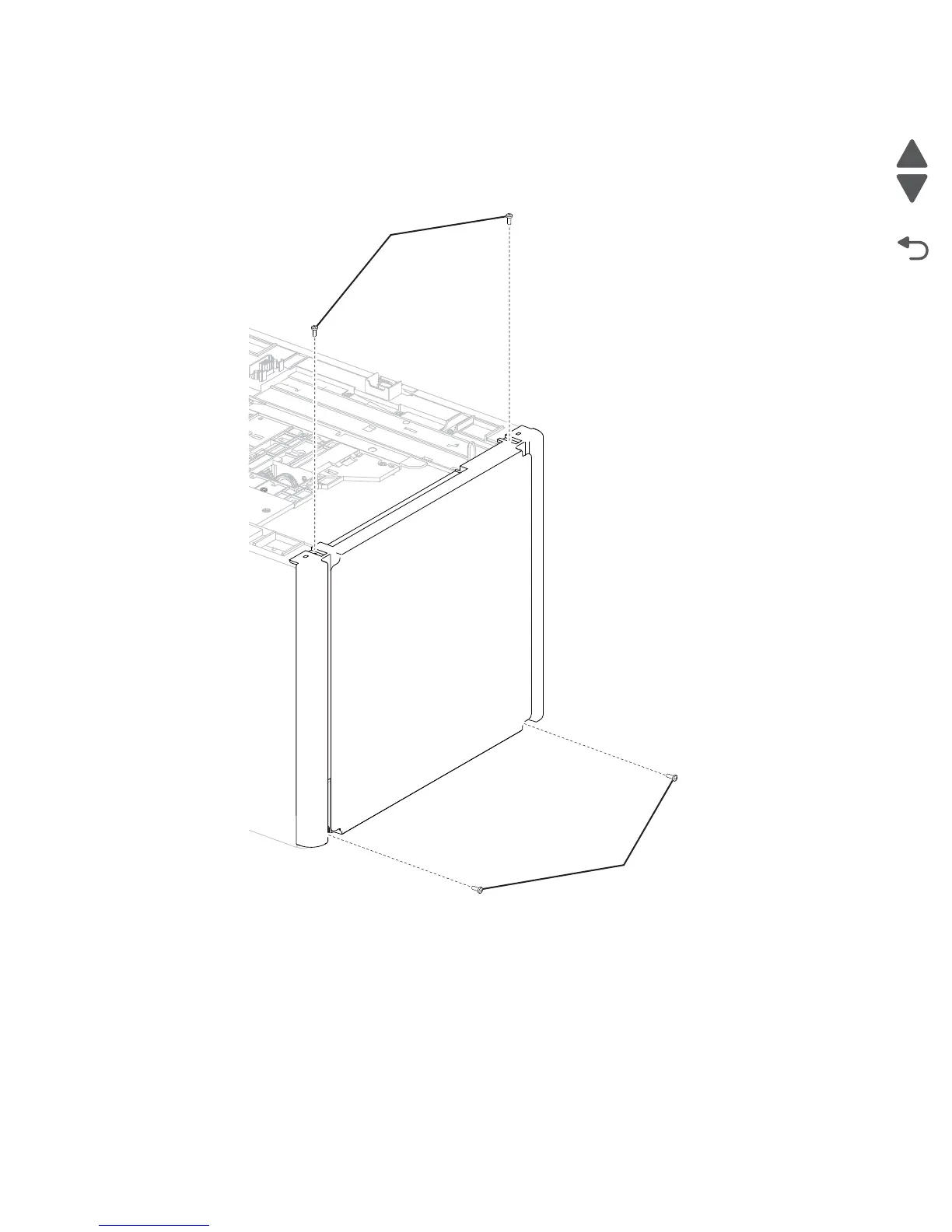

2. Remove the four screws (A) securing the HCIT cover, rear to the drawer.
A
A
