SFP stapler assembly sensor (bin full send) removal
1. Remove the stapler/stacker controller card assembly. Go to “Stapler/stacker controller card assembly
removal” on page 4-193.

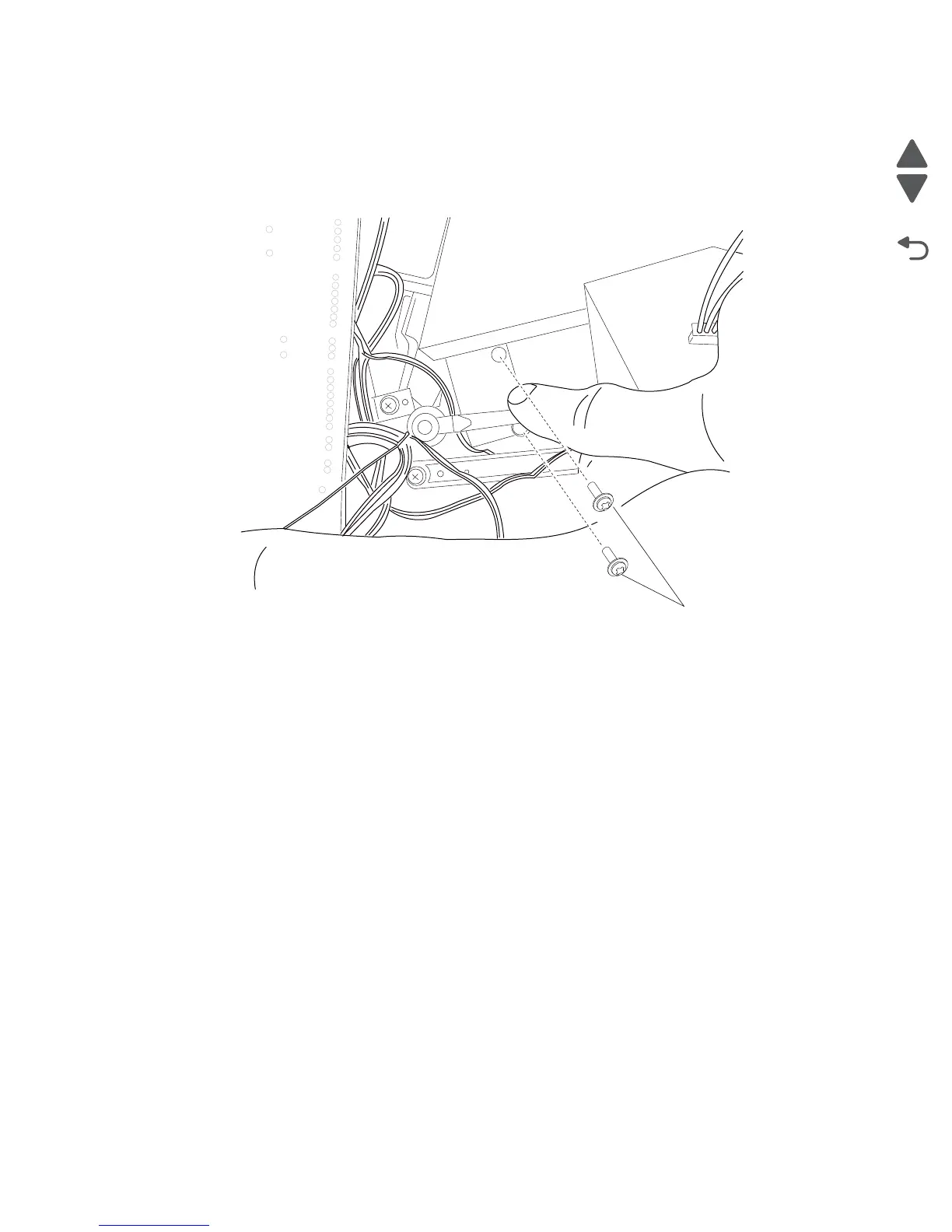

2. Remove the two screws (A) securing the staple finisher sensor (bin full send).
3. Disconnect the harness and remove.
A
