5-bin mailbox media bin full actuator removal
1. Remove the 5-bin mailbox left inner cover. Go to “5-bin mailbox left inner cover removal” on page 4-85.

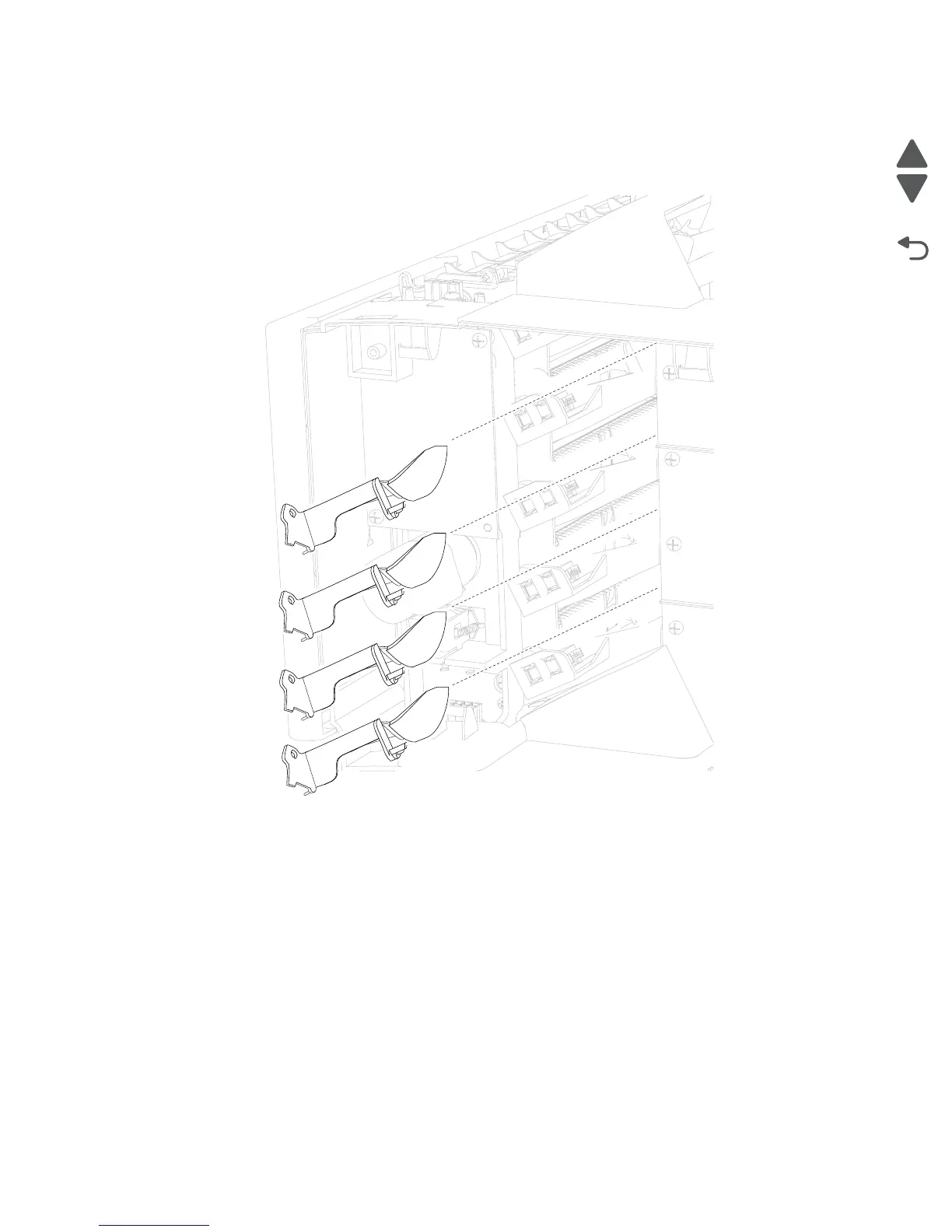

2. Grasp the media bin full actuator and pull the pins from the bosses.
