4-48 Service Manual
4062-XXX
Operator panel door assembly removal (T656)
Warning: When replacing any of the following components:
• Operator panel assembly
• System card assembly
Only replace one component at a time. Replace the required component and perform a POR before replacing a second
component listed above. If this procedure is not followed, the printer will be rendered inoperable. Never replace two or more
of the components listed above without a POR after installing each one or the printer will be rendered inoperable.
Never install and remove components listed above as a method of troubleshooting components. Once a component has
been installed in a machine, it can not be used in another machine. It must be returned to the manufacturer.
1. Remove the laser cover. See “Laser cover removal” on page 4-26.

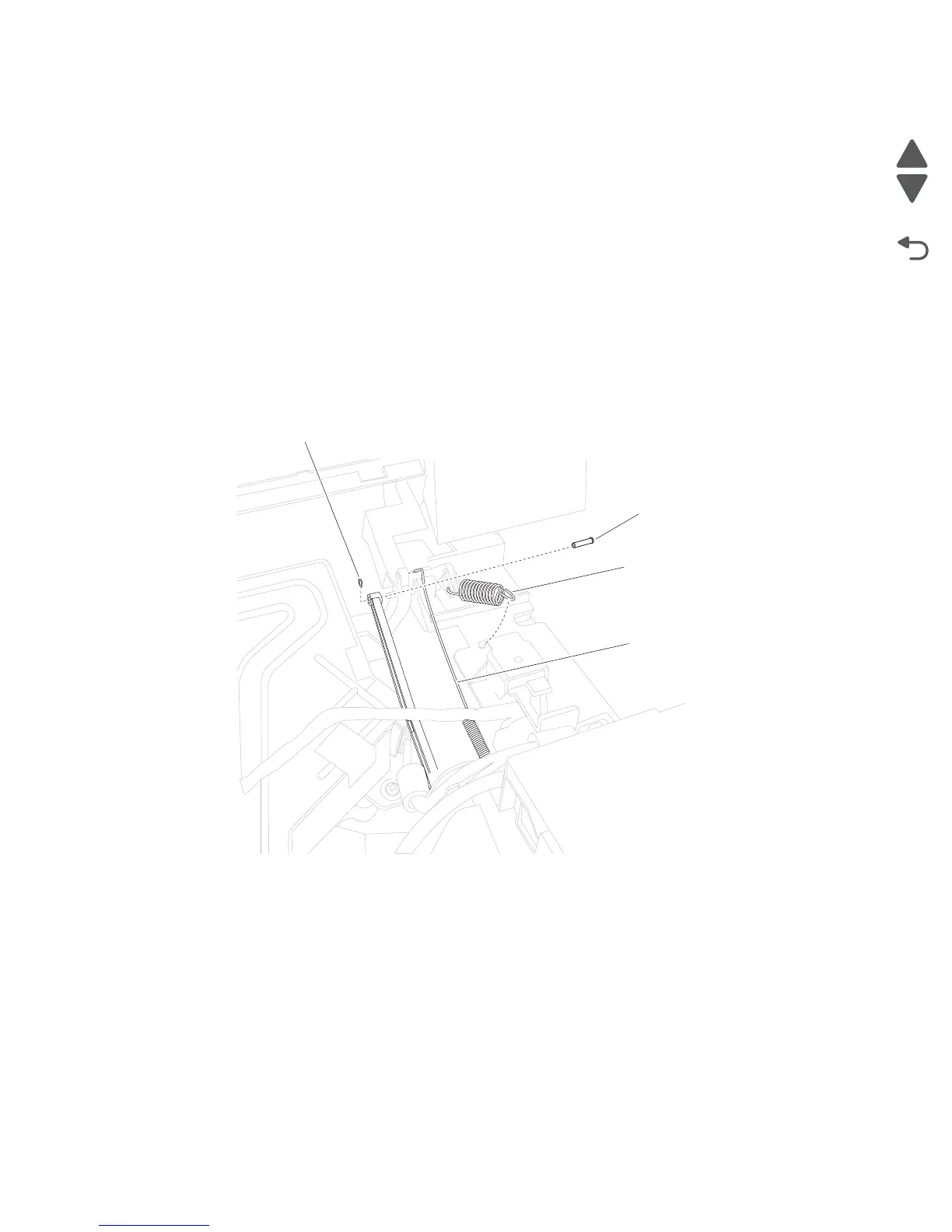

2. Remove the counter balance springs (A) on both sides.
3. Remove the print cartridge cover springs (B) on both sides.
4. Remove the E-clips (C) on both sides securing the links to the hinges, and remove the links.
5. Remove the pins (D) on both sides securing the links.
