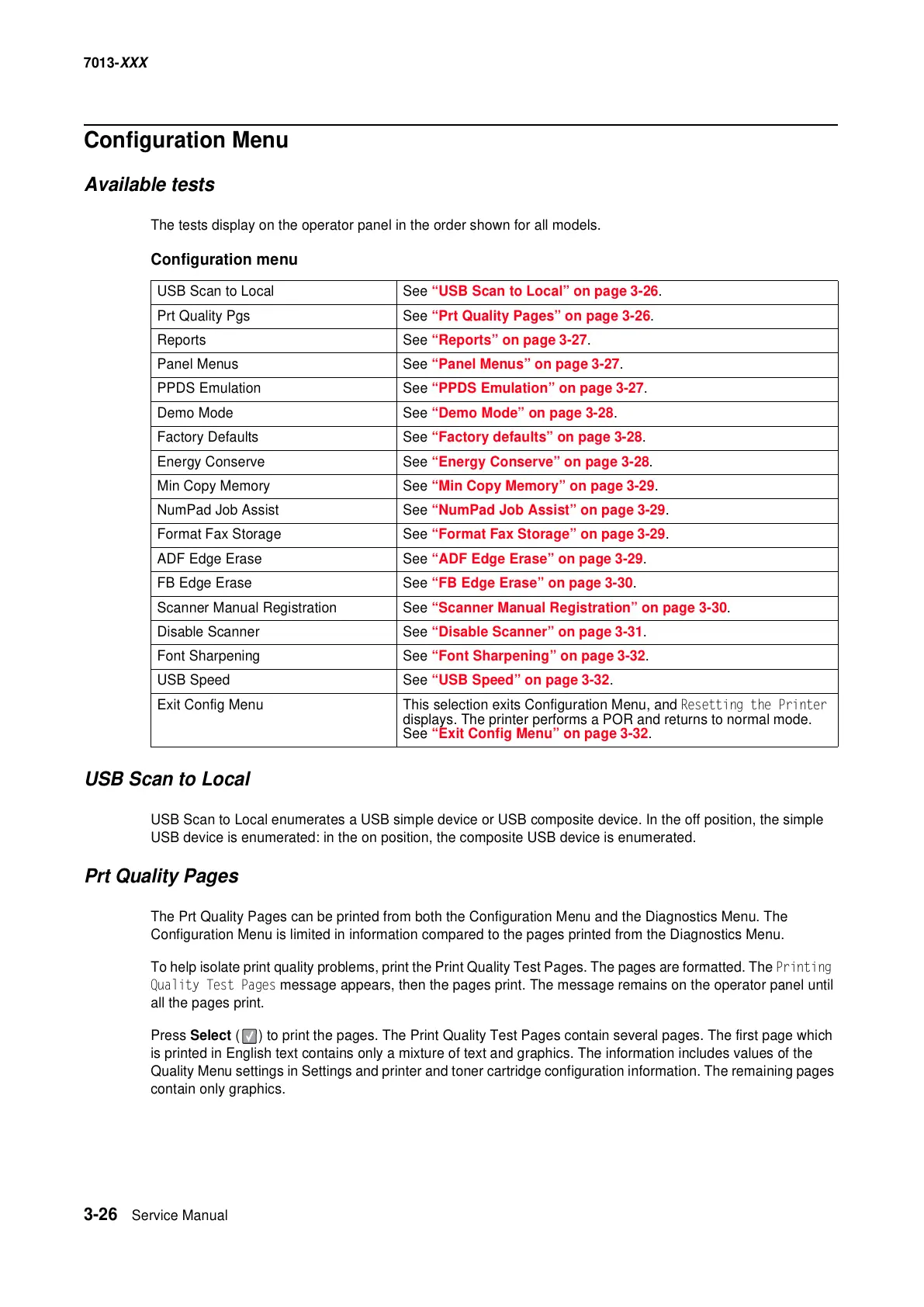

Lexmark X264dn Service Manual

3-26 Service Manual
7013-XXX
Configuration Menu
Available tests
The tests display on the operator panel in the order shown for all models.
USB Scan to Local
USB Scan to Local enumerates a USB simple device or USB composite device. In the off position, the simple
USB device is enumerated: in the on position, the composite USB device is enumerated.
Prt Quality Pages
The Prt Quality Pages can be printed from both the Configuration Menu and the Diagnostics Menu. The
Configuration Menu is limited in information compared to the pages printed from the Diagnostics Menu.
To help isolate print quality problems, print the Print Quality Test Pages. The pages are formatted. The Printing
Quality Test Pages message appears, then the pages print. The message remains on the operator panel until
all the pages print.
Press Select ( ) to print the pages. The Print Quality Test Pages contain several pages. The first page which
is printed in English text contains only a mixture of text and graphics. The information includes values of the
Quality Menu settings in Settings and printer and toner cartridge configuration information. The remaining pages
contain only graphics.
Configuration menu
USB Scan to Local See “USB Scan to Local” on page 3-26.
Prt Quality Pgs See “Prt Quality Pages” on page 3-26.
Reports See “Reports” on page 3-27.
Panel Menus See “Panel Menus” on page 3-27.
PPDS Emulation See “PPDS Emulation” on page 3-27.
Demo Mode See “Demo Mode” on page 3-28.
Factory Defaults See “Factory defaults” on page 3-28.
Energy Conserve See “Energy Conserve” on page 3-28.
Min Copy Memory See “Min Copy Memory” on page 3-29.
NumPad Job Assist See “NumPad Job Assist” on page 3-29.
Format Fax Storage See “Format Fax Storage” on page 3-29.
ADF Edge Erase See “ADF Edge Erase” on page 3-29.
FB Edge Erase See “FB Edge Erase” on page 3-30.
Scanner Manual Registration See “Scanner Manual Registration” on page 3-30.
Disable Scanner See “Disable Scanner” on page 3-31.
Font Sharpening See “Font Sharpening” on page 3-32.
USB Speed See “USB Speed” on page 3-32.
Exit Config Menu This selection exits Configuration Menu, and Resetting the Printer
displays. The printer performs a POR and returns to normal mode.
See “Exit Config Menu” on page 3-32.
