Repair information 4-33
7013-XXX

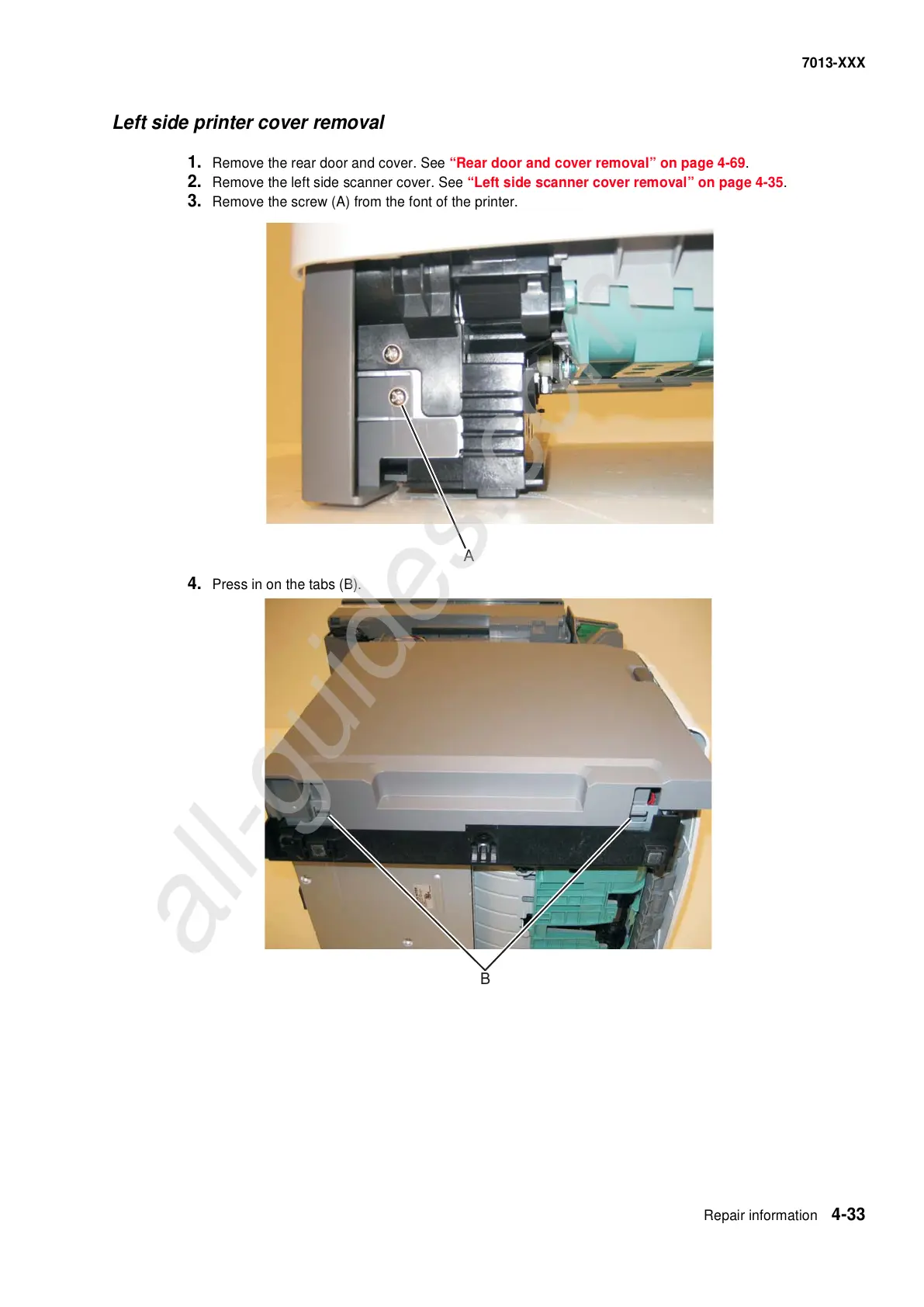

Left side printer cover removal
1. Remove the rear door and cover. See “Rear door and cover removal” on page 4-69.
2. Remove the left side scanner cover. See “Left side scanner cover removal” on page 4-35.
3. Remove the screw (A) from the font of the printer.
4. Press in on the tabs (B).
A
B
