Lexmark X264dn - Rear View

4-80 Service Manual
7013-XXX

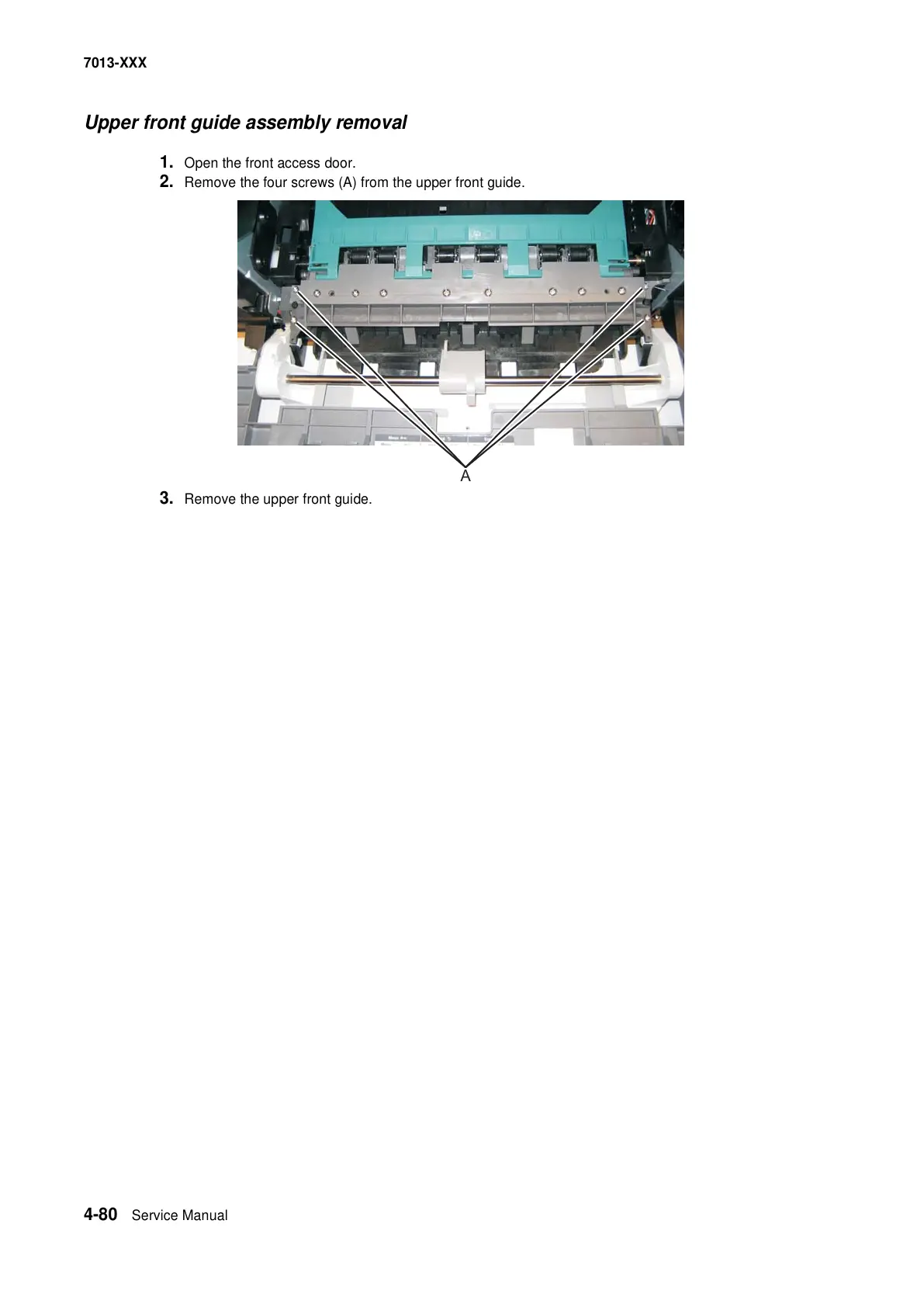

Upper front guide assembly removal
1. Open the front access door.
2. Remove the four screws (A) from the upper front guide.
3. Remove the upper front guide.
A
